爱泽工业2021年12月部分到货产品专题及库存——COSMO篇
2021-12-17 16:40:50 来源:上海爱泽工业设备有限公司COSMO漏孔LM-1C -89kpa 0.20ml/min
COSMO漏孔LM-1C 800kpa 1.32ml/min
COSMO漏孔LM-1C 250kpa 0.20ml/min
COSMO漏孔LM-1C -89kpa 1.00ml/min
COSMO漏孔LM-1C-J1-1
COSMO漏孔LM-1C / LM-1C-J1系列介绍
● 在指定的测试压力下创建指定的泄漏量
● 制造精度在要求泄漏量的5%以内。 但小于2mL/min时,制造精度应为±10~20%。
● 漏气测试仪的灵敏度检查,运行方便可靠。
● 泄漏量变化小,可长期稳定使用
● 也可用于外部压力检测(二次测量)法
● 可直接连接到漏气测试仪校准端口
● 通过使用专用适配器,可以在从工件到测试仪进行配管时进行连接
● 通过将泄漏管理器更换为专用堵头,可以轻松恢复正常检查状态(无泄漏状态)
● 可应要求提供可追溯证书
● Create the specified leak amount at the specified test pressure
● Manufacturing precision within 5% of the requested leak volume. However, for less than 2mL/min, manufacturing precision should be ±10~20%.
● Easily and reliably run a sensitivity check of air leak tester.
● The change in leak volume is small, so it can be used stably over the long term
● Can also be used for external pressure detection (secondary side measurement) method
● Can be directly connected to our air leak tester calibration port
● By using dedicated adapter, connection is possible when doing piping from workpiece to tester
● By changing the leak master to a dedicated plug, it is possible to easily return to normal inspection status (no leak status)
● Traceability certificate is available upon a request

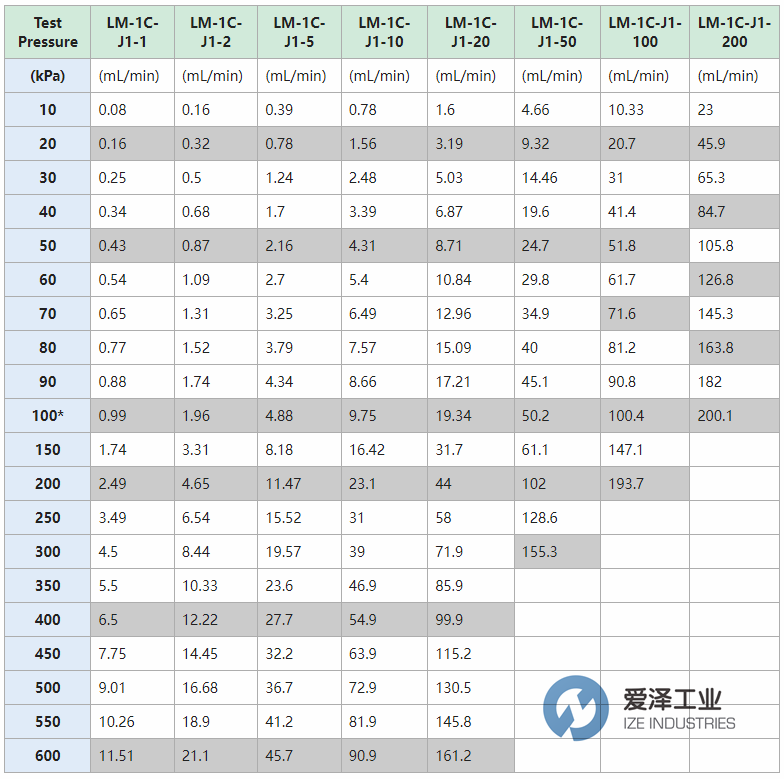

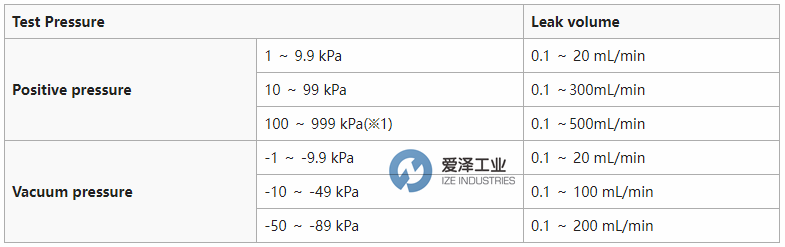

COSMO漏孔LM-1C / LM-1C-J1系列压力流量选型
COSMO漏孔LM-1C / LM-1C-J1系列其他常用型号:
COSMO LM-1C
COSMO LM-1C-J1-1
COSMO LM-1C-J1-2
COSMO LM-1C-J1-5
COSMO LM-1C-J1-10
COSMO LM-1C-J1-20
COSMO LM-1C-J1-50
COSMO LM-1C-J1-100
COSMO LM-1C-J1-200
如果您有任何关于产品的相关技术咨询或者需要COSMO的相关技术资料与文档,请随时致电爱泽工业,或者访问网站,我们将尽全力解决您的问题。
