- Z-LASER激光器Z3M18B-F-635-X30
详细信息
品牌:Z-LASER 型号:Z3M18B-F-635-X30 加工定制:否 Z-LASER位于德国,自1985年以来一直致力于开发和生产创新、高质量的激光解决方案。Z-LASER的产品范围包括定位激光器、机器视觉激光器、激光投影仪和 OEM 激光系统。
Z-LASER激光器ZM18系列介绍
ZM18 系列产品为现代工业激光模块树立,可以从 1,000 多种不同型号中选择适合定位应用的激光器。
紧凑的传感器式设计使其能够轻松集成到现有机器或系统中。易于操作的聚焦光学元件使产品更加完善。
亮点
• 手动或定焦
• TTL 调制,*高 500 kHz
• 模拟强度控制
• 光输出功率,*高 120 mW
• 波长范围:520 - 685 nm
• 工业标准
• IP67
The products of the ZM18 series set the standard for modern laser modules for industrial use. You can select the right laser for your positioning application from more than 1,000 different variants.
The compact, sensor-like design enables easy integration into existing machines or systems. Easy-to-operate focussing optics complete the product. It’s the perfect allrounder!
Highlights
• Manual or fixed focus
• TTL modulation up to 500 kHz
• Analog intensity control
• Optical output power up to 120 mW
• Wavelengths from 520 - 685 nm
• Industrial standard
• IP67
Z-LASER激光器ZM18系列其他常用型号:
Z-LASER ZM18RF182
Z-LASER Z3M18B-F-635-X30
Z-LASER ZM18RF027
Z-LASER Z5M18B-F-635-LG90
Z-LASER laser NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于Z-LASER激光器Z3M18B-F-635-X30的疑问,请随时与我们沟通( )。我们将尽全力解决您的问题。
If you have any question for Z-LASER products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website: www.ize-industries.com.

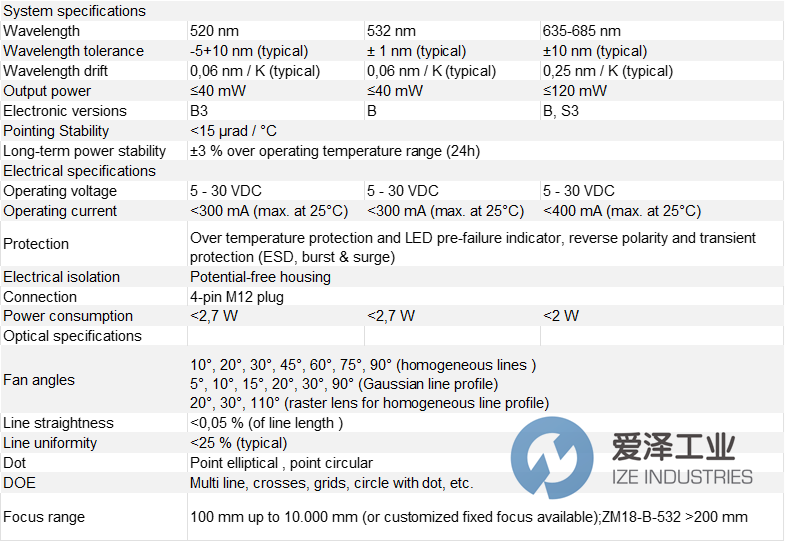

Z-LASER激光器ZM18系列Z3M18B-F-635-X30技术参数及介绍
-
