CLIMAX90系列气动注脂装置介绍
2020-10-14 18:10:11 来源:https://www.ize-industries.com/news-details.aspx?cCLIMAX 90系列气动注脂装置介绍

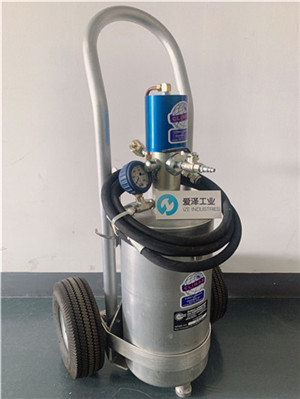

CLIMAX注脂泵10-90-OS 爱泽工业ize-industries
CLIMAX气动注脂装置90系列介绍
90型是比例为90:1的泵,带有完全密封的3-1 / 4”气动马达,可在100 psi的进气压力下提供高效运行,产生9,000 lbs的润滑脂压力。
现在可用:Model 120系列是比率为120:1的泵,带有4英寸气动马达,可在100 psi的进气压力下高效运行,产生12,000 lbs的润滑脂压力。
10和40型配备10英寸充气轮胎。
所有型号均配备10英尺的3/8” ID(标准)内径16,000/磅的高压油脂软管,一端为90°旋转,另一端为1/4” NPT内置旋转,0- 15,000 psi压力表,带保护器,空气截止阀和必要的适配器,可供使用。
指定是用于旋塞/球阀还是井口闸阀。
Climax旋塞/球阀设置包括319700截止安全阀和巨型按钮式接头。
Climax井口闸阀设置包括319700截止溢流阀和1714润滑油适配器(1” -14 THD WKM / API)。
The Model 90 series is a 90:1 ratio pump with a totally sealed-in 3-1/4" air motor which will provide efficient operations at an air inlet pressure of 100 psi, producing 9,000 Ibs. of grease pressure.
Now Available: The Model 120 series is a 120:1 ratio pump with a 4" air motor providing efficient operations at an air inlet pressure of 100 psi, producing 12,000 lbs. of grease pressure.
The Model 10 & 40 are furnished with 10" pneumatic tires.
All models are furnished with 10 feet of 3/8" ID (std.) 16,000 Ib.-burst High Pressure Grease Hose with 90° swivel on one end and 1/4" NPT built-in swivel on the other end, 0-15,000 psi Gauge w/protector, air shut-off valve and necessary Adaptors ready for use.
Specify whether for use on Plug/Ball Valves or Wellhead Gate Valves.
A Climax Plug/Ball Valve Setup includes a 319700 Shutoff Relief Valve and Giant Buttonhead Coupler.
A Climax Wellhead Gate Valve Setup includes a 319700 Shutoff Relief Valve and a 1714 Lube Adapter (1"-14 THD WKM/API).

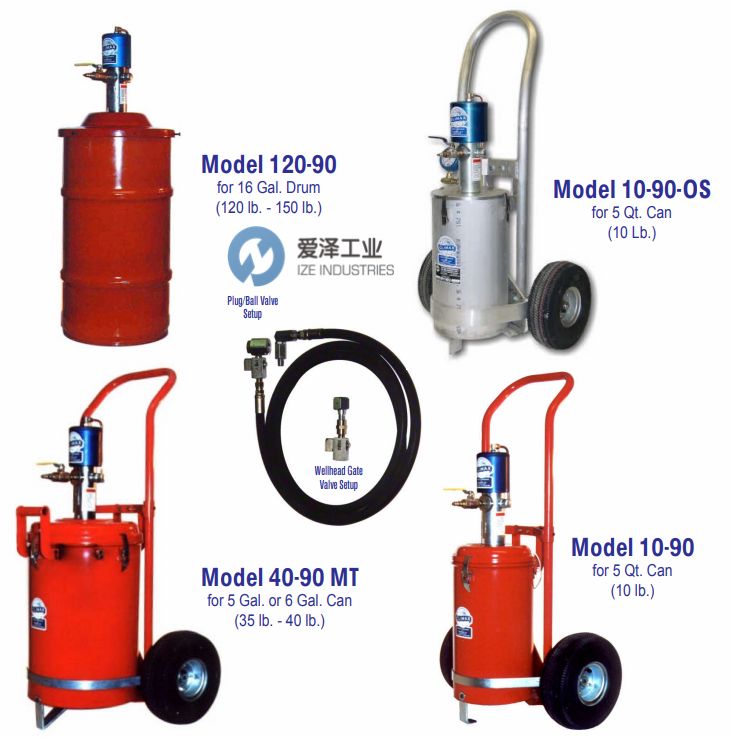

CLIMAX气动注脂装置90系列产品展示
CLIMAX注脂装置其他常用型号:
CLIMAX 120-90
CLIMAX 10-90-OS
CLIMAX 40-90 MT
CLIMAX 10-90
CLIMAX 10-120-OS
CLIMAX 40-120MT
CLIMAX 6713-10
CLIMAX 150
CLIMAX 1699-33
CLIMAX 1800
CLIMAX 1700
如果您有任何关于CLIMAX的相关技术咨询或者需要产品的相关技术资料与文档,请随时致电爱泽工业(021-3100 6702),或者访问网站www.ize-industries.com,我们将尽全力解决您的问题。
If you have any question for CLIMAX,please feel free to dial 0086-21-3100 6702 or browse our website: www.ize-industries.com.
