PROFIMESS流量计VM-01系列VM-01.2.1

PROFIMESS数十年的经验以及与客户和供应商的不断交流是流量测量技术，液位测量技术，压力测量技术和温度测量技术领域广泛产品的基础，这些领域广泛并且已经适用于几乎所有应用的完美解决方案。PROFIMESS提供从简单的压力表到复杂的雷达液位计的各种复杂固体，并且没有*低采购订单价值或较低数量的附加费。

PROFIMESS产品有：

液位流量计

液位计

流量计

压力

温度

配件

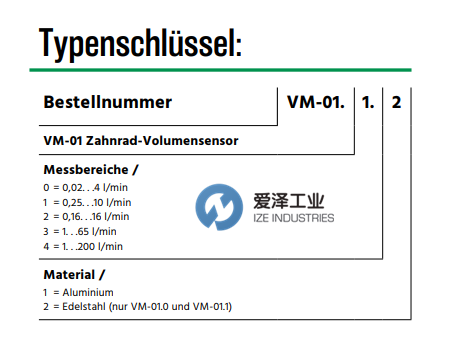

PROFIMESS流量计VM-01.2.1系列型号解析

PROFIMESS流量计VM-01系列介绍及选型

Description:

The VM-01 series of the flowmeter measuring sensor consists of a par of toothed wheels which is driven by the flow of fluid according to the working principle of a gear-wheel pump. The bearing for the measuring sensor is designed as a radial and axial sliding contact bearing (VM-01.2: ball bearing). The gear-wheel movement is scanned by means of a magneto-resistive sensor that is hermetically separated from the measuring chamber. The gear-wheel diameter of the VM-01 is ideal due to its low resistance to flow and especially low sound level.

Application:

The gear-wheel flowmeters of the VM-01 series are mainly used for measuring consumption, control of filling operations and for monitoring lubrication points. Due to their small dimensions and, particularly, due to the low pricing, they are suitable for OEM applications.

描述：

流量计测量传感器的VM-01系列由一对齿轮组成，这些齿轮根据齿轮泵的工作原理由流体的流动驱动。测量传感器的轴承设计为径向和轴向滑动接触轴承（VM-01.2：球轴承）。 齿轮的运动通过一个磁阻传感器进行扫描，该磁阻传感器与测量室气密隔离。VM-01的齿轮直径是理想的选择，因为它的低流动阻力和特别低的声音水平。

应用：

VM-01系列的齿轮流量计主要用于测量消耗量，控制加注操作和监视润滑点。由于它们的尺寸小，尤其是由于价格低廉，它们适合OEM应用。

PROFIMESS流量计VM-01系列尺寸图

PROFIMESS流量计VM-01系列其他型号列举

PROFIMESS VM-01.0.1

PROFIMESS VM-01.0.2

PROFIMESS VM-01.1

PROFIMESS VM-01.2

PROFIMESS VM-01.3

PROFIMESS VM-01.4

PROFIMESS VM-01.0

PROFIMESS switch NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于PROFIMESS流量计VM-01.2.1的疑问，请随时与我们电联，（ ），我们将尽全力解决您的问题。

If you have any question for PROFIMESS products, please feel free to dial 0086-21-3100 6702/ send request email to  / browse our webCEte: www.ize-industries.com.

PROFIMESS流量计VM-01.2.1电气及机械参数
