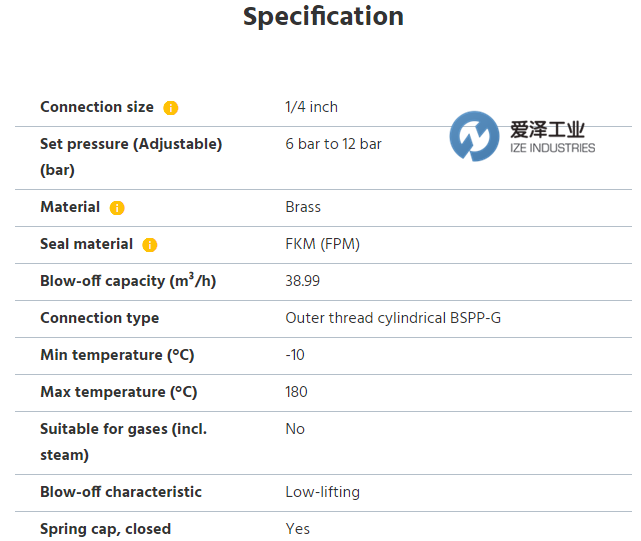

TAMESON泄压阀SFL-B-12-014-M产品参数



TAMESON泄压阀SFL-B-12-014-M产品介绍

The G 1/4 inch brass adjustable safety valve that is used to control the pressure in a system by venting once the set blow-off pressure has been achieved. The valve opens using a spring-based mechanism to protect your system from being subjected to pressures that exceed the maximum safety levels. The blow-off pressure can be manually set between 6-12 bar (87.02-174.05 psi). This model has G 1/4 inch ports and the housing material is brass with a FPM/FKM sealing. This valve blows the gas off freely into the atmosphere, because of this it is only suitable for compressed air and other non-toxic and non-flammable gases. The valve has a low-lifting blow-off characteristic. The maximum blow-off capacity is 38.99 m3/h. The temperature range of this safety valve is between -10 °C to 180 °C (14 °F to 356 °F).

Pros:

The blow-off pressure can be manually adjusted between 6-12 bar (87.02-174.05 psi)

Suitable for all non-toxic and non-flammable gases

Reliable FPM/FKM sealing

Small form factor

High blow-off capacity of 38.99 m3/h

Cons:

Not suitable for liquids

Only to be used as a safety relief valve, not to regulate pressure (relief valve).

SFL-M series

The SFL-M series are brass and stainless steel safety valves designed to protect your system from over-pressurizing. The valves are available in manually adjustable pressures between 0.5 and 60 bar (7.25 and 870.23 psi) and come with various corresponding blow-off capacaties. The valves have a FPM/FKM sealing for a tight and secure fit. They are suitable for compressed air and other non-toxic, non-inflammable gases. The gases are blown off freely into the atmosphere.

G 1/4英寸黄铜可调节安全阀，用于在达到设定的排放压力后通过排气来控制系统中的压力。阀使用基于弹簧的机制打开，以防止系统承受超过*大安全级别的压力。排气压力可以手动设置在6-12 bar（87.02-174.05 psi）之间。该型号具有G 1/4英寸端口，外壳材料为黄铜，带有FPM / FKM密封。该阀将气体自由地排入大气，因此仅适用于压缩空气和其他无毒，不可燃的气体。该阀具有低升程排放特性。*大吹气量为38.99立方米/小时。该安全阀的温度范围在-10°C至180°C（14°F至356°F）之间。

优点：

排气压力可以在6-12 bar（87.02-174.05 psi）之间手动调节

适用于所有无毒和不易燃气体

可靠的FPM / FKM密封

小尺寸

吹气量高达38.99 m3 / h

缺点：

不适合液体

仅用作安全释放阀，不能调节压力（释放阀）。

SFL-M系列

SFL-M系列是黄铜和不锈钢安全阀，旨在保护您的系统免于过压。这些阀的手动压力可在0.5至60 bar（7.25至870.23 psi）之间进行调节，并具有各种相应的排汽能力。阀门具有FPM / FKM密封，以实现紧密牢固的配合。它们适用于压缩空气和其他无毒，不可燃的气体。气体自由地吹到大气中。

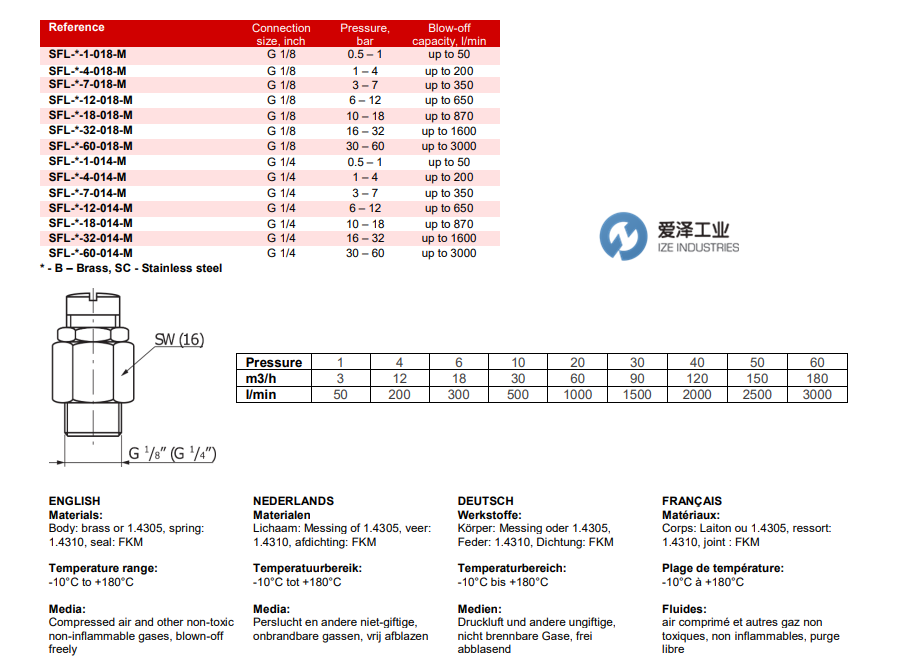

外观尺寸及选型

TAMESON泄压阀SFL-M系列其他常见型号：

TAMESON SFL-B-12-014-M

TAMESON SFL-SC-1-014-M

TAMESON SFL-B-18-014-M

TAMESON SFL-SC-4-014-M

TAMESON SFL-B-1-014-M

TAMESON SFL-B-4-014-M

TAMESON SFL-B-7-014-M

TAMESON SFL-SC-7-018-M

TAMESON SFL-B-7-018-M

TAMESON SFL-SC-32-014-M

TAMESON SFL-B-4-018-M

TAMESON SFL-B-1-018-M

TAMESON SFL-SC-1-018-M

TAMESON SFL-SC-4-018-M

TAMESON SFL-SC-7-014-M

TAMESON SFL-B-32-014-M

TAMESON SFL-B-32-018-M

TAMESON SFL-B-12-018-M

TAMESON SFL-B-60-014-M

TAMESON SFL-SC-18-018-M

TAMESON SFL-SC-12-014-M

TAMESON SFL-B-60-018-M

TAMESON SFL-SC-60-018-M

TAMESON SFL-SC-60-014-M

TAMESON SFL-SC-12-018-M

TAMESON SFL-SC-32-018-M

TAMESON SFL-SC-18-014-M

TAMESON SFL-B-18-018-M
