BUSAK+SHAMBAN密封PW4300630-WUAQ3

TRELLEBORG特瑞堡密封系统成立于1952年，BUSAK+SHAMBAN这个名字仍然存在于所有营销地点，但制造地点被称为特瑞堡密封解决方案。

BUSAK+SHAMBAN主营产品应用：

BUSAK+SHAMBAN宝色霞板

BUSAK+SHAMBAN特康斯特封

BUSAK+SHAMBAN密封

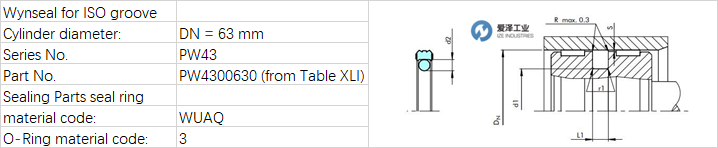

BUSAK+SHAMBAN密封PW4300630-WUAQ3产品参数

BUSAK+SHAMBAN密封PW4300630-WUAQ3产品介绍

Description

The ZurconR Wynseal is a double-acting seal consisting of a special polyurethane seal ring and an O-Ring as energizing element .

The particular characteristic of the seal is the special design of the seal edge profile. Two external seal edges act as primary seal for pressures from both sides and prevent any build-up of hydrodynamic pressure over the seal profile and the risk of the blow-by effect. The central back-up and sealing bulge increases the sealing effect*. Grooves are provided on both sides on the plane surfaces to provide activation of the energizing O-Ring. These ensure direct pressure loading of the seal under all operating conditions.

Since the installation groove is identical to that for the TurconR Glyd RingR, the seal is ideal for the standardisation of cylinder construction if, efficient and low cost seal elements are demanded in large quantities and, the cylinder can be adapted to meet different operating conditions. It has to be taken into consideration that in this case the gap dimension has to be checked !

Application Examples

The ZurconR Wynseal is the recommended sealing element for double acting pistons of hydraulic components in various sectors such as:

Machine tools

Forklifts & handling machinery

Agriculture

Industrial hydraulic light to medium duty

描述

ZurconR Wynseal是一种双作用密封件，由一个特殊的聚氨酯密封圈和一个O形圈作为激励元件组成。

密封件的特殊特征是密封件边缘轮廓的特殊设计。两个外部密封边缘充当来自两侧的压力的主要密封，并防止在密封轮廓上积聚任何流体动力压力，并防止漏气的危险。中央的支撑和密封凸起可提高密封效果*。在平面的两侧均设有凹槽，以激活通电的O形圈。这些确保了在所有运行条件下密封件的直接压力加载。

由于安装槽与TurconR Glyd RingR的安装槽相同，因此，如果需要大量有效且低成本的密封元件，并且气缸可以适应不同的工作条件，则该密封件是气缸结构标准化的理想选择。必须考虑到在这种情况下必须检查间隙尺寸！

应用实例

ZurconR Wynseal是推荐用于各种领域的液压元件双作用活塞的密封元件，例如：

机械工具

叉车及装卸机械

农业

工业液压轻至中型

选型参考

BUSAK+SHAMBAN密封PW43系列其他常见型号：

B+S PW420B223

B+S PW4300520

B+S PW4200540

B+S PW4200550

B+S PW4300550

B+S PW4200560

B+S PW4200570

B+S PW4300600

B+S PW4200600

B+S PW4200630

B+S PW4300630

B+S PW420B227

B+S PW4200650

B+S PW4300650

B+S PW4200700

B+S PW4300700

B+S PW4200720

BUSAK+SHAMBAN ZurconR U-Cup PW43 NEW + ORIGINAL+ ONE YEAR WARRANTY
