WATER HYDRAULICS驱动器ST5-Q-NN

WATER HYDRAULICS 成立于2001年，位于英国。专注于水力液压解决方案的设计，开发和制造。该公司供应和制造全系列创新的泵，电机，阀门，气缸和系统，可在自来水中运行，无需任何其他流体添加剂。在与传统液压系统相似的压力范围内运行，水系统可提供更高的效率，从而降低运营成本并*大限度地减小组件尺寸。该产品设计用于现有的油压接口，确保*小的交换能力。水力液压有限公司在为高压水雾灭火，海水淡化，核能，海军，石油和天然气，采矿，水处理，液压，可再生能源和食品等全球行业提供广泛的经验。

主要经营产品：

泵

阀门

电机

气瓶

动力装置

WATER HYDRAULICS驱动器简介

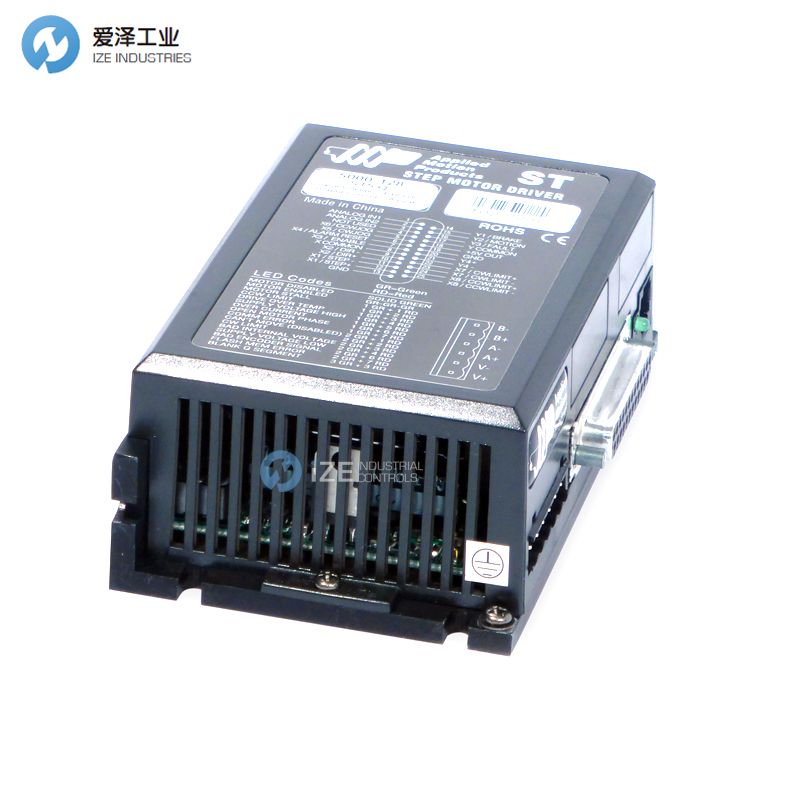

WATER HYDRAULICS驱动器ST5-Q-NN介绍

▪ Programmable microstepping drive with advanced current control

▪ Q Programmer™ for robust motion control programming

▪ 744 lines of stored program capability

▪ Math calculations using analog and digital parameters

▪ Supports all “S” drive control modes as well

▪ Modbus/RTU for easy PLC and HMI communication

▪ Compatible with many 3rd party HMIs

▪ Wide current range 0.1 to 5.0 A/phase (peak of sine) with idle current reduction

▪ Advanced anti-resonance algorithm

▪ Torque ripple smoothing

▪ 8 digital inputs, 4 digital outputs, optically isolated

▪ 2 analog inputs, +/-10 volt range

▪ RS-232 cable and mating connectors included

The ST5-Q-NN stepper drive is a DC-powered microstepping drive for controlling two-phase, bipolar step motors. It offers advanced current control and a sophisticated 3rd generation anti-resonance algorithm that electronically dampens motor and system resonances to improve motor smoothness and usable torque over a wide speed range. The drive also employs electronic torque ripple smoothing and microstep emulation to greatly reduce motor noise and vibration. The drive must be powered from 24-48 VDC and can output up to 5.0 A/phase (peak-of-sine) to the step motor. Over-voltage, over-temperature and over-current protection features prevent damage while running in adverse conditions. The drive is complemented by a specifically matched set of NEMA 11 through NEMA 23 frame stepper motors .

The ST5-Q-NN can operate in all of the same control modes as the S model (pulse & direction, velocity, streaming commands, SiNet Hub operation), plus it has the ability to run stand-alone Q programs stored in non-volatile memory. Q programs are created using the Q Programmer™ software, which provides multi-tasking, math functions, conditional processing, data register manipulation, and more features in a robust yet simple text-based programming language. The drive is setup and configured using Applied Motion’s ST Configurator™ software. Preconfigured motor setup files included with ST Configurator™ make it easy to set up the drive for optimum results.

For connecting to external devices such as control signals, incremental encoders, limit switches, proximity or photoelectric sensors, PLC I/O, lamps, and other devices, the drive comes with 8 digital inputs, 4 digital outputs, and 2 single-ended analog inputs (analog inputs can be wired together as 1 differential analog input). Adjustable digital filters are present on the digital inputs for enhanced reliability in noisy environments.

The drive comes with an RS-232 port for configuration, serial communications and programming. All ST drives are CE approved and RoHS compliant.

▪具有先进电流控制功能的可编程微步进驱动器

▪Q Programmer™用于强大的运动控制编程

▪744行存储程序功能

▪使用模拟和数字参数进行数学计算

▪也支持所有“ S”驱动器控制模式

▪Modbus / RTU，易于进行PLC和HMI通讯

▪与许多第三方HMI兼容

▪较宽的电流范围，每相0.1至5.0 A（正弦峰值），并具有闲置电流减少功能

▪先进的反共振算法

▪转矩脉动平滑

▪8个数字输入，4个数字输出，光电隔离

▪2个模拟输入，+ /-10伏范围

▪随附RS-232电缆和配对连接器

ST5-Q-NN步进驱动器是一个直流电微步进驱动器，用于控制两相，双极步进电机。它提供了先进的电流控制和完善的第三代反共振算法，可通过电子方式抑制电动机和系统的共振，从而在较宽的速度范围内提高电动机的平滑度和可用转矩。该驱动器还采用了电子转矩纹波平滑和微步仿真，可大大降低电动机的噪音和振动。驱动器必须由24-48 VDC供电，并且每相*多可输出5.0 A（正弦峰值）到步进电动机。过电压，过热和过电流保护功能可防止在不利条件下运行时造成损坏。该驱动器由一组特别匹配的NEMA 11到NEMA 23框架步进电机来补充。

ST5-Q-NN可以在与S模型相同的所有控制模式下运行（脉冲和方向，速度，流命令，SiNet Hub操作），此外，它还可以运行存储在非模型中的独立Q程序。易失性内存。使用Q Programmer™软件创建Q程序，该软件以健壮但简单的基于文本的编程语言提供多任务处理，数学功能，条件处理，数据寄存器操作以及更多功能。使用Applied Motion的ST Configurator™软件对驱动器进行设置和配置。 ST Configurator™随附的预配置电机设置文件可轻松设置驱动器以获得*佳效果。

为了连接到外部设备，例如控制信号，增量编码器，限位开关，接近或光电传感器，PLC I / O，灯和其他设备，该驱动器带有8个数字输入，4个数字输出和2个单端模拟量输入（模拟输入可以作为1个差分模拟输入连接在一起）。数字输入上存在可调数字滤波器，以提高在嘈杂环境中的可靠性。

该驱动器带有一个RS-232端口，用于配置，串行通信和编程。所有ST驱动器均通过CE认证并符合RoHS。

WATER HYDRAULICS驱动器ST5-Q-NN尺寸图

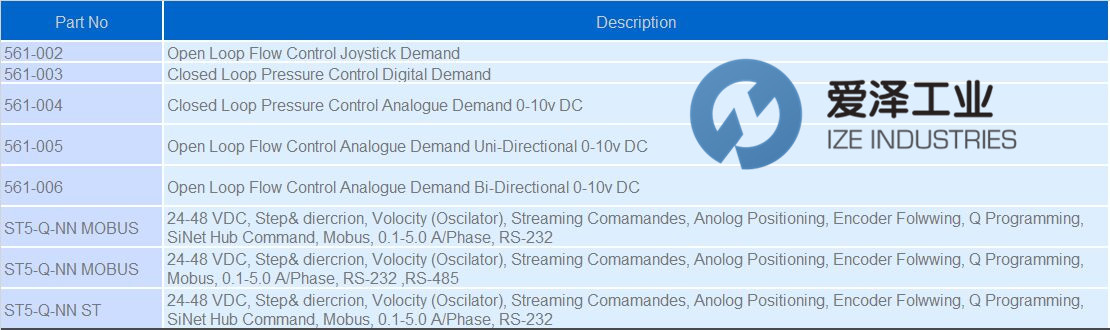

WATER HYDRAULICS驱动器其他常用型号：

WATER HYDRAULICS 561-002

WATER HYDRAULICS 561-003

WATER HYDRAULICS 561-004

WATER HYDRAULICS 561-005

WATER HYDRAULICS 561-006

WATER HYDRAULICS ST5-Q-NN MOBUS

WATER HYDRAULICS ST5-Q-NN MOBUS

WATER HYDRAULICS ST5-Q-NN ST
