ABB变送器266HSH.E.S.B.A.7.LS 266HSHESBA7LS

ABB拥有130多年的历史，是一个开创性的技术领导者，四十多年来，ABB一直站在*前沿，致力于创新数字化连接和启用的工业设备和系统。

ABB主营产品：ABB仪器仪表、ABB DCS、ABB晶闸管、ABB励磁、ABB传动及配件、ABB模块、ABB电机、ABB传感器、ABB接触器等。

ABB变送器266HSH.E.S.B.A.7.LS规格描述

ABB压力变送器266HSH系列产品描述

266HSH is a high overload gauge pressure transmitter with a maximum working pressure up to 105 MPa, 15225 psi suitable for measuring liquid, gas or steam pressure in a pipe or on an open tank.  Communication options now include Modbus®, along with 4-20mA HART, low-power 1-5V HART, Wireless HART, Profibus, and Foundation Fieldbus.

Overview

With a long-term stability, 266HSH grants lasting performances even in extreme ambient and process conditions. In addition to the traditional configuration tool (provided locally via local keys combined with LCD indicator or via hand held terminal or PC configuration tools) the innovative TTG (Through The Glass) technology allows users to configure the instruments in the field without removing the windowed front cover and consequently to save a lot of time, highlighting ABB commitment to satisfy users’ needs of simplicity and flexibility.

This transmitter features in-field replaceable electronics module that thanks to the auto-configuration functionality dramatically improves plant productivity. Its intuitive plug-and-play display with easy setup procedure really helps users by saving time and lowering maintenance and inventory costs.

SIL2/SIL3 certification issued by TÜV Nord according to IEC 61508 represents another key-feature within 266 pressure transmitter portfolio. This certification is a real guarantee of protection and makes of 266HSH the smartest fit in Safety-critical loops.

266HSH features WirelessHART communication protocol allowing a shorter installation times by eliminating complex wired infrastructures, and lower overall implementation costs of process measurement.

266HSH battery life is about 10 years at 32 sec. update rates, delivering a very cost effective and reliable solution to monitor your process assets.

Data

266HSH: smartness beyond performances.

- Base accuracy: from ±0.06%

- Span limits: 16 to 105000KPa; 64 inH20 to 15228psi

- Multiple protocol availability – provides integration with Modbus®, HART®, PROFIBUS PA, FOUNDATION Fieldbus and WirelessHART platforms offering interchangeability and transmitter upgrade capabilities

- Full compliance with PED Category III

266HSH是一种高过载表压变送器，其*大工作压力高达105 MPa，15225 psi，适用于测量管道或敞开罐中的液体，气体或蒸汽压力。现在，通讯选项包括Modbus®，以及4-20mA HART，低功耗1-5V HART，无线HART，Profibus和Foundation Fieldbus。

总览

266HSH具有长期稳定性，即使在极端的环境和工艺条件下也可提供持久的性能。除了传统的配置工具（通过结合LCD指示器的本地键或通过手持终端或PC配置工具在本地提供）之外，创新的TTG（直通玻璃）技术还使用户可以在现场配置仪器，而无需移除前窗从而节省了大量时间，这凸显了ABB致力于满足用户对简单性和灵活性的需求。

该变送器具有现场可更换电子模块，该模块具有自动配置功能，可大大提高工厂的生产率。其直观的即插即用显示和简单的设置过程，通过节省时间并降低维护和库存成本，确实为用户提供了帮助。

TÜVNord根据IEC 61508颁发的SIL2 / SIL3认证代表了266压力变送器产品系列中的另一个关键特性。该认证是对保护的真正保证，使266HSH*适合用于安全关键型回路。

266HSH具有WirelessHART通信协议，从而消除了复杂的有线基础架构，从而缩短了安装时间，并降低了过程测量的总体实施成本。

266HSH电池寿命在32秒时约为10年。更新率，提供了一种非常经济高效且可靠的解决方案来监视您的过程资产。

数据

266HSH：超越表演的智慧。

基本精度：±0.06％

-跨度限制：16至105000KPa； 64 inH20至15228psi

-多种协议可用性–提供与Modbus®，HART®，PROFIBUS PA，基金会现场总线和WirelessHART平台的集成，提供互换性和变送器升级功能

-完全符合PED III类

ABB压力变送器266HSH系列订货信息





ABB变送器266HSH系列其他常见型号:

ABB 266HSH.H.S.S.B.2.B.1.V1.E1.L1.B1.I2.C1.H3

ABB 266HSH.H.S.K.D.2.A.1.V5.L1.B2.I2

ABB 266HSH.Q.S.S.A.1.A.7/266MSH

ABB 266HSH.H.S.S.B.2.A.1.V1.E6.L5.B2.T3.I2.C1.H3

ABB 266HSH.HSSBRA1V1E7L1TB

ABB 266HSH.HSSB2B1V1E1L1B1I2C1H3

ABB 266HSH.E.S.B.A.7.LS

ABB 266HSH.HSKD2A1V5L1B2I2

ABB 266HSH.QSSA1A7/266MSH

ABB Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业集产品开发、设计、制造、销售、服务于一体，代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于ABB变送器266HSH.E.S.B.A.7.LS的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for ABB products, please feel free to dial 0086-21-3100 6702/ send request email to  / browse our website: www.ize-industries.com.

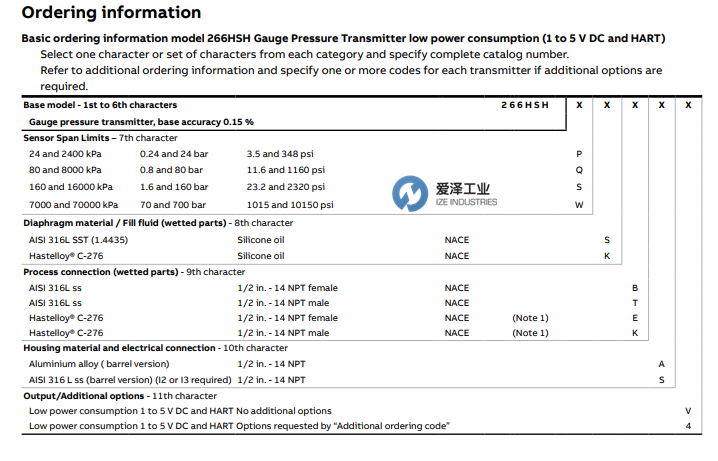

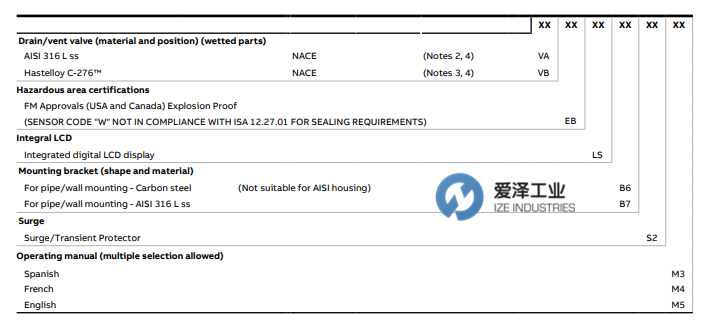

ABB变送器266HSH系列 266HSH.E.S.B.A.7.LS订货信息
