3M滤芯DCCSB-3X

3M公司创建于1902年，全球总部位于美国明苏达州的圣保罗市。作为一家多元化科技创新企业，3M的产品和技术早已深深地融入人们的生活。100多年以来，3M开发了近七万种产品，从家庭用品到医疗产品，从运输、建筑到商业、教育和电子、通信等各个领域。

主要经营产品有：

3M净水与空气净化

3M化工及特性材料

3M*及配件

3M商用清洁护理

3M滤芯DCCSB-3X技术参数

3M滤芯DCCSB-3X产品简介及选型

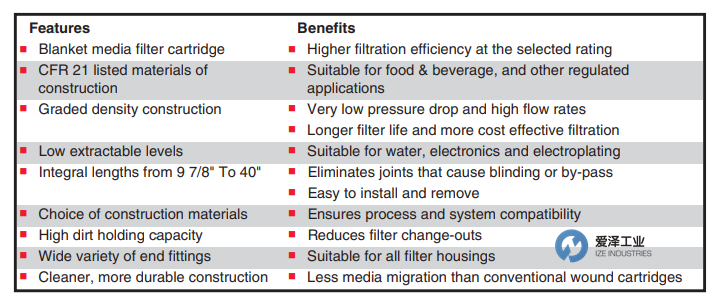

Micro-Wynd®II滤筒是毯式过滤技术的重大进步。通过将增强的开风工艺与内部介质覆盖层相结合，Mi cro-Wynd II可提供优异的流速，更高的过滤效率以及不同批次之间的一致过滤特性。

优异的性能是纱线基体先进的卷绕图案与CUNO专有的专利工艺直接结合的结果，CUNO的专有专利工艺在连续的纱线层之间分别应用了定制的介质“毛毯”。单独插入的橡皮布将腔室封闭，并保持过滤的一致性和完整性。这两个因素结合在一起，实现了过滤效果的平衡，而这些特性在普通的缠绕式滤筒上是无法获得的，在普通的滤筒上对纱线进行梳理或刷毛处理会产生过滤介质。

Micro-Wynd II缠绕模式所提供的限制也比普通绕线盒常见的模式少。因此，对于Micro-Wynd II滤芯而言，提供多达2½倍的开口面积并不罕见，在相同的压降下，流量*多可提高500％。

The Micro-Wynd® II filter cartridge is a major advance in blanketed filter technology. By combining an enhanced open wind process with an internal media blanket, the Mi cro-Wynd II provides superior flow rates, greater filtration efficiency, and consistent filtration characteristics from cartridge to cartridge, lot to lot.

The superior performance is a direct result of the advanced winding pattern of the yarn matrix combined with CUNO’s exclusive patented process of separately applying a tailored media “blanket” between successive layers of yarn.This winding pattern creates much larger diamond shaped contaminant holding chambers. The separately inserted blanket encloses the chambers and maintains the consistency and integrity of filtration. These two factors combine to achieve a balance of filtration characteristics impossible to obtain with ordinary wound filter cartridges with teased or brushed up random fibers on the yarn to produce a filtering media.

The Micro-Wynd II winding pattern also provides less restriction than the patterns common to ordinary wound cartridges. Consequently, it is not unusual for Micro-Wynd II filter cartridge to provide up to 2 ½ times more open area, enhancing the flow rate by up to 500% for the same pressure drop.




3M滤芯其他常见系列：

3M DCCSB-3X

3M D-PPFZ

3M D-PPSZ

3M D-PPTZ

3M D-PPPZ

3M D-PPFY

3M D-PPSY

3M D-PPTY

3M D-PPPY

3M D-PPFA

3M D-PPSA

3M D-PPTA

3M D-PPPA

3M D-PPFB

3M D-PPSB

3M D-PPTB

3M D-PPPB

3M D-PPFC

3M D-PPSC

3M D-PPTC

3M D-PPPC

3M D-PPFF

3M D-PPSF

3M D-PPTF

3M D-PPPF

3M Filter element NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于3M滤芯DCCSB-3X的疑问，请随时与我们沟通。我们将尽全力解决您的问题。

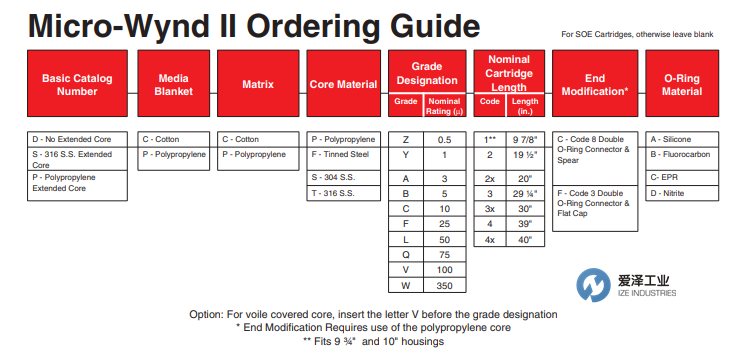

3M滤芯DCCSB-3X产品参数
