ANYBUS网关AB7650-F

自1988年成立以来，HMS工业网络已经帮助企业获得连接，三十年后，诸如物联网和工业4.0等趋势需要越来越多的工业机器联网，HMS Anybus产品提供了一种快速简单的方式。如今，Anybus产品可连接全球数百万台设备，使用户能拓宽市场并改善业务。

ANYBUS主营产品：BACnet/IP，CC-Link IE Field，EtherCAT，EtherNet/IP，Modbus TCP，Powerlink， PROFINET，CANopen，CC-Link， ControlNet，DeviceNet，M-Bus， Modbus RTU (RS232/422/485)，PROFIBUS 。

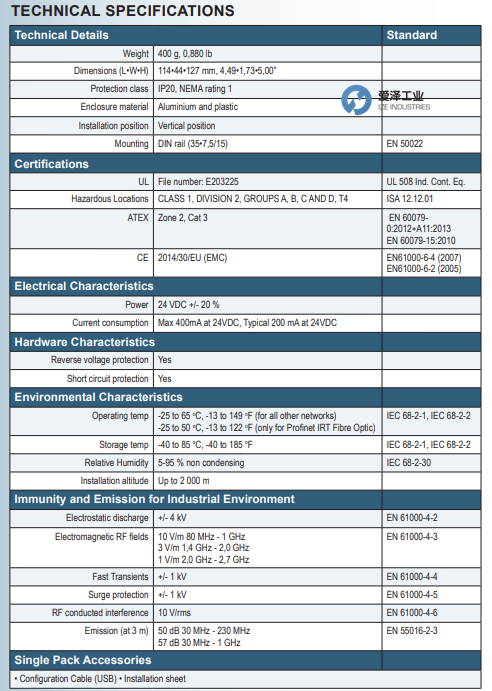

ANYBUS网关AB7650-F规格描述



ANYBUS网关AB7650-F产品信息

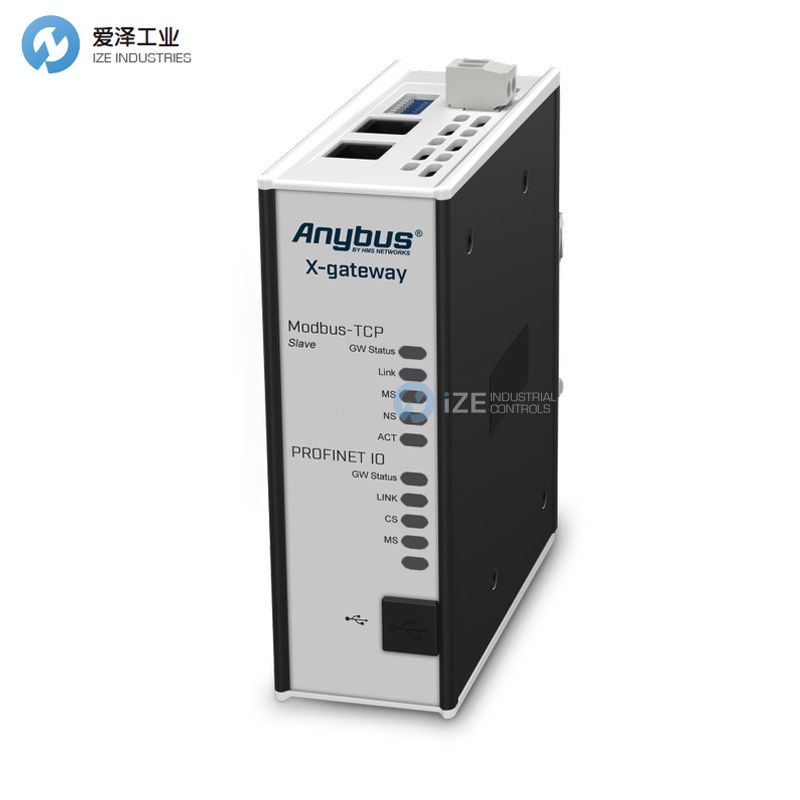

The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between Modbus TCP and PROFINET networks.

FAST COPYING OF I/O DATA

The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Server on the Modbus TCP network and as a Device on the PROFINET network. The data transmission between the two networks is completely transparent with a maximum data capacity of 512 bytes in each direction.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.

Features and benefits

Fast copying of cyclic I/O data between Modbus TCP and PROFINET-IO networks (10-15 ms)

Proven and tested with all PLC manufacturers

Supports up to a maximum of 512 bytes of Input and Output data in each direction

Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network

Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server

Optional control status information added to I/O data for diagnostic purposes

Robust stand-alone housing for use in harsh industrial environments

Anybus X网关可以在Modbus TCP和PROFINET网络之间无缝互连PLC控制系统及其连接的设备。

快速复制I / O数据

X网关的主要功能是在两个网络之间快速传输循环I / O数据。这使PLC免于进行其他计算。网关在Modbus TCP网络上充当服务器，在PROFINET网络上充当设备。两个网络之间的数据传输是完全透明的，每个方向的*大数据容量为512字节。

易于配置-无需编程！

X网关随附的Anybus Configuration Manager软件可快速设置两个网络之间的连接。无需编程技能即可设置X网关。作为出厂默认设置，X网关具有20字节I / O的预定义I / O大小。

特点和优点

在Modbus TCP和PROFINET-IO网络之间快速复制循环I / O数据（10-15毫秒）

经所有PLC制造商验证和测试

每个方向*多支持512字节的输入和输出数据

可以建立网页来显示和控制来自另一个连接网络的数据的工厂车间流程

快速，动态地将现场总线数据传输到例如通过随附的Anybus OPC服务器，基于Microsoft Windows的SCADA / HMI /企业级系统

可选的控制状态信息已添加到I / O数据中以进行诊断
