REXROTH浮球开关ABZMS-35-1X/130F030S-K14

REXROTH致力于为各类机械和系统设备提供安全、精准、高效以及高性价比的传动与控制技术。公司融合全球的应用经验，研发创新的产品，为行走机械、机械应用与工程、工厂自动化及可再生能源每一个细分市场的客户量身定制系统解决方案及服务。

REXROTH的主要产品有：REXROTH换向阀，REXROTH止回阀，REXROTH浮球开关，REXROTH平衡阀，REXROTH球阀，REXROTH插装阀，REXROTH单向阀，REXROTH溢流阀，REXROTH行程阀，REXROTH驱动阀，REXROTH安全阀，REXROTH阀组，REXROTH阀块，REXROTH浮球开关线圈，REXROTH流量计等等。

REXROTH浮球开关ABZMS-35-1X/130F030S-K14技术描述

REXROTH浮球开关ABZMS-35系列参数介绍

浮子开关是通过流体移动的浮子来操作的开关装置。它们用于控制ABSKG ... NG10型小型动力装置中的油箱液位20; 40和60。

滑动管包含两个固定设置的簧片触点（常闭触点和常开触点），它们由安装在浮子中的永磁体进行切换。

安装了固定设置的温度触点（选件）以监控*大温度。液压油温度。

液位开关功能

当油位下降时，浮子到达切换点时，触头将磁性操作。触点的切换位置一直保持到浮子由于油位上升而再次通过切换点为止。

开关点L1是常闭触点，开关点L2的触点功能可选地是常闭或常开触点。

温度接触功能

当温度达到确定的响应温度时，会切换受温度影响的双金属板。温度触点不适用于温度控制，而仅适用于关机功能。

Product description

Float switches are switching devices operated by a float moved by fluid. They are used to control the tank fluid levels in small power units type ABSKG ... NG10; 20; 40 and 60.

The sliding tubes contain two fixedly set reed contacts (normally closed contact and normally open contact) that are switched by the permanent magnets installed in the float.

Fixedly set temperature contacts (option) are fitted to monitor the max. hydraulic fluid temperature.

Function of level switch

When the float reaches the switching points while the oil level is falling, the contacts are operated magnetically. The switching positions of the contacts are maintained until the float passes the switching points again due to a rising oil level.

Switching point L1 is a normally closed contact, the contact function of switching point L2 is optionally a normally closed or normally open contact.

Temperature contact function

A bimetal plate, which is influenced by temperature, switches when a firmly set response temperature is reached. The temperature contact is not suitable for temperature controlling, but merely for a shutdown function.

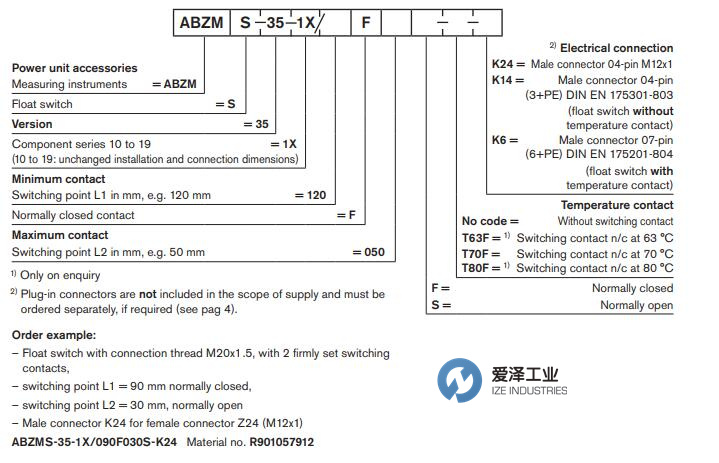

REXROTH浮球开关ABZMS-35系列产品介绍及选型


REXROTH浮球开关ABZMS-35系列其他常见型号：

REXROTH ABZMS-35-1X/090F030S-K24 R901057912

REXROTH ABZMS-35-1X/120F050S-K24 R901057913

REXROTH ABZMS-35-1X/165F085S-K24 R901057914

REXROTH ABZMS-35-1X/090F060S-K24 R901088809

REXROTH ABZMS-35-1X/120F090S-K24 R901088810

REXROTH ABZMS-35-1X/165F135S-K24 R901088811

REXROTH ABZMS-35-1X /090F030S-T70F-K24 R901057916

REXROTH ABZMS-35-1X /120F050S-T70F-K24 R901057918

REXROTH ABZMS-35-1X /165F085S-T70F-K24 R901057920

REXROTH ABZMS-35-1X /090F060S-T70F-K24 R901088812

REXROTH ABZMS-35-1X /120F090S-T70F-K24 R901088813

REXROTH ABZMS-35-1X /165F135S-T70F-K24 R901088814

REXROTH Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业集产品开发、设计、制造、销售、服务于一体，代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的首选渠道。

如果有任何关于REXROTH浮球开关ABZMS-35-1X/130F030S-K14 的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to  / browse our website: www.ize-industries.com.

REXROTH浮球开关ABZMS-35-1X/130F030S-K14技术数据及特征
