- ECCOSORB材料GDS系列GDS-SS6M
详细信息
品牌:ECCOSORB 型号:GDS-SS6M 加工定制:否 LAIRD开发和生产微波材料,低损耗电介质,导电屏蔽材料,RFID读写金属和液体标签。
主营产品应用:
LAIRD ECCOSORB EMC组件
LAIRD ECCOSORB EMI屏蔽和垫片
LAIRD ECCOSORB电感器
LAIRD ECCOSORB精密金属
LAIRD ECCOSORB微波吸收器和电介质
LAIRD ECCOSORB热界面材料
LAIRD ECCOSORB无线充电
ECCOSORB材料GDS-SS6M产品介绍
Eccosorb GDS是一种薄的,柔性的,高损耗的,磁性负载的,不导电的硅橡胶片。它设计用于6 GHz以上的频率范围。该材料不透水,可以在高海拔条件下使用,而不会产生不利影响。作为一个基于有机硅的吸收器,它具有空间应用低释气特性。
特点和优点
•高功率性能
•低放气性能
应用市场
•商业电信
•安全与防御
•汽车和工业电子
应用领域
•由于吸收剂具有高介电常数和渗透性,因此,将Eccosorb GDS放在空腔中时,已证明在抑制共振方面非常有效。
•当粘合到金属表面时,由于微波电流在该表面上流动,Eccosorb GDS将大大降低金属物体或结构的反射率。
•可以应用于天线元件,微波天线,波导的内表面或外表面,以隔离,衰减或修改辐射方向图。
•当应用于某些物体的侧面甚至背面时,Eccosorb GDS会大大降低“正面”反射率或反向散射。
•尽管不打算用作镜面吸收体,但它将使金属板的反射率降低几dB。
Eccosorb GDS is a thin, flexible, high-loss, magnetically loaded, electrically non-conductive silicone rubber sheet. It is designed for the frequency range from 6 GHz and above. The material is impervious to moisture and can be subjected to high altitudes, with no adverse effects. Being a silicone based absorber, it has low outgassing properties for space applications.
FEATURES AND BENEFITS
• High power performance
• Low outgassing properties
MARKETS
• Commercial Telecom
• Security and Defense
• Automotive and Industrial Electronics
APPLICATIONS
• When placed within a cavity Eccosorb GDS has proven to be very effective at dampening resonances due to the absorbers high permittivity and permeability.
• When bonded to a metal surface Eccosorb GDS will significantly reduce the reflectivity of metal objects or structures due to the flow of microwave currents on that surface.
• It can be applied to antenna elements, microwave dishes, the inner or outer surfaces of waveguides for isolation, attenuation or modification of radiating patterns.
• When applied to side or even rear surfaces of certain objects Eccosorb GDS will cause a significant reduction in “head on” reflectivity or backscattering.
• Although not intended as a specular absorber, it will reduce metal plate reflectivity by a few dB.
ECCOSORB材料GDS系列其他常见型号:
ECCOSORB GDS / SS6M
ECCOSORB GDS .030X12X12
ECCOSORB GDS SHEET 305x305x0.75mm
ECCOSORB GDS-SA SHEET 305x305x0.75mm
ECCOSORB 21225167
ECCOSORB 21226192
ECCOSORB 303509001
ECCOSORB 303509103
ECCOSORB material NEW + ORIGINAL+ ONE YEAR WARRGDSTY
爱泽工业成立于2010年,定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于ECCOSORB材料GDS-SS6M的疑问,请随时与我们沟通( )。我们将尽全力解决您的问题。
If you have GDSy question for ECCOSORB products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

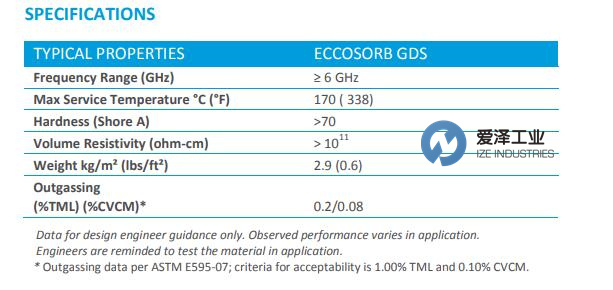

ECCOSORB材料GDS系列GDS-SS6M产品参数
-
