HYDAC换热器HEX系列HEX S610-50-00/G3/4”

德国贺德克HYDAC Technology GmbH生产用于流体过滤技术、液压控制技术、电子测量技术的元件和装置，是过滤器、蓄能器、液压阀、电子产品、管夹、电磁铁、液压系统总成等产品的液压件制造商。德国贺德克HYDAC产品的应用范围十分广泛，几乎覆盖各行各业，尤其在冶金工业、汽车工业、电力设备、化工、工程机械、造纸工业、造船工业以及机床制造等领域都得到广泛应用。

HYDAC主营产品：HYDAC液压蓄能器、HYDAC流体过滤器、HYDAC过程过滤器、HYDAC冷却器、HYDAC电动液压控制器/工业阀门、HYDAC压力传感装置、HYDAC行程测量技术和电磁技术、HYDAC液压缸、HYDAC泵、HYDAC固定技术、HYDAC配件、HYDAC环境监控等。

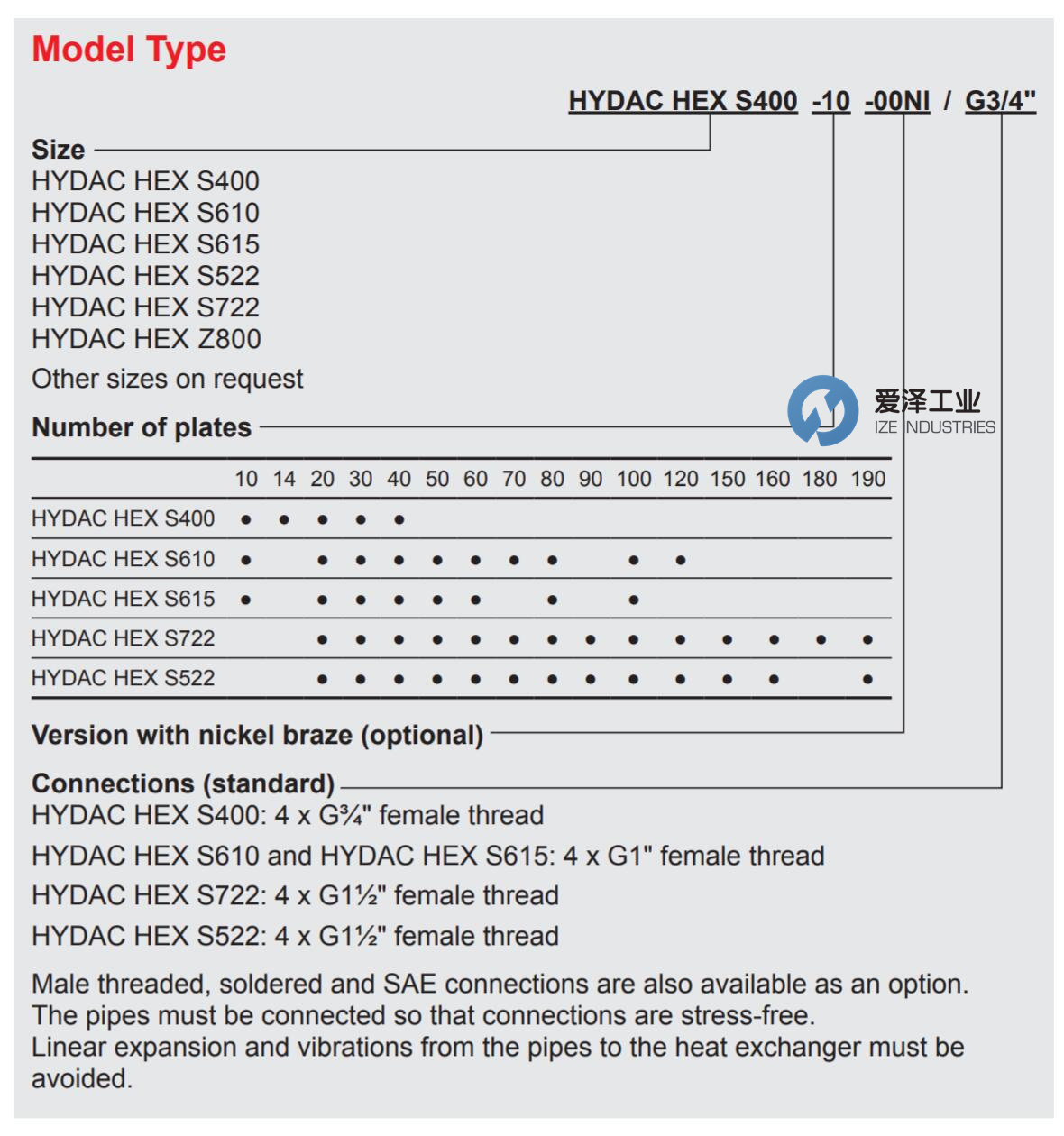

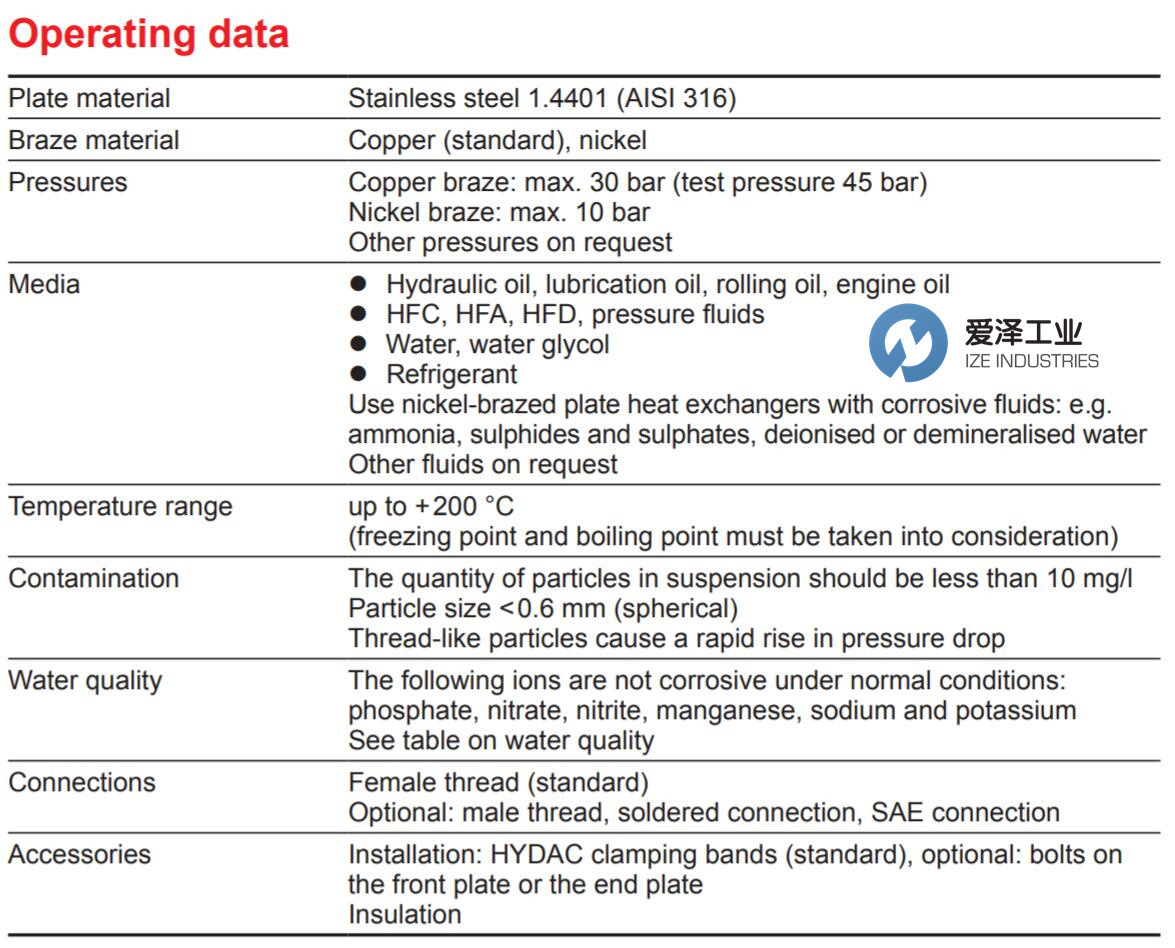

HYDAC换热器HEX系列产品参数

HYDAC换热器HEX系列产品介绍及选型

Plate heat exchangers are used wherever thermal energy (heat) has to be transferred from one fluid to another. The advantage is that they can maintain the fluid temperature at a very low and stable level - depending on the temperature of the coolant.

Plate heat exchangers consist of a stack of stamped heat exchange plates which are either brazed together or bolted togeher in a frame with gaskets.

The design and construction of the brazed plate heat exchangers are particularly compact and efficient. The heat transfer plates are made in stainless steel and are brazed with copper as standard. For use with aggressive media, nickel braze can also be used.

Copper brazed plate heat exchangers are pressure resistant up to 30bar, nickel brazed up to 10bar. Special models are however also suitable for higher pressures.

Hxxx-Liquid

Gasketed plate heat exchangers are particularly suitabel for large flows and high cooling capacities. The stack of heat transfer plates and gaskets is clamped together with bolts in a frame.

This means that the plate heat exchanger can also be dismantled for cleaning and maintenance. Furthermore it is possible to add more plates at a later date to achieve a higher capacity.

Applications

A plate heat exchanger can be used wherever there should be heat transfer between two fluids.

板式换热器用于热能（热量）必须从一种流体传递到另一种流体的地方。优点是它们可以将流体温度保持在非常低且稳定的水平 - 取决于冷却剂的温度。

板式换热器由一堆冲压的热交换板组成，这些板要么钎焊在一起，要么用螺栓固定在一个带有垫圈的框架中。

钎焊板式换热器的设计和结构特别紧凑和高效。传热板由不锈钢制成，标准铜焊。对于腐蚀性介质，也可以使用镍钎焊。

铜钎焊板式换热器的耐压可达 30bar，镍钎焊可达 10bar。然而，特殊型号也适用于更高的压力。

Hxxx-液体

垫片板式换热器特别适用于大流量和高冷却能力。传热板和垫圈的堆叠通过框架中的螺栓夹紧在一起。

这意味着板式换热器也可以拆卸进行清洁和维护。此外，可以在以后添加更多板以实现更高的容量。

应用

板式换热器可用于两种流体之间需要传热的任何地方。

HYDAC换热器其他常见型号：

HYDAC HEX S610-50-00/G3/4”

HYDAC HEX S610-10-00/G1"

HYDAC HEX S610-20-00/G1"

HYDAC HEX S610-30-00/G1"

HYDAC HEX S610-40-00/G1"

HYDAC HEX S610-50-00/G1"

HYDAC HEX S610-60-00/G1"

HYDAC HEX S610-70-00/G1"

HYDAC HEX S610-80-00/G1"

HYDAC HEX S610-100-00/G1"

HYDAC HEX S610-120-00/G1"

HYDAC Preheaters NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于HYDAC换热器HEX S610-50-00/G3/4”的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website: www.ize-industries.com.

HYDAC换热器HEX系列HEX S610-50-00/G3/4”介绍
