HYPERTAC连接器YCX0315-002AH

HYPERTAC是电子元器件供应商SMITHS集团旗下的连接器品牌，其工厂遍布英国、法国、意大利、德国和德国，为用户提供高性能的PCB连接器、圆型或D型设备间连接器、模块化连接器及相关解决方案。

主营产品：

HYPERTAC连接器

HYPERTAC插针

HYPERTAC接头

HYPERTAC模组

HYPERTAC插头

HYPERTAC插座

HYPERTAC滤波器

HYPERTAC连接器YSK系列产品参数

HYPERTAC连接器YCX0315产品介绍

Smiths Interconnect’s N Series high density, modular rack and panel connectors employ a do-it-yourself system based on the principle of building blocks. The N Series system is composed of two elements: modules and frames. Modules of various styles and contact types, including signal and coaxial, can be combined into custom arrangements within a single connector frame. This allows the user to build a connector that addresses and fulfills their exact requirements with off-the-shelf components.

Ideal for rugged and rack and panel applications, the N Series connectors utilize the unparalleled performance of Hypertac® hyperboloid contact technology to provide high cycle life, low insertion/extraction forces and immunity to shock and vibration. This ensures both smooth and easy mating and maximum performance in connectors with large quantities of contacts.

The contacts are mounted in small plastic blocks and are removable for easy assembly and repair. The frames which hold the modules in position range from basic, only consisting of two side rails and end caps, to more complex, including Jackscrews, hoods and cable clamps. To conform to almost any combination of modules, all frames are available in numerous lengths. With the N Series, specially designed connectors can be purchased quickly and inexpensively, eliminating the extra cost and delay of custom tooling.

Smiths Interconnect的N系列高密度、模块化机架和面板连接器采用基于构建块原理的DIY系统。N系列系统由两个元素组成：模块和框架。各种样式和触点类型（包括信号和同轴）的模块可以组合成单个连接器框架内的自定义布置。这允许用户构建一个连接器，该连接器可以使用现成的组件解决并满足他们的确切要求。

N系列连接器非常适合坚固耐用的机架和面板应用，利用 Hypertac双曲面接触技术的性能提供高循环寿命、低插入/拔出力以及抗冲击和振动能力。这确保了具有大量触点的连接器的顺利和轻松插接以及*大性能。

触点安装在小塑料块中，可拆卸，便于组装和维修。将模块固定到位的框架从仅由两个侧轨和端盖组成的基本框架到更复杂的框架，包括起重螺钉、罩和电缆夹。为了适应几乎任何模块组合，所有框架都有多种长度可供选择。使用 N 系列，可以快速、廉价地购买专门设计的连接器，从而消除定制工具的额外成本和延迟。

HYPERTAC连接器YSK系列其他常见型号：

HYPERTAC YCX0315-002AH

HYPERTAC YCX0315-019AH

HYPERTAC YCX0315-001AH

HYPERTAC YCX0315-004H

HYPERTAC YCX0315-018H

HYPERTAC YCX0315-003H

HYPERTAC sockets NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于HYPERTAC连接器YCX0315-002AH的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for HYPERTAC products, please feel free to dial 0086-21-3100 6702/ send request email to  / browse our website:www.ize-industries.com.

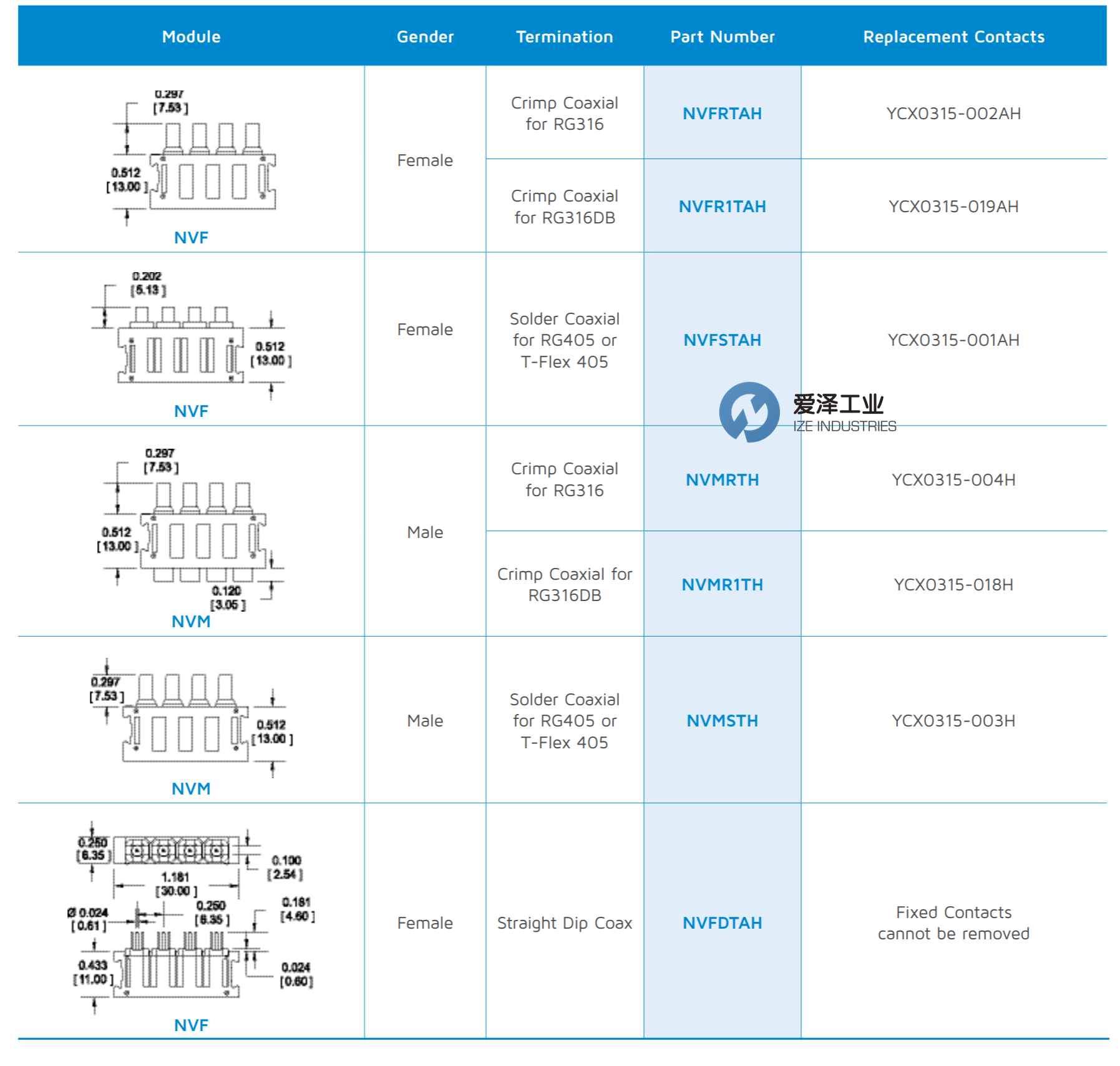

HYPERTAC连接器YCX0315-002AH产品参数
