• AIRTROL压力调节器R-921-15

    详细信息

     品牌:AIRTROL  型号:15  加工定制:否
     外形尺寸:- mm 重量:- kg 电源电压:- v
     测量范围:-  用途:-

    AIRTROL创立于1977年,至今仍由家族所有和经营。自成立以来,AIRTROL一直提供高质量的精密微型气动元件。AIRTROL的微型气动元件系列设计用于需要小尺寸,轻便和高精度的轻至中型应用。典型应用包括医疗和牙科设备,实验室/分析仪器,航空航天,HVAC应用,测试设备以及过程控制/自动化。



    AIRTROL产品有:开关,精密孔口,稳压器与比较器等。



    AIRTROL压力调节器R-900系列技术参数

    SPECIFICATIONS



    R-900 SERIES



    REGULATOR TYPE

    Constant Bleed, Relieving

    WETTED MATERIALS

    Polysulfone, Buna-N, EPDM, Acetal, Polyurethane, Stainless steel

    SUPPLY CONSUMPTION

    < 9 SCIM (150 cc/min) @ 30 PSI (207 kPa) supply
    < 21 SCIM (350 cc/min) @ 100 PSI (689 kPa) supply

    MAX SUPPLY

    150 PSI (1.03 MPa)

    TEMPERATURE RANGE

    40° – 150° F (4° – 66° C)

    EFFECT OF SUPPLY VARIATION

    < 0.07 PSI (0.48 KPa) Per 10 PSI (68.9 kPa) supply change When dead-ended

    REPEATABILITY

    < +/- 0.1 PSI (0.69 kPa) when supply is removed and re-applied

    SENSITIVITY

    1″ H2O (0.25 kPa)

    MAXIMUM FLOW

    2.3 cu.ft./min. (65 LPM)

    RELIEF CAPACITY

    0.5 cu.ft./min. (14 LPM) with outlet 5 PSI (34.5 kPa) above set-point

    RECOMMENDED FILTRATION

    5 micron

    R-910 SERIES

    REGULATOR TYPE

    Non-bleed, non-relieving
    Note: R-910 series regulators are not recommended for dead-end, no flow applications. A downstream relief of at least 20 cc/min is recommended.

    REPEATABILITY

    < +/- 0.25 PSI (1.72 kPa) when supply is removed and re-applied

    EFFECT OF SUPPLY VARIATION

    < 0.1 PSI (0.69 kPa) Per 5 PSI (34.5 kPa) supply change
    All other specifications remain the same as the R-900 Series

    R-920 SERIES

    REGULATOR TYPE

    Non-bleed, relieving

    SUPPLY CONSUMPTION (see note)

    < 0.3 SCIM (5 cc/min.)

    REPEATABILITY

    < +/- 0.25 PSI (1.72 kPa) when supply is removed and re-applied

    EFFECT OF SUPPLY VARIATION

    < 0.1 PSI (0.69 kPa) per 5 PSI (34.5 kPa) supply change

    SENSITIVITY

    2″ H2O (0.5 kPa)
    All other specifications remain the same as the R-900 Series



    AIRTROL压力调节器R-900系列介绍

    R-900系列稳压器专为要求微型尺寸,轻巧和精密的应用而设计。10-32端口可容纳各种微型配件,包括Airtrol组件B-062和B-125倒钩配件。



    The R-900 Series regulators are designed for applications requiring miniature size, light weight, and precision. 10-32 ports accommodate a wide range of miniature fittings, including Airtrol Components B-062 and B-125 barbed fittings.

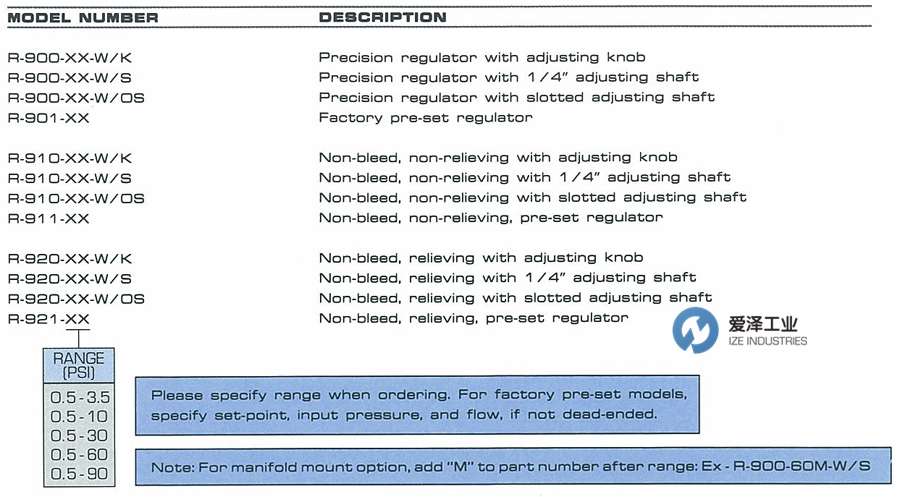

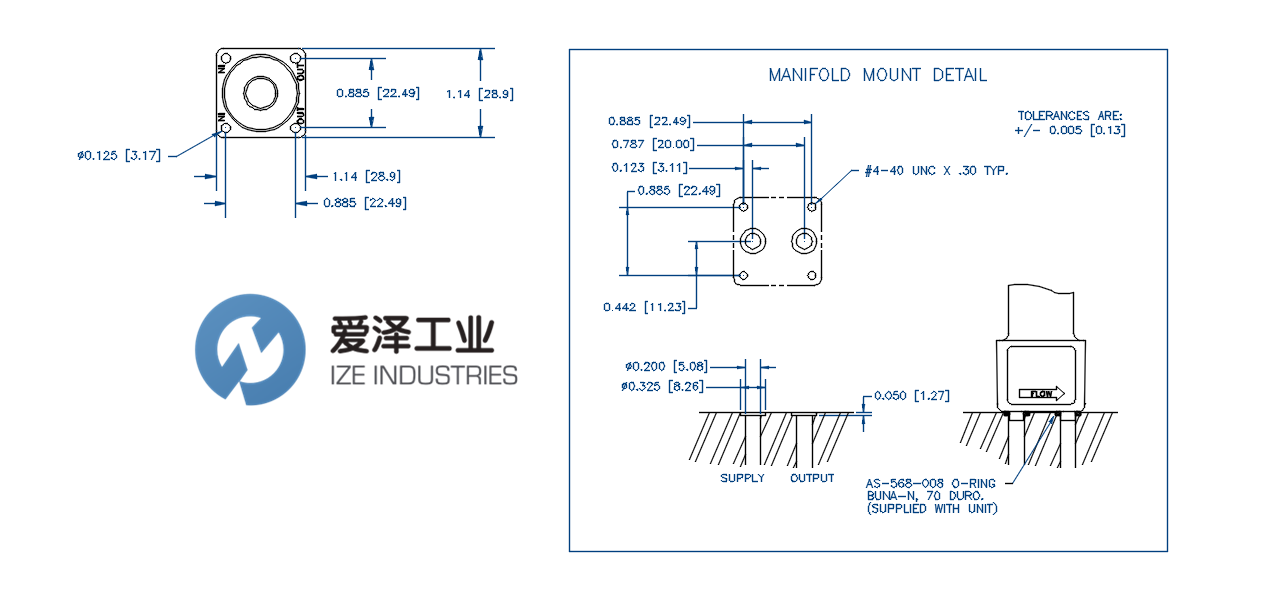

    AIRTROL压力调节器R-900系列产品选型及尺寸图



    AIRTROL压力调节器R-900系列其他常用型号:

    AIRTROL R-900-60-W / K

    AIRTROL R-900-60W / S

    AIRTROL R-900-30

    AIRTROL R-900-30

    AIRTROL R-900-10W / OS

    AIRTROL R-900-60-W / K

    AIRTROL R-900-90W / OS

    AIRTROL R-900-60W / S

    AIRTROL R-900-3.5W / K

    AIRTROL R90090WK

    AIRTROL R-900-60W / OS

    AIRTROL R-900-3.5W / S

    AIRTROL R-900-30W / OS

    AIRTROL R-900-10W / S

    AIRTROL R-900-10W / K

    AIRTROL R-900-90

    AIRTROL R-900-30-W / K-B85

    AIRTROL R-900-90W / S

    AIRTROL R-900-3.5W /OS

    AIRTROL R-900-30W / S

    AIRTROL R-900-30-W / K

    AIRTROL R-900-10

    AIRTROL R-921-15



    AIRTROL MINIATURE PRECISION PRESSURE REGULATOR NEW + ORIGINAL+ ONE YEAR WARRANTY



    爱泽工业成立于2010年,定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。



    如果有任何关于AIRTROL压力调节器R-921-15的疑问,请随时与我们电联,( ),我们将尽全力解决您的问题。



    If you have any question for AIRTROL products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website: www.ize-industries.com.



    AIRTROL压力调节器R-921-15参数介绍
