BUSAK+SHAMBAN(B+S)耐磨环GR7302650-C380

TRELLEBORG特瑞堡密封系统成立于1952年，已收购德国BUSAK+SHAMBAN。

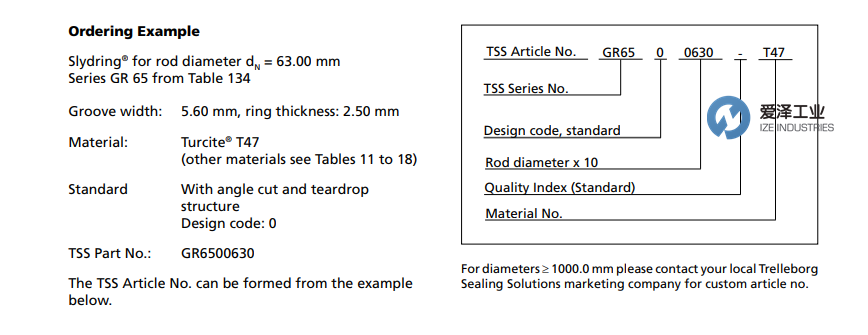

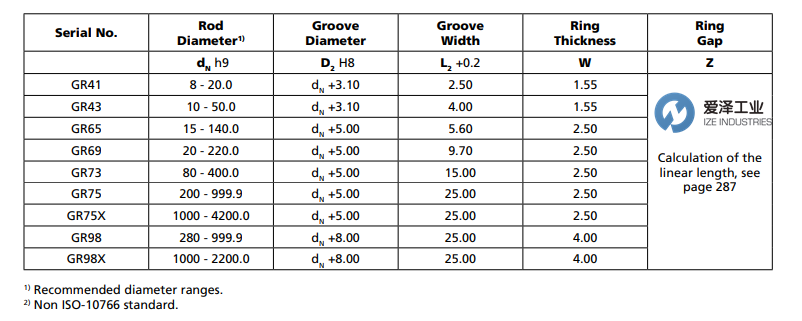

BUSAK+SHAMBAN(B+S)耐磨环GR7302650-C380产品参数

BUSAK+SHAMBAN(B+S)耐磨环产品介绍及选型

The purpose of polymer bearings is to guide the piston and rod within cylindrical applications, absorbing any transverse forces which may occur. They prevent metal-tometal contact, optimizing the performance of the sealing system.

Bearings are needed to protect primary seal components and hardware so optimum sealing performance and service life can be achieved.

Cost-effective, polymer bearings are very wearresistant, providing long service life. They offer high load bearing capacity in static and dynamic operation, have good friction characteristics and dampen mechanical vibrations. They also eliminate local stress concentrations, galling between components and hydrodynamic problems in the guide system. In addition, they protect against the diesel effect where combustion of pockets of oil vapor caused by rapid changes of pressure can damage seals.

Designs

Four different types of bearing materials under the brand name Slydring® are available depending on application demands:

- Highly wear-resistant, low-friction, specially modified Turcon® PTFE based materials. For low to medium loads.

- Orkot® fabric composite materials for high loads and transverse forces.

- Zurcon® high-modulus thermoplastic provides long service life in high loads and temperatures.

- HiMod® high-modulus thermoplastic for use in extreme working conditions.

Bearing Features

Though bearings appear to be simple in design, their function of preventing metal-to-metal contact within a sealing system is complex. Selection of the correct material and configuration is critical to ensure optimized performance and service life.

聚合物轴承的目的是在圆柱形应用中引导活塞和杆，吸收可能发生的任何横向力。它们防止金属与金属的接触，优化密封系统的性能。

需要轴承来保护主要密封组件和硬件，从而实现*佳密封性能和使用寿命。

具有成本效益的聚合物轴承非常耐磨，使用寿命长。它们在静态和动态操作中提供高承载能力，具有良好的摩擦特性并抑制机械振动。它们还消除了局部应力集中、部件之间的磨损和导向系统中的流体动力学问题。此外，它们还可以防止柴油效应，因为压力快速变化引起的油蒸汽袋燃烧会损坏密封件。

设计

根据应用需求，可提供四种不同类型的 Slydring® 品牌轴承材料：

- 高度耐磨、低摩擦、特别改性的 Turcon® PTFE 基材料。适用于中低负载。

- Orkot® 织物复合材料，适用于高载荷和横向力。

- Zurcon® 高模量热塑性塑料在高负荷和高温下提供长使用寿命。

- HiMod® 高模量热塑性塑料，适用于极端工作条件。

轴承特点

尽管轴承的设计看似简单，但它们在密封系统内防止金属与金属接触的功能却很复杂。选择正确的材料和配置对于确保优化的性能和使用寿命至关重要。



BUSAK+SHAMBAN(B+S)耐磨环其他常见型号：

BUSAK+SHAMBAN GR7302650-C380

BUSAK+SHAMBAN GR7502000

BUSAK+SHAMBAN GR7302100

BUSAK+SHAMBAN GR7302200

BUSAK+SHAMBAN GR7502200

BUSAK+SHAMBAN GR7502300

BUSAK+SHAMBAN GR7502400

BUSAK+SHAMBAN GR7302500

BUSAK+SHAMBAN GR7502500

BUSAK+SHAMBAN GR7302800

BUSAK+SHAMBAN GR7502800

BUSAK+SHAMBAN GR9802800

BUSAK+SHAMBAN GR7503000

BUSAK+SHAMBAN(B+S) Sealing ring NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于BUSAK+SHAMBAN(B+S)耐磨环GR7302650-C380的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for BUSAK+SHAMBAN(B+S) products, please feel free to dial 0086-21-3100 6702/ send request email to  / browse our website:www.ize-industries.com.

BUSAK+SHAMBAN(B+S)耐磨环GR7302650-C380产品参数
