- VENANZETTI VIBRAZIONI电机VV10N/2D1
详细信息
品牌:VENANZETTI VIBRAZIONI 加工定制:否 型号:2D1 Venanzetti Vibrazioni Milano 优先考虑组件和*终产品的质量,精确的设计以及技术创新,以确保广泛的振动器能够满足*苛刻的市场要求。
VENANZETTI VIBRAZIONI主营产品应用:
VENANZETTI VIBRAZIONI电动振动器
VENANZETTI VIBRAZIONI防爆电动振动器
VENANZETTI VIBRAZIONI电机

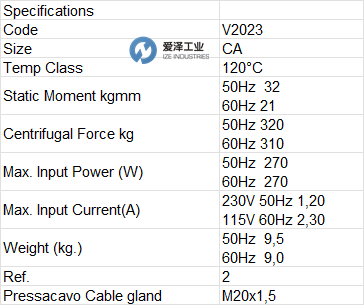

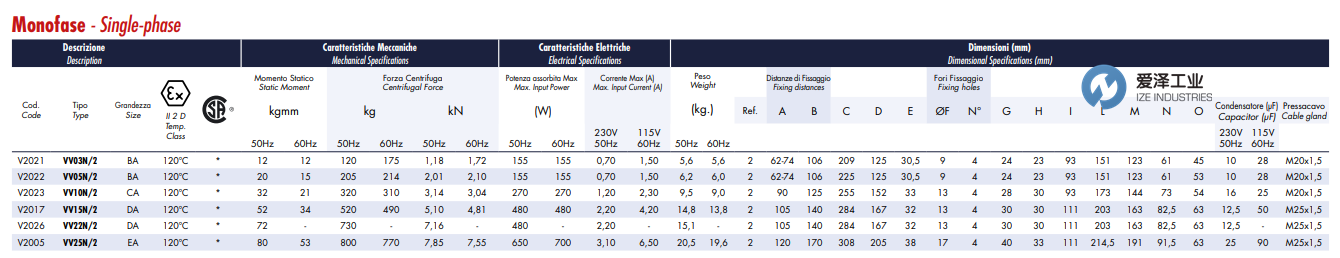

VENANZETTI VIBRAZIONI电机VV10N/2D1产品参数
VENANZETTI VIBRAZIONI电机VV系列产品介绍
一般特征
电源:标准三相230 / 400V,50 Hz。根据要求,三相42至690V,50/60 Hz。在2极和4极的*大EA可用单相115V,50/60 Hz和230V,50/60 Hz。
•工作温度:-20°C至+ 40°C。
•设计用于100%离心力CF的连续工作(S1)。
•标准机械防护等级IP66。
•符合ATEX 2014/34 / UE 易燃粉尘环境指令的标准范围,区域21和22,类别II2D,tA21 IP 66。
•电机外壳为铝制,*大尺寸为LA,球面铸铁为所有其他尺寸。覆盖所有范围的AISI 304不锈钢重量。
•超高强度钢制轴。
•权重调节系统,刻度指示器从CF的0到100%。特殊装置,避免错误调整砝码。
•用环氧粉末进行标准喷漆(厚度为120 µm),并在200°C的烘箱中聚合。
•特殊执行轴承,可在100%CF下连续运行。
•用于润滑脂密封的迷宫系统:确保正确和长寿的润滑。但是,可以通过随附的GA规格的专用润滑脂杯再次润滑。
•通过VACUUM或DROP BY DROP系统保护定子。绝缘等级F(155°C)。
•根据要求,热敏电阻PTC 130°C*高为LA尺寸,MA为标准尺寸。
General features
Power supply: standard three-phase 230/400V, 50 Hz. On request three-phase 42 to 690V, 50/60 Hz. Up to size EA at 2 and 4 poles available single phase 115V, 50/60 Hz and 230V, 50/60 Hz.
• Operating temperature: from -20°C to +40°C.
• Designed for continuous duty (S1) with 100% centrifugal force CF.
• Standard mechanical protection IP66.
• Standard range in compliance with ATEX 2014/34/UE Directive for combustible dust atmospheres, zone 21 and 22 category II2D, tD A21 IP 66.
• Motor casing in aluminium up to size LA included, in spheroidal cast iron for all other sizes. Cover weights in stainless steel AISI 304 for all the range.
• Oversized shaft in highly resistant steel.
• Weights regulation system with graduated indicator from 0 to 100% of the CF. Special device to avoid wrong adjustment of weights.
• Standard painting (120 µm thickness) with epoxy powder, polymerized in oven at 200°C.
• Special execution bearings, for continuous operation at 100% CF.
• Labyrinth system for grease seal: ensures correct and LONG LIFE lubrication. However, it is possible to grease again through special grease cups from size GA included.
• Protection of the stator with VACUUM or DROP BY DROP system. Insulation Class F (155°C).
• Thermistor PTC 130°C at request up to size LA, standard from size MA.
VENANZETTI VIBRAZIONI电机VV系列其他常用型号:VENANZETTI VIBRAZIONI VV10N/2D1
VENANZETTI VIBRAZIONI VV03N/2
VENANZETTI VIBRAZIONI VV05N/2
VENANZETTI VIBRAZIONI VV10N/2
VENANZETTI VIBRAZIONI VV15N/2
VENANZETTI VIBRAZIONI VV22N/2
VENANZETTI VIBRAZIONI VV25N/2
VENANZETTI VIBRAZIONI Electric vibrators NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于VENANZETTI VIBRAZIONI电机VV10N/2D1的疑问,请随时与我们沟通( )。我们将尽全力解决您的问题。
If you have any question for VENANZETTI VIBRAZIONI products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website: www.ize-industries.com.
