NOKEVAL转换器6580-4/20mA

NOKEVAL创立于1980年，致力于无线技术已有四十多年。NOKEVAL开发和制造物联网测量设备和测量解决方案以及满足各行业需求的云服务。

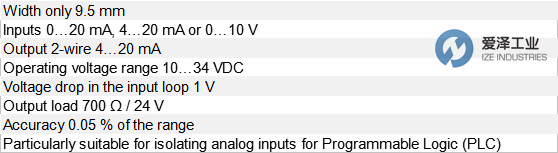

NOKEVAL转换器6580技术参数



NOKEVAL转换器6580介绍

Nokeval设计了一种非常纤薄、仅9毫米、带有电流隔离的2线转换器。转换器由输出2线回路供电。它特别适合隔离可编程逻辑的模拟输入，因为那些提供电源和接线很简单。将电源连接到输出侧的想法消除了传统隔离器的典型问题，如输出负载小和输入侧压降高。三种输入类型可用：0..20和4..20 mA或0..10V，输出始终为4..20毫安。输出负载为700欧姆，采用24 VDC电源。可以通过提高输出环路电压来增加输出负载。输入电压降，仅1V，可将多个设备连接到同一输入回路。转换器交付时已校准至满量程的0.05 %精度。前盖有零位和跨度电位器，用于*终重新校准。标准6580的阻尼为10 ms。

Nokeval has designed a very slim, 9 mm only, 2-wire converter with calvanic isolation. Converter is powered by output 2-wire loop. It is specially suited to isolate analog inputs of programmable logics because those supply the power and wiring is simple.' The idea of connecting power supply to output side eliminates typical problems of conventional isolators like small output load and high input side voltage drop.Three input types are available: 0..20 and 4..20 mA or 0..10V, output is always 4..20 mA. Output load is 700 ohm by 24 VDC power supply. You can increase output load by rising output loop voltage. Input voltage drop, 1 V only, enables connection of several devices to same input loop. Converter is delivered calibrated to 0.05 % accuracy of full scale.Front cover has zero and span potentiometers for eventually recalibration. The damping of standard 6580 is 10 ms.

NOKEVAL转换器6580其他常用型号：

NOKEVAL 6580-4/20mA

NOKEVAL 6580-0/20mA

NOKEVAL 6580-0/10V

NOKEVAL converter NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业集产品开发、设计、制造、销售于一体，代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于NOKEVAL转换器6580-4/20mA的疑问，请随时致电我们，爱泽工业（86- ）。我们将尽全力解决您的问题。

If you have any question for NOKEVAL products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website: www.ize-industries.com.

NOKEVAL转换器6580-4/20mA技术参数及介绍
