BUEHLER取样气泵4261721199000

50年来，BUHLER的员工一直在“分析技术”和“流体控制”的业务领域开发，制造和销售组件和系统解决方案。

主要经营产品有：
BUHLER气体采样探头
BUHLER取样气泵
BUHLER气体冷却器
BUHLER湿度传感器
BUHLER流量计
BUHLER温度监控
BUHLER油/空气冷却器

BUEHLER取样气泵4261721199000技术参数


BUEHLER取样气泵P2.X ATEX系列产品介绍
即使在化学工业、石油化学或生物化学的爆炸性系统中，气体分析也是安全运行的关键。这些领域使用的许多分析过程需要样品气体的提取和特殊调节。
采样气体泵将采样气体从采样点输送到调节系统。在这些特殊设计的泵的主要项目是聚四氟乙烯单件套管。
结合泵头，也是单件的，这种解决方案提供了高抵抗特别具有侵略性的样品气体。转动泵头可以输送含有冷凝油的气体没有问题。
根据需求，有几种不同的型号都有不同的驱动器。这些版本允许安装一个联轴器法兰，将泵头安装在加热的壳体内，远离电机，而电机仍保持在壳体外。
该系列可用于各种EX危险和分类区，流量高达700L/h。

简单，坚固的设置
易于更换阀门
单件波纹管
用于腐蚀性样品气体
用凝析油输送样品气体
寿命长
可选可调旁通阀
聚四氟乙烯和VA泵体的旁通阀
低噪声排放
带安装支架
ATEX版本类别2

Even in explosive systems in the chemical industry, petrochemistry or biochemistry, gas analysis is key for safe operation. Many of the analysis processes used in these fields require extracting and special conditioning of the sample gas.
Sample gas pumps convey the sample gas from the sampling point to the conditioning system. The main item in these specially designed pumps is the PTFE single-piece bellow.
Combined with the pump head, also single-piece, this solution provides high resistance against particularly aggressive sample gas. Turning the pump head allows gas with condensate to be conveyed without a problem.
There are several different models with separate drive, depending on the requirements. These versions allow the installation of a coupling flange to install the pump heads inside heated housings away from the motor whilst the motor remains outside the housing.
The series are available for various EX hazard and classification zones with flow rates up to 700 L/h.

Easy, sturdy set-up
Easy to replace valves
Single-piece bellows
For aggressive sample gas
Conveys sample gas with condensate
Long life
Pump head with optional adjustable bypass valve
Bypass valve for PTFE and VA pump body
Low noise emission
With mounting bracket
ATEX versions category 2

BUEHLER取样气泵P2.X ATEX系列选型




BUEHLER取样气泵P2.X ATEX系列其他常用型号：
BUEHLER 4261721199000
BUEHLER 4261711199000
BUEHLER 4261821199000
BUEHLER 4261811199000
BUEHLER 4261921199000
BUEHLER 4261911199000
BUEHLER 4261721119000
BUEHLER 4261721129000
BUEHLER 4261721139000
BUEHLER 4261721149000

BUEHLER Sample gas pumps NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于BUEHLER取样气泵4261721199000的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for BUEHLER products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

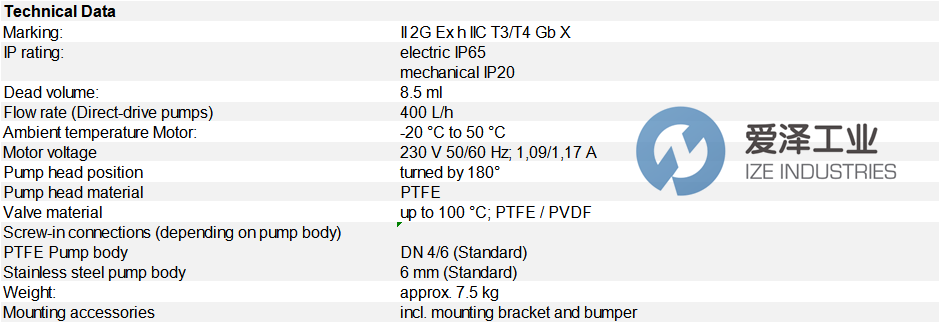

BUEHLER取样气泵P2.X ATEX系列4261721199000技术参数及选型
