ETTUS RESEARCH放大器USRP B200-MINI-I

ETTUS RESEARCH自2010年成为 NI 品牌，是优质的软件定义无线电平台供应商，包括通用软件无线电外设 (USRP) 系列产品。

ETTUS RESEARCH放大器USRP B200-MINI系列技术参数


ETTUS RESEARCH放大器USRP B200-MINI系列介绍

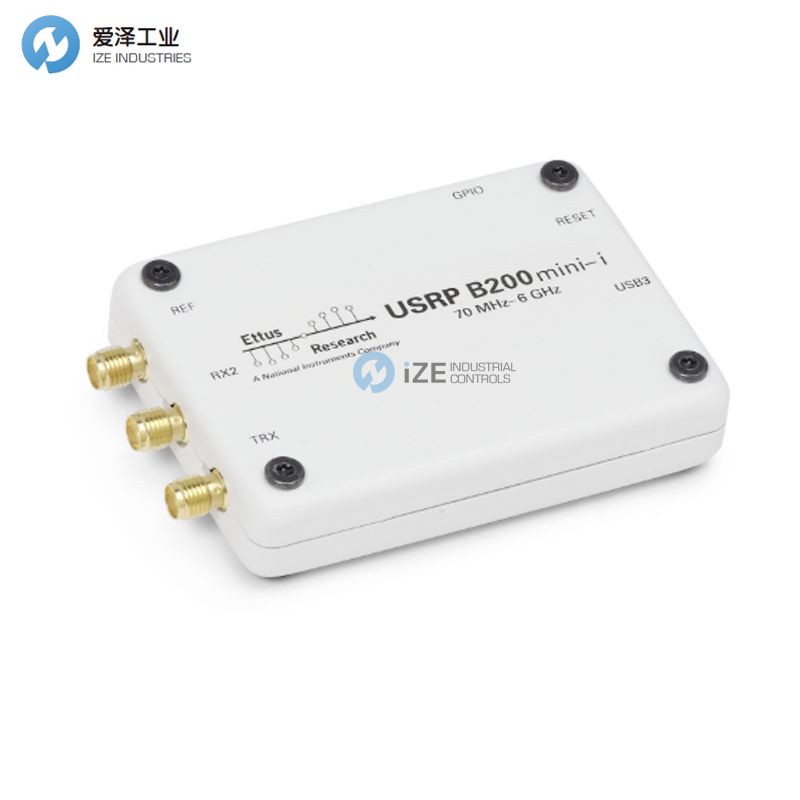

The USRP™ B200mini-i delivers a 1×1 SDR/cognitive radio in the size of a business card. With a wide frequency range from 70 MHz to 6 GHz and a user-programmable, industrial-grade Xilinx Spartan-6 XC6SLX75 FPGA, this flexible and compact platform is ideal for both hobbyist and OEM applications. The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. The USRP B200mini-i also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal. The USRP Hardware Driver™ (UHD) software API supports all USRP products and enables users to efficiently develop applications then seamlessly transition designs between platforms as requirements expand.

Features
Wide frequency range: 70 MHz – 6 GHz
Up to 56 MHz of instantaneous bandwidth
Full duplex operation
User-programmable, industrial-grade Xilinx Spartan-6 XC6SLX75 FPGA
Fast and convenient bus-powered USB 3.0 connectivity
Synchronization with 10 MHz clock reference or PPS time reference
GPIO and JTAG for control and debug capabilities
Full aluminum enclosure
83.3 x 50.8 x 8.4 mm form factor
USRP Hardware Driver™ (UHD) open-source software API version 3.9.0 or later
GNU Radio support maintained by Ettus Research™ through GR-UHD, an interface to UHD distributed by GNU Radio

USRP B200mini-i提供名片大小的1×1 SDR/认知无线电。凭借70 MHz至6 GHz的宽频率范围和用户可编程的工业级 Xilinx Spartan-6 XC6SLX75 FPGA，这个灵活紧凑的平台非常适合业余爱好者和OEM应用。RF前端使用具有56 MHz瞬时带宽的Analog Devices AD9364 RFIC收发器。该板由高速 USB 3.0 连接总线供电，用于将数据流式传输到主机。 USRP B200mini-i还包括用于GPIO、JTAG以及与10 MHz时钟参考或 PPS 时间参考输入信号同步的连接器。USRP Hardware Driver (UHD) 软件 API 支持所有USRP产品，使用户能够高效地开发应用程序，然后随着需求的扩展在平台之间无缝转换设计。

特征
宽频率范围：70 MHz – 6 GHz
高达 56 MHz 的瞬时带宽
全双工操作
用户可编程的工业级 Xilinx Spartan-6 XC6SLX75 FPGA
快速便捷的总线供电 USB 3.0 连接
与 10 MHz 时钟参考或 PPS 时间参考同步
用于控制和调试功能的 GPIO 和 JTAG
全铝外壳
83.3 x 50.8 x 8.4 毫米外形尺寸
USRP Hardware Driver™ (UHD) 开源软件 API 版本 3.9.0 或更高版本
Ettus Research™ 通过 GR-UHD 维护 GNU Radio 支持，GR-UHD 是 GNU Radio 分发的 UHD 接口
