爱泽工业2022年7月部分到货产品专题及库存——SAMSON篇

如下为我司爱泽工业IZE_Industries本月到货SAMSON相关产品，欢迎致电索取样本资料和产品信息。




SAMSON定位器3725-0000000000.00

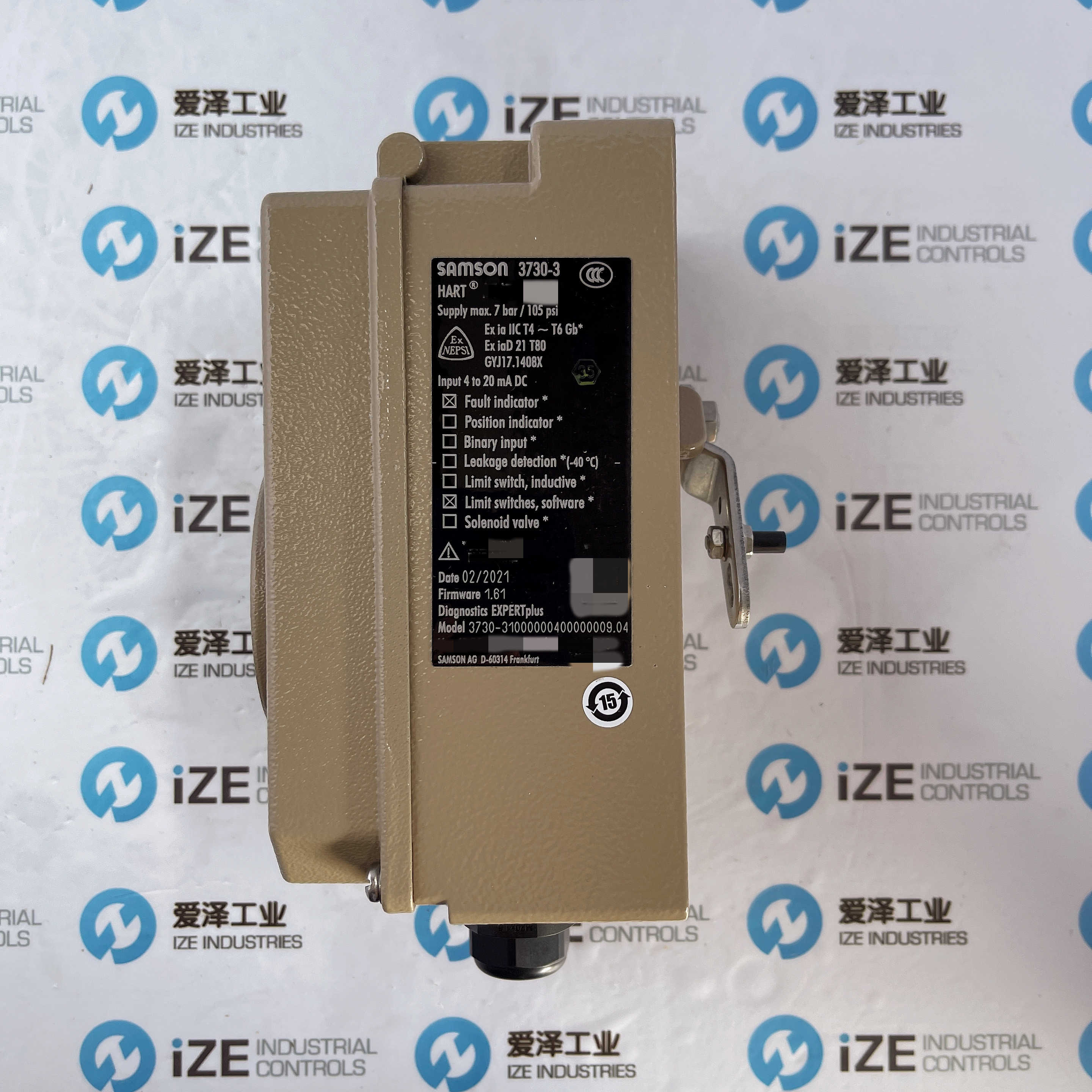

SAMSON定位器3730-31000000400000009.04

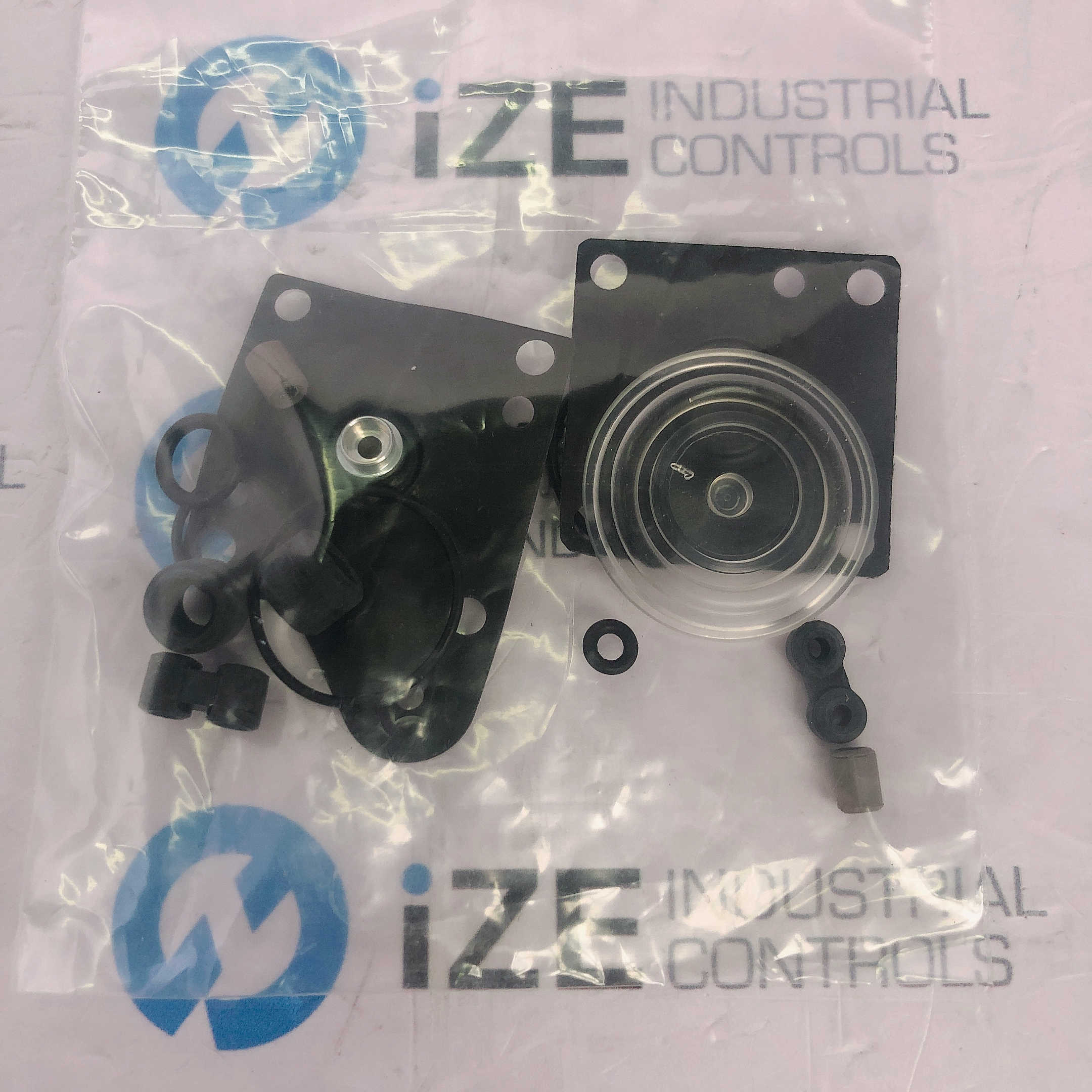

SAMSON维修包1400-6792

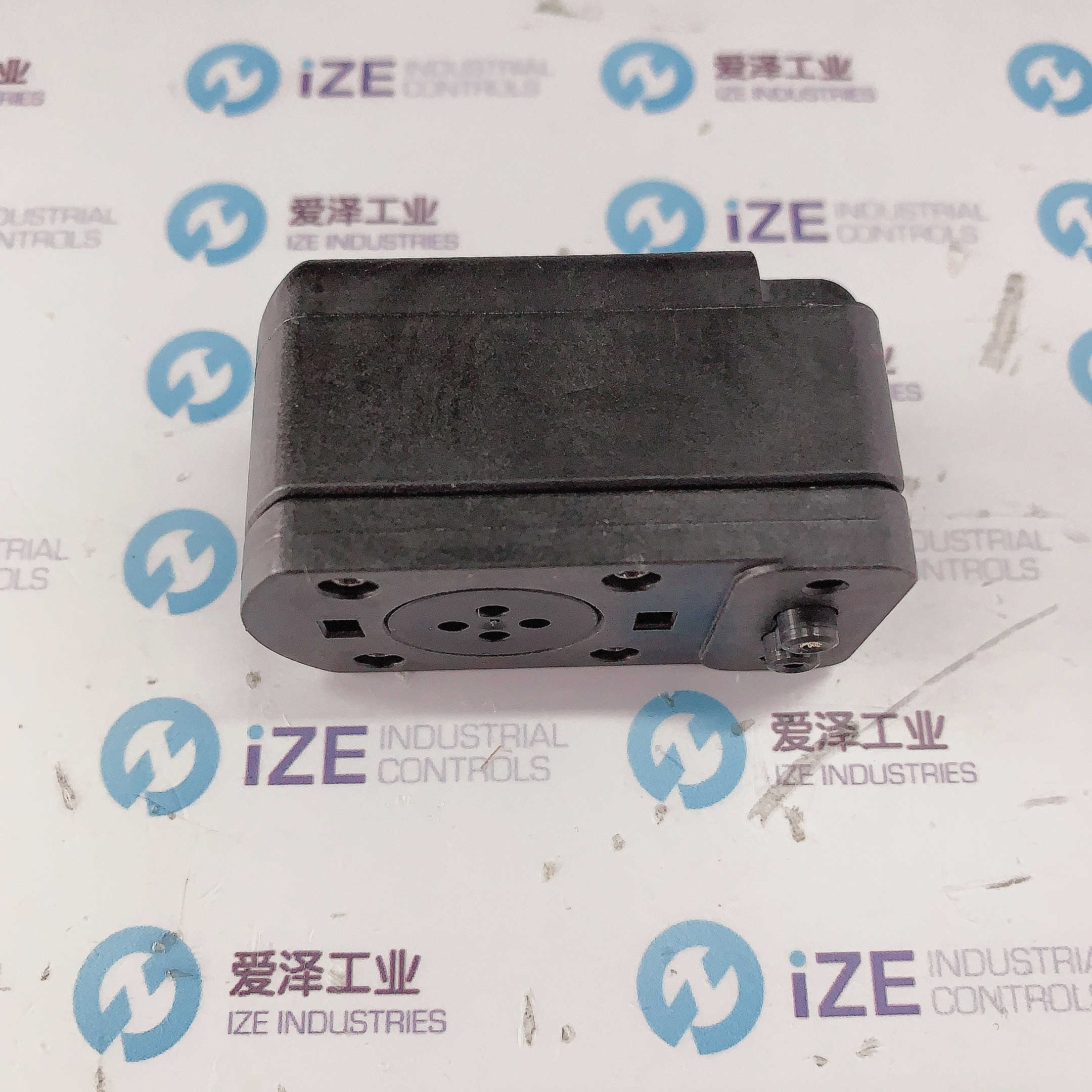

SAMSON转换器6109-100101000000

SAMSON定位器3725系列介绍及选型
特殊功能
−电动气动定位器
−PPA材质外壳
−根据 IEC 60534-6 或 SAMSON 整体附件连接到线性执行器
−根据 VDI/VDE 3845 连接到旋转执行器
−使用 3710 型换向放大器连接到双作用执行器
−使用三个电容键，通过直观的导航菜单轻松操作
−由于可旋转的阅读方向，在任何安装位置都易于阅读
−变量自动启动
−预设参数
−所有参数保存在非易失性 EEPROM 中
−可启动紧闭功能
−自动零位监控
−非接触式位置感应
−不受环境影响和蒸汽锤击的影响

Special features
−Electropneumatic positioner
−Housing of polyphthalamide
−Attachment to linear actuators according to IEC 60534-6 or SAMSON integral attachment
−Attachment to rotary actuators according to VDI/VDE 3845
−Attachment to double-acting actuators with Type 3710 Reversing Amplifier
−Easy operation with intuitive navigation menu using three capacitive keys
−Easy-to-read display in any mounting position thanks to rotatable reading direction
−Variable automatic start-up
−Preset parameters
−All parameters saved in non-volatile EEPROM
−Tight-closing function can be activated
−Automatic zero monitoring
−Non-contact position sensing
−Unaffected by environmental effects and steam hammeringy



SAMSON定位器3730-3系列介绍及选型
特殊功能
−带 HART® 通讯的电动气动定位器
−SAM 数字就绪
−压铸铝或不锈钢外壳
−根据 IEC 60534-6、VDI/VDE 3847 或 SAMSON 一体式附件连接到线性执行器
−根据 VDI/VDE 3845 连接到旋转执行器
−使用 3710 型换向放大器连接到双作用执行器
−用于控制阀的集成 EXPERTplus 诊断
−定位器的任何所需安装位置（但不悬挂）
−简单的一键式菜单驱动操作
−由于可旋转的阅读方向，在任何安装位置都易于阅读
−可使用 TROVIS-VIEW 软件通过 SSP 接口与计算机进行配置
−由于四种不同的初始化模式，可变自动启动
−预设参数，只有偏离标准的值需要调整
−校准的行程传感器，没有易磨损的齿轮
−子（替代）初始化模式允许定位器在紧急情况下在工厂运行时启动，而无需更改阀门位置。
−所有参数保存在非易失性 EEPROM 中
−具有 410 Ω 小电气负载的两线制系统
−可调输出压力限制
−可调紧闭功能
−自动零位监控
−集成温度传感器和运行时间计数器
−两个标准可编程位置警报
−自我诊断
−符合 NAMUR 建议 NE 107 的浓缩状态消息，通过故障报警触点或可选的模拟位置变送器发出
−DTM 文件可用于根据规范 1.2 集成到 FDT 框架应用程序中

Special features
−Electropneumatic positioner with HART® communication
−SAM DIGITAL READY
−Die-cast aluminum or stainless steel housing
−Attachment to linear actuators according to IEC 60534-6, VDI/VDE 3847, or SAMSON integral attachment
−Attachment to rotary actuators according to VDI/VDE 3845
−Attachment to double-acting actuators with Type 3710 Reversing Amplifier
−Integrated EXPERTplus diagnostics for control valves
−Any desired mounting position of the positioner (but not suspended)
−Simple one-knob, menu-driven operation
−Easy-to-read display in any mounting position thanks to rotatable reading direction
−Configurable with a computer over the SSP interface using the TROVIS-VIEW software
−Variable automatic start-up thanks to four different initialization modes
−Preset parameters, only values deviating from the standard need to be adjusted
−Calibrated travel sensor without gears susceptible to wear
−Sub (substitution) initialization mode allows the positioner to be started up in case of emergency whilst the plant is running without having to change the valve position.
−All parameters saved in non-volatile EEPROM
−Two-wire system with small electrical load of 410 Ω
−Adjustable output pressure limitation
−Adjustable tight-closing function
−Automatic zero monitoring
−Integrated temperature sensor and operating hours counter
−Two standard programmable position alarms
−Self-diagnostics
−Messages as condensed state conforming to NAMUR Recommendation NE 107, issued over a fault alarm contact or optional analog position transmitter
−DTM file available for integration into FDT frame applications according to specification 1.2



SAMSON定位器3766系列介绍及选型
特殊功能
−气动或电动气动定位器
−带 6116 型 i/p 转换器的电动气动定位器版本
−压铸铝或不锈钢外壳
−根据 IEC 60534-6 或 SAMSON 整体附件连接到线性执行器
−根据 VDI/VDE 3845 连接到旋转执行器
−紧凑、低维护的设计
−任何可能的安装位置
−对机械振动不敏感
−可逆的作用方向
−出色的动态响应
−正常和分程操作
−可调比例 (P) 带
−出风量可调
−送风量低

Special features
−Pneumatic or electropneumatic positioner
−Version as electropneumatic positioner with Type 6116 i/p Converter
−Die-cast aluminum or stainless steel housing
−Attachment to linear actuators according to IEC 60534-6 or SAMSON integral attachment
−Attachment to rotary actuators according to VDI/VDE 3845
−Compact, low-maintenance design
−Any mounting position possible
−Insensitive to mechanical vibrations
−Reversible direction of action
−Excellent dynamic response
−Normal and split-range operation
−Adjustable proportional (P) band
−Adjustable air output capacity
−Low supply air consumption



SAMSON定位器4765系列介绍及选型
特殊功能
−气动定位器
−压铸铝外壳
−根据 IEC 60534-6 连接到线性执行器
−紧凑、低维护的设计
−任何可能的安装位置
−对机械振动不敏感
−可逆的作用方向
−出色的动态响应
−正常和分程操作
−可调比例 (P) 带
−出风量可调
−送风量低

Special features
−Pneumatic positioner
−Die-cast aluminum housing
−Attachment to linear actuators according to IEC 60534-6
−Compact, low-maintenance design
−Any mounting position possible
−Insensitive to mechanical vibrations
−Reversible direction of action
−Excellent dynamic response
−Normal and split-range operation
−Adjustable proportional (P) band
−Adjustable air output capacity
−Low supply air consumption



SAMSON转换器6111系列介绍及选型
特殊功能
−i/p 转换器
−轻松更换 i/p 模块
−当关闭电子设备被激活时，在特定 mA 值处归零
−无需上游压力调节器即可运行
−塑料外壳

Special features
−i/p converter
−Easy replacement of i/p module
−Zero reset at specific mA value when switch-off electronics are activated
−Operation possible without an upstream pressure regulator
−Plastic housing



SAMSON定位器/转换器/维修包常用型号
SAMSON 3730-310000
SAMSON 3730-31001000400000009.04
SAMSON 3730-3100000040000009.01
SAMSON 3725-1100
SAMSON 3725-113
SAMSON 3725-130
SAMSON 3725-11
SAMSON 3725-0000000000.00
SAMSON 3766-00001100010000.06
SAMSON 3766-0000110000.01
SAMSON 4765-0110031.02
SAMSON 4765-0130011.03
SAMSON 4765- .03
SAMSON 1400-6792
SAMSON 1400-6797
SAMSON 1400-6798
SAMSON 6109-100101000000
SAMSON 6111-0020121712210000.00

如果您需要完整的SAMSON相关技术咨询，请随时致电爱泽工业，或者访问网站,我们将尽全力解决您的问题。
