爱泽工业2022年8月部分到货产品专题及库存——DYNAPAR丨NORTHSTAR丨HENGSTLER编码器篇

如下为我司爱泽工业IZE_Industries本月到货DYNAPAR丨NORTHSTAR丨HENGSTLER编码器相关产品，欢迎致电索取样本资料和产品信息。




DYNAPAR编码器62-AAEF-1024-A0




DYNAPAR编码器HD2520100033A




DYNAPAR（HENGSTLER）编码器HD2521000063S




DYNAPAR编码器HS35R012073A1PS




DYNAPAR编码器HS35R0500D30H04




DYNAPAR编码器ST81024ZC09EVCC




HENGSTLER编码器0566713 AC581212EX.42SCX5849




HENGSTLER编码器AD361217AF.ORBIX:6278




HENGSTLER编码器HC54H5000023A




NORTHSTAR分配器RIMSS2

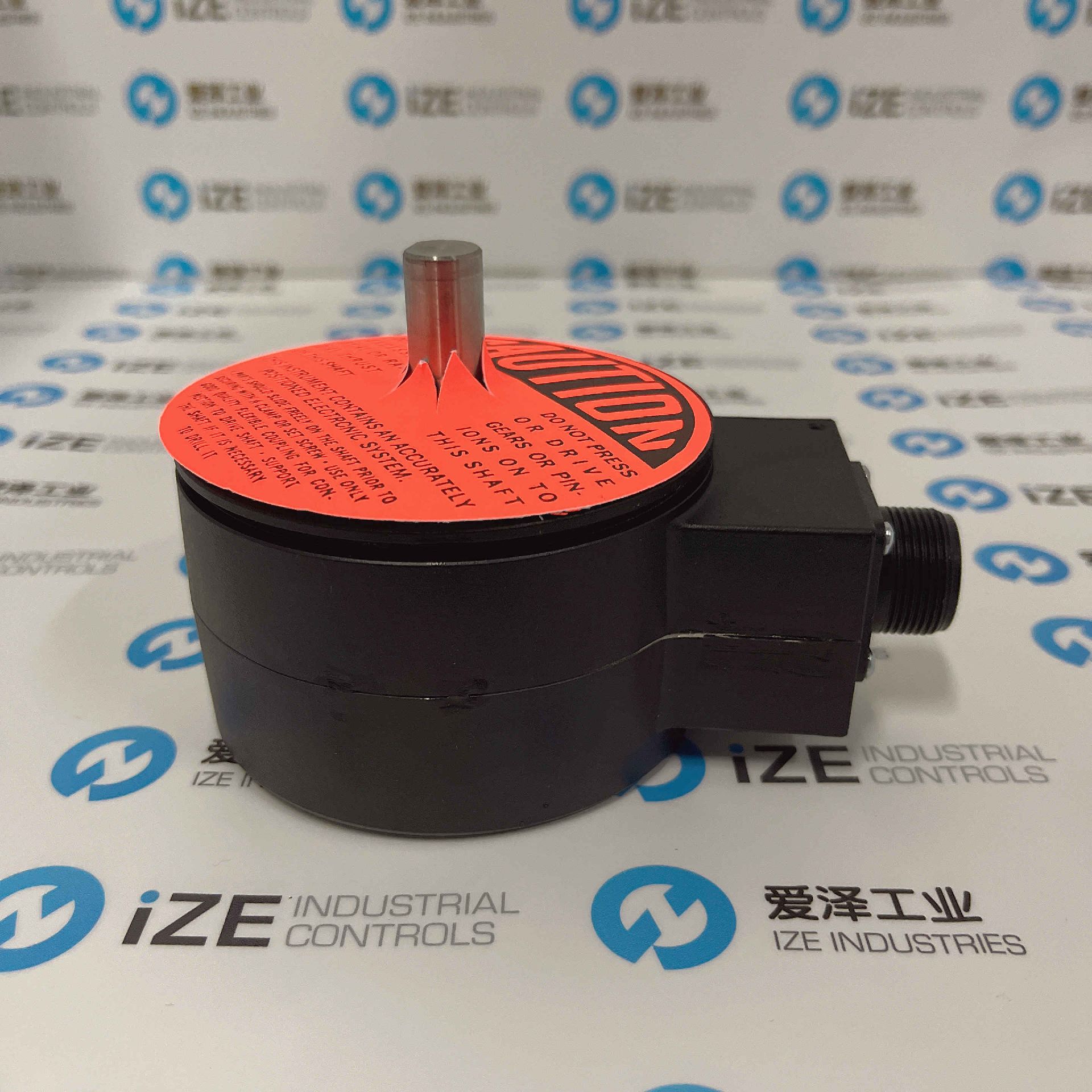

DYNAPAR编码器60系列介绍

60 系列是一款坚固耐用的增量式光学编码器，适用于速度、位置和运动应用。标准机械尺寸 35 封装专为高分辨率应用和恶劣的工业环境而设计。

• 带 1/2" 直径轴的重型轴承
• LED光源
• 坚固的磁盘
• 多种分辨率可供选择，*高可达 2500 PPR
• 伺服环和面安装选项

The Series 60 is a rugged, incremental, optical encoder for speed, position, and motion applications. The standard mechanical size 35 package is designed for high resolution applications and rugged industrial environments.

• Heavy-duty Bearings with 1/2" Diameter Shaft
• LED Optical Light Source
• Unbreakable Disk
• Wide Selection of Resolutions Available up to 2500 PPR
• Servo Ring and Face Mount Options

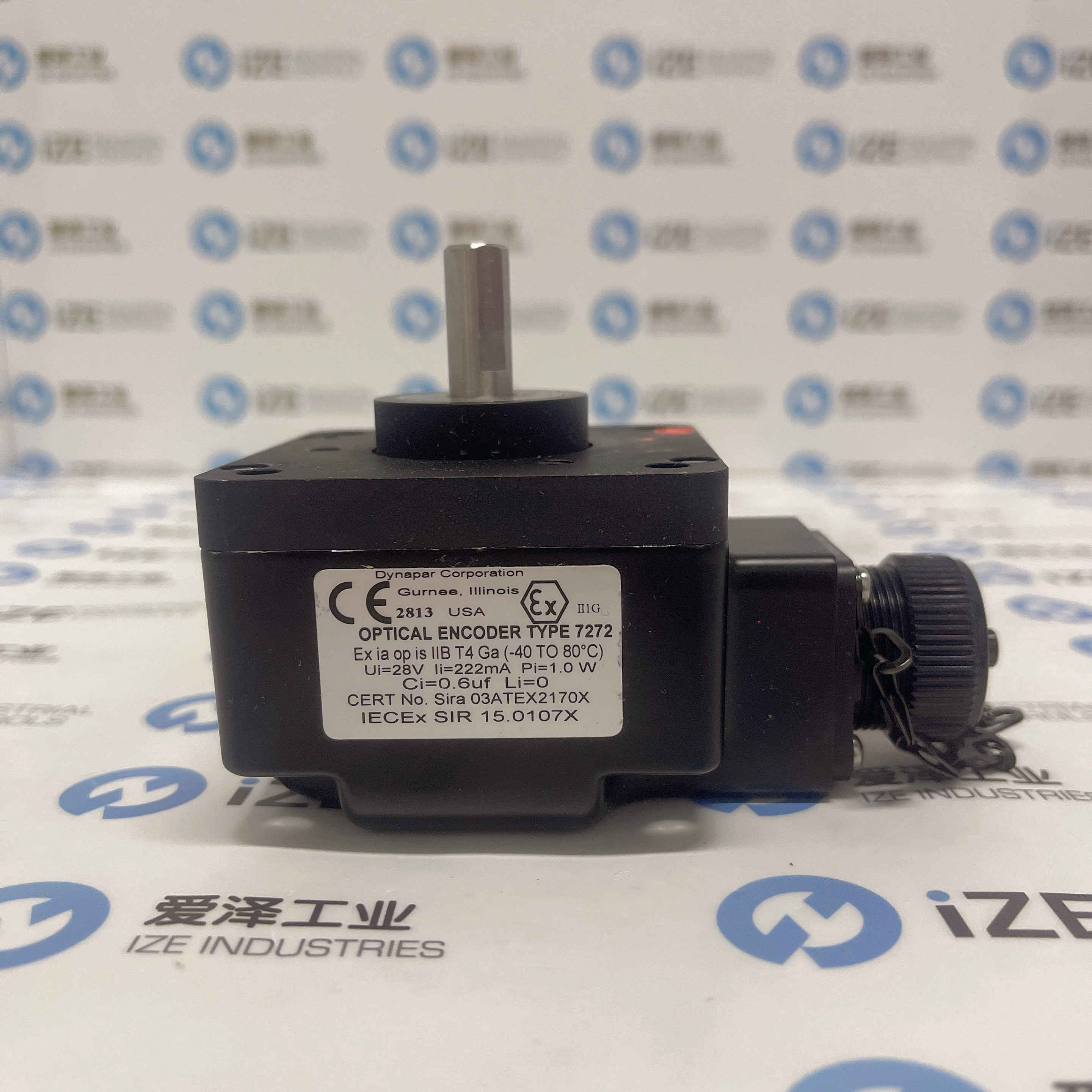

DYNAPAR编码器HD25系列介绍

HD25光学编码器是具有 ATEX 认证输出选项的 2.5" OD 本安编码器。它非常适合需要严格冲洗的腐蚀性环境的机器应用，包括需要高压蒸汽或腐蚀性化学品以满足法规要求的应用。这款紧凑型专用编码器旨在提供超过 IP66/IP67 和 NEMA 6 外壳要求，PPR 范围高达 5000。

• 具有单或双隔离输出的 SIZE 25 危险型编码器
• 经 ATEX、CSA、IECEx 认证，适用于危险应用
• 高达 5000 PPR 的坚固的密码盘
• IP67 等级的特殊外壳和密封件
• 阳极氧化铝、不锈钢或镀镍外壳
• 提供轴式和轮毂轴式

The HD25 Harsh-Duty Optical Encoder is 2.5" OD Intrinsically Safe Encoder with ATEX Certified Output Options. It is ideal for machine applications with corrosive environments that demand stringent wash-downs including those where high pressure steam or caustic chemicals are needed to meet regulatory requirements. This compact, special-duty encoder is designed to exceed IP66/IP67 and NEMA 6 enclosure requirements with a PPR range through 5000.

• Size 25 Hazardous-Duty Encoder with Single or Dual Isolated Outputs
• ATEX, CSA, IECEx Certified for Hazardous Duty Applications
• Unbreakable Code Disc up to 5000 PPR
• Special Housing and Seals for IP67 Rating
• Anodized Aluminum, Stainless Steel, or Nickel Plated Housing
• Available in Shafted and Hub-Shafted

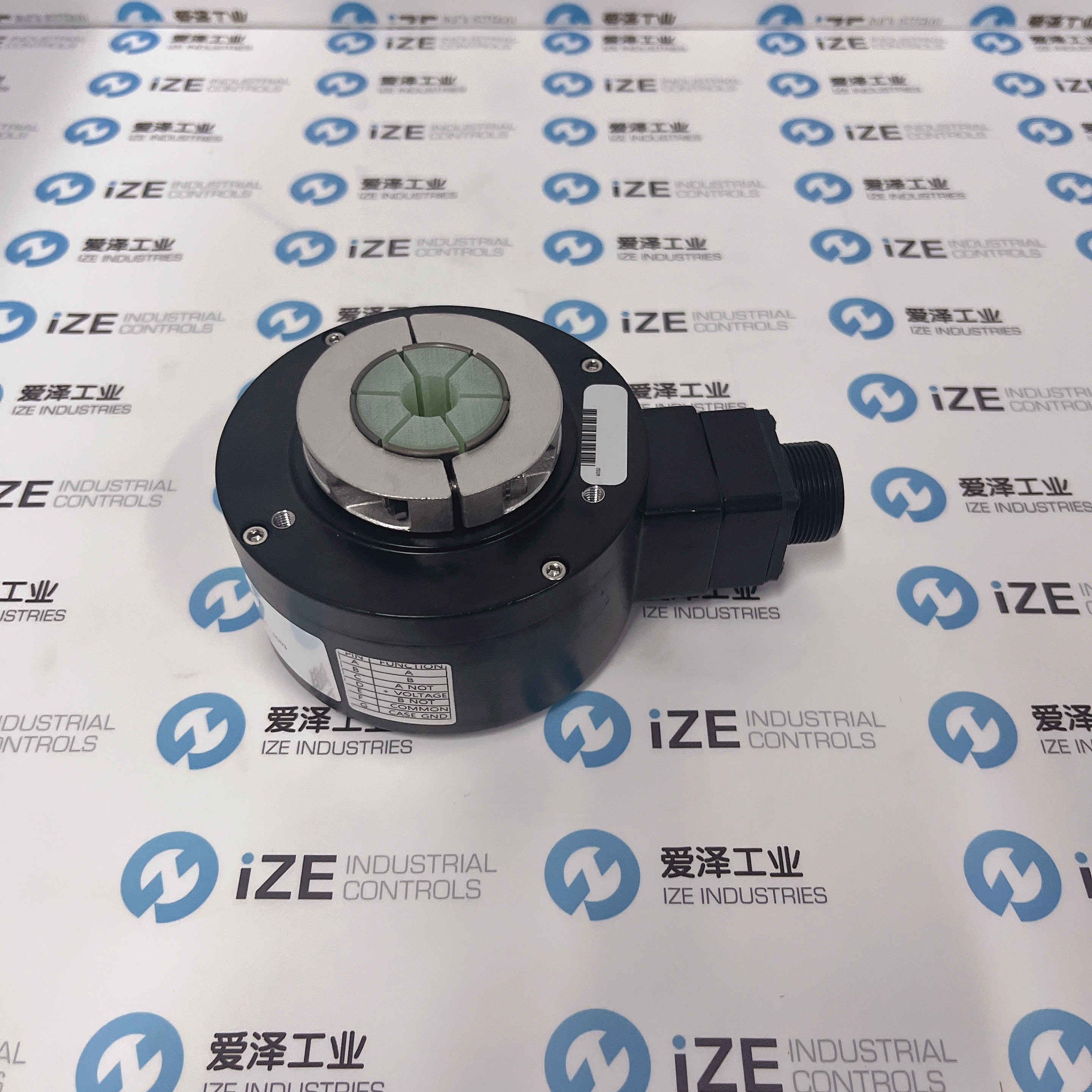

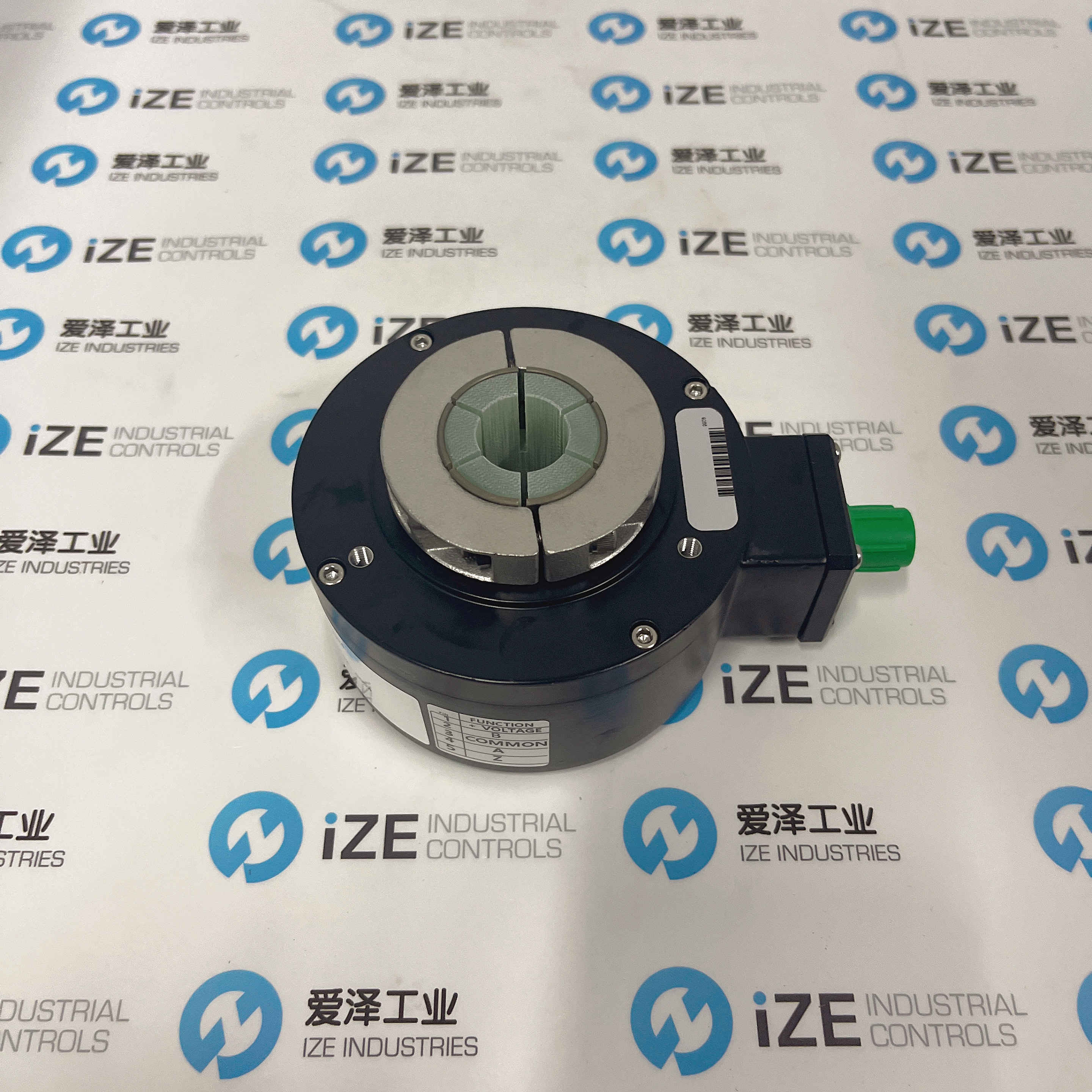

DYNAPAR编码器HS35R系列介绍

HS35R 具有 400g 冲击等级、IP67 密封和 -40ºC 至 100ºC 的宽温度范围，提高了矢量编码器性能的标准，在轧机和重型工厂环境中提供更高的可靠性并*大限度地延长设备正常运行时间。

• 相控阵传感器提供可靠的信号输出
• 坚固的设计可承受高达 400g 的冲击和 20g 的振动
• 可定制的安装选项，包括带有可选接地带的扭矩臂
• 高达 5000 PPR 的牢不可破的密码盘
• IP67 选项的重型设计
• 400G 冲击和 20G 振动独立验证

With 400g shock rating, IP67 sealing, and wide -40ºC to 100ºC temperature range, the HS35R raises the bar on vector-duty encoder performance providing increased reliability and maximize equipment uptime in mill and heavy duty plant environments.

• Phased Array Sensor for Reliable Signal Output
• Rugged Design Withstands up to 400g Shock and 20g Vibration
• Customizable Mounting Options including Torque Arm with Optional Grounding Strap
• Unbreakable Code Disc up to 5000 PPR
• Heavy Duty Design Rated for IP67 Option
• 400G Shock and 20G Vibration Independently Validated

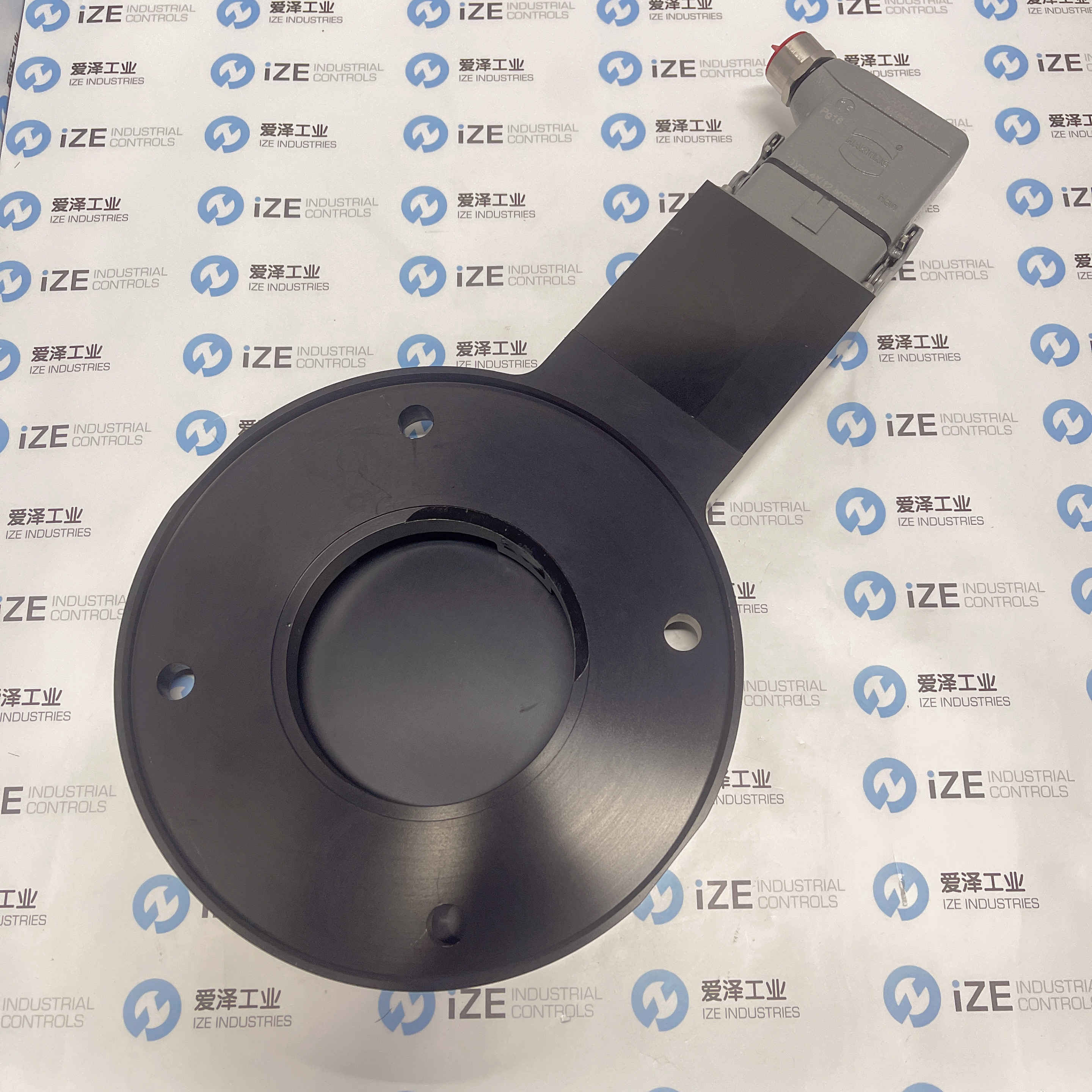

DYNAPAR编码器ST85系列介绍

SLIM Tach NexGen ST85磁性编码器是8.5" C 面无轴承磁编码器，附带大传感器气隙和主动诊断 LED。

• 使用我们的革命性传感器技术重新设计，提供 0.060 英寸的大气隙
• 无轴承设计可安装到 180 个 C 面电机
• 可用于“三明治”安装的双 C 面版本
• 带有现场可维修连接器的阳极氧化铝外壳
• 诊断 LED 可方便地查看编码器功能状态

SLIM Tach NexGen ST85 Magnetic Encoder is 8.5" C-Face Bearingless Magnetic Encoder with Large Sensor Air Gap and Active Diagnostic LED

• Redesigned using our Revolutionary Sensor Technology to provide a Large Air Gap of 0.060”
• Bearingless Design Mounts to 180 C-Face Motors
• Dual C-Face Versions Available for “Sandwich” Mounting
• Anodized Aluminum Housing with Field-Serviceable Connector
• Diagnostic LED for Convenient Visual of Encoder Functionality Status

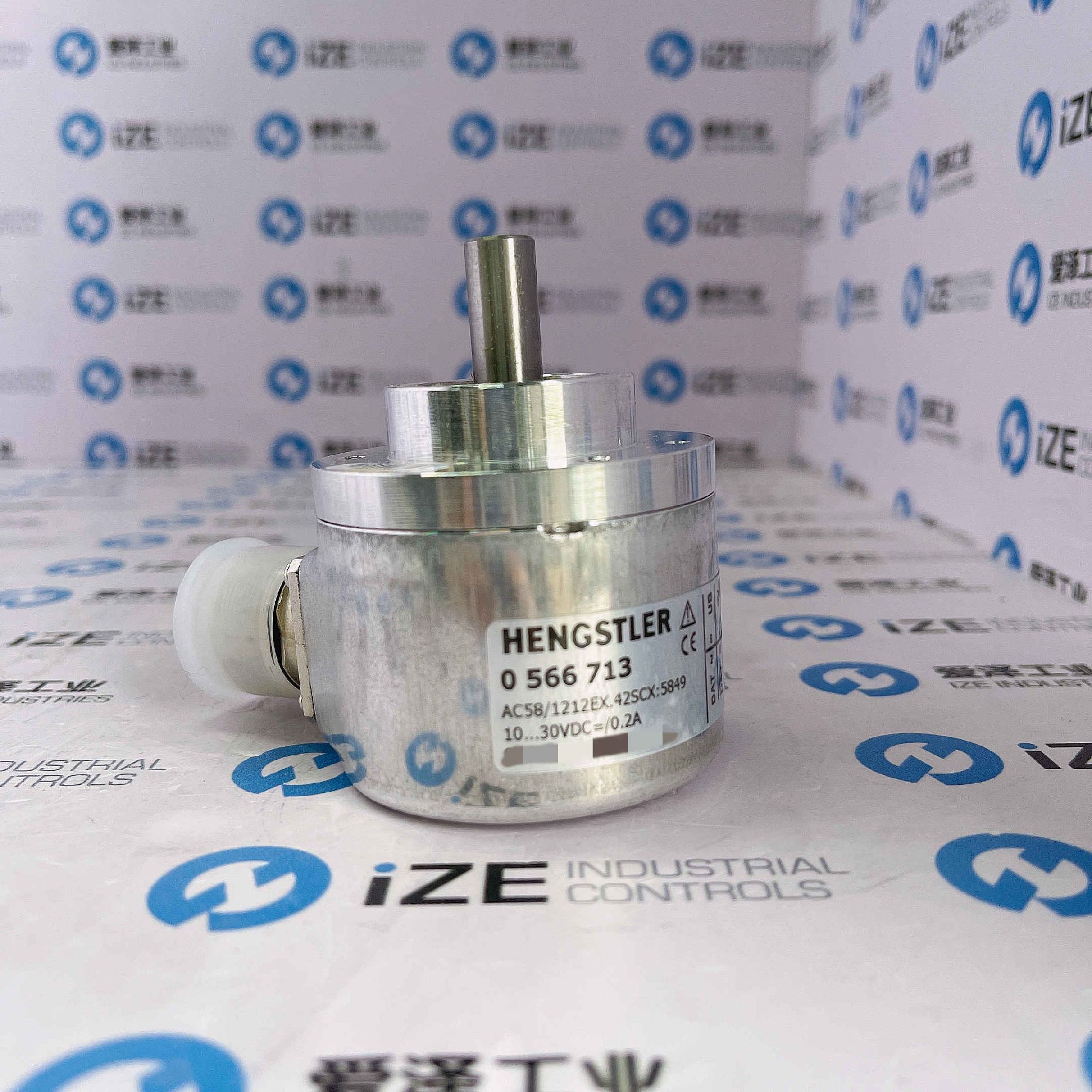

HENGSTLER编码器AC58系列介绍
AC58 系列将一系列绝对值旋转编码器与光学扫描相结合，适用于众多应用领域。 58 mm 编码器有实心轴或空心轴型号，可满足几乎所有涉及电机反馈的苛刻工业应用和使用的要求。

• 单圈和多圈绝对值编码器
• 广泛的温度范围：-40 至 +100°C
• 分辨率：高达 34 位（单圈 22 位，多圈 12 位，取决于接口）
• 结构紧凑：50 毫米长
• 高 EMC 兼容性
• 各种总线连接：SSI、BiSS、EtherCAT、Profibus、Profi net、CANopen、CANlayer2、DeviceNet、Interbus 和 SUCOnet

The AC58 series combines a series of absolute rotary encoders with optical scanning for numerous fields of application. The 58 mm encoders are available as solid-shaft or hollow-shaft models and meet the requirements for nearly every demanding industrial application and use involving motor feedback.

• Single-turn and multi-turn absolute encoders
• Broad temperature range: -40 to +100°C
• Resolution: up to 34 bits (22 bits in single-turn, 12 bits in multi-turn, depending upon interface)
• Compact construction: 50 mm long
• High EMC compatibility
• Various bus connections: SSI, BiSS, EtherCAT, Profibus, Profinet, CANopen, CANlayer2, DeviceNet, Interbus and SUCOnet

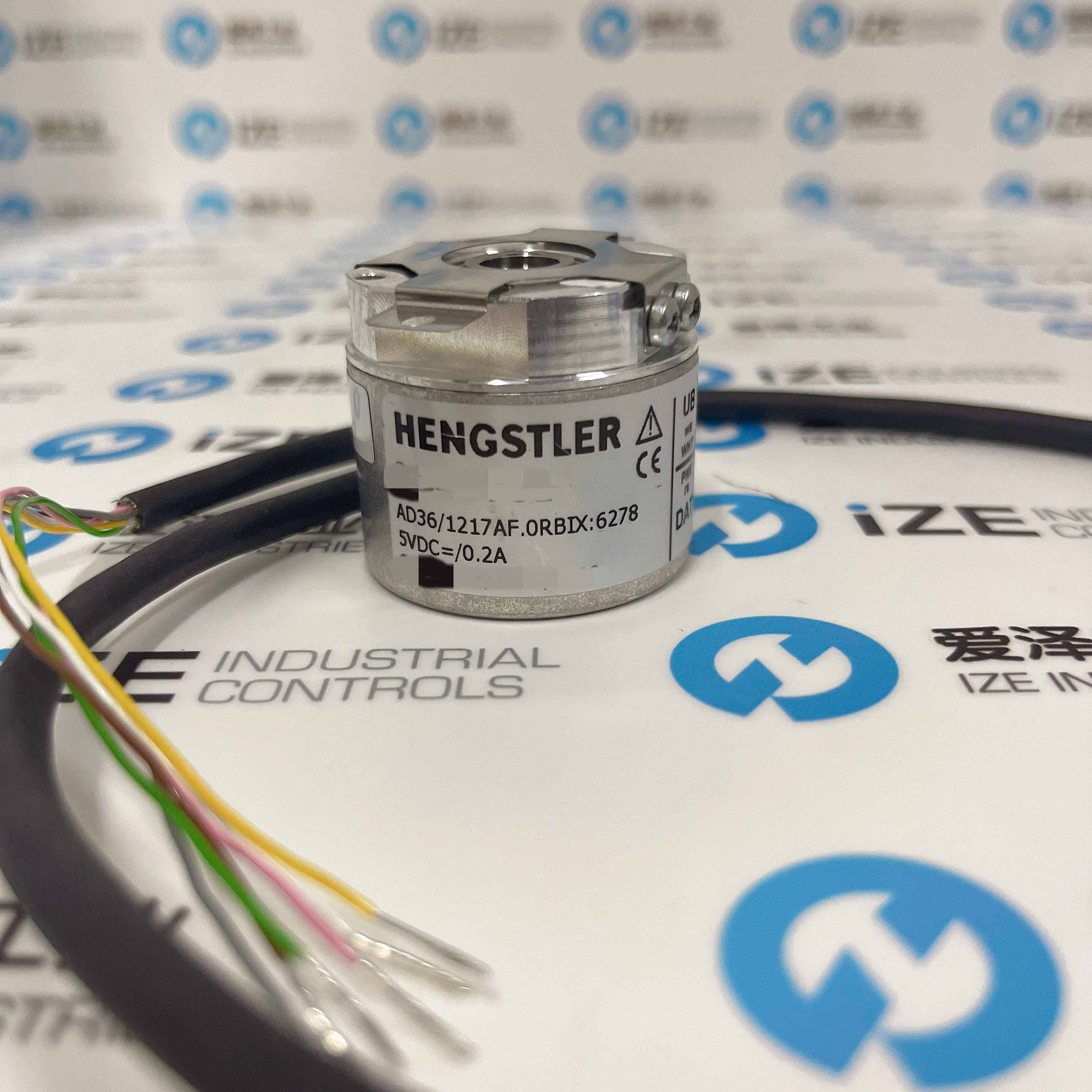

HENGSTLER编码器AD36系列介绍

AD 36 是一款光学绝对编码器，带有多圈齿轮和光学扫描，尺寸为 36 mm。作为同类产品中的型号，它提供 8 毫米通孔空心轴，可实现与旋转变压器兼容的安装。机械概念基于安装在双滚珠轴承中的轴组件，具有灵活的扭矩支撑。AD36 适用于安装在框架高度较小的 BLDC 伺服电机中。BiSS 或 SSI 通信接口可以设置完全数字化的控制电路。它具有高达 19 位单圈和 12 位多圈的分辨率。

• 用于无刷伺服电机
• 安装与旋转变压器尺寸 15 兼容
• 带 8 mm 通孔空心轴
• 19位单圈+12位多圈
• -40°C 至 +120°C 工作温度
• 10,000 rpm 连续运行
• 齿轮光学多圈
• SSI 或 BiSS 接口
• 正弦波 1 Vpp
• 500 kHz 带宽

The AD 36 is an optical absolute encoder with a multi-turn gear and optical scanning, size 36 mm. As the only model in its class, it offers an 8 mm through hollow shaft, which allows resolver-compatible installation. The mechanical concept is based on a shaft assembly mounted in dual ball-bearings with a flexible torque support. The AD36 is suitable for fitting in BLDC servo motors with small frame heights. The BiSS or SSI communication interface enables control circuits to be set up that are completely digital. It is available with resolutions of up to 19 bits single-turn and 12 bits multi-turn.

• For brushless servomotors
• Installation compatible with resolver size 15
• With 8 mm through hollow shaft
• 19 bits single-turn + 12 bits multi-turn
• -40°C to +120°C operating temperature
• 10,000 rpm in continuous operation
• Geared optical multi-turn
• SSI or BiSS interface
• Sinewave 1 Vpp
• 500 kHz bandwidth

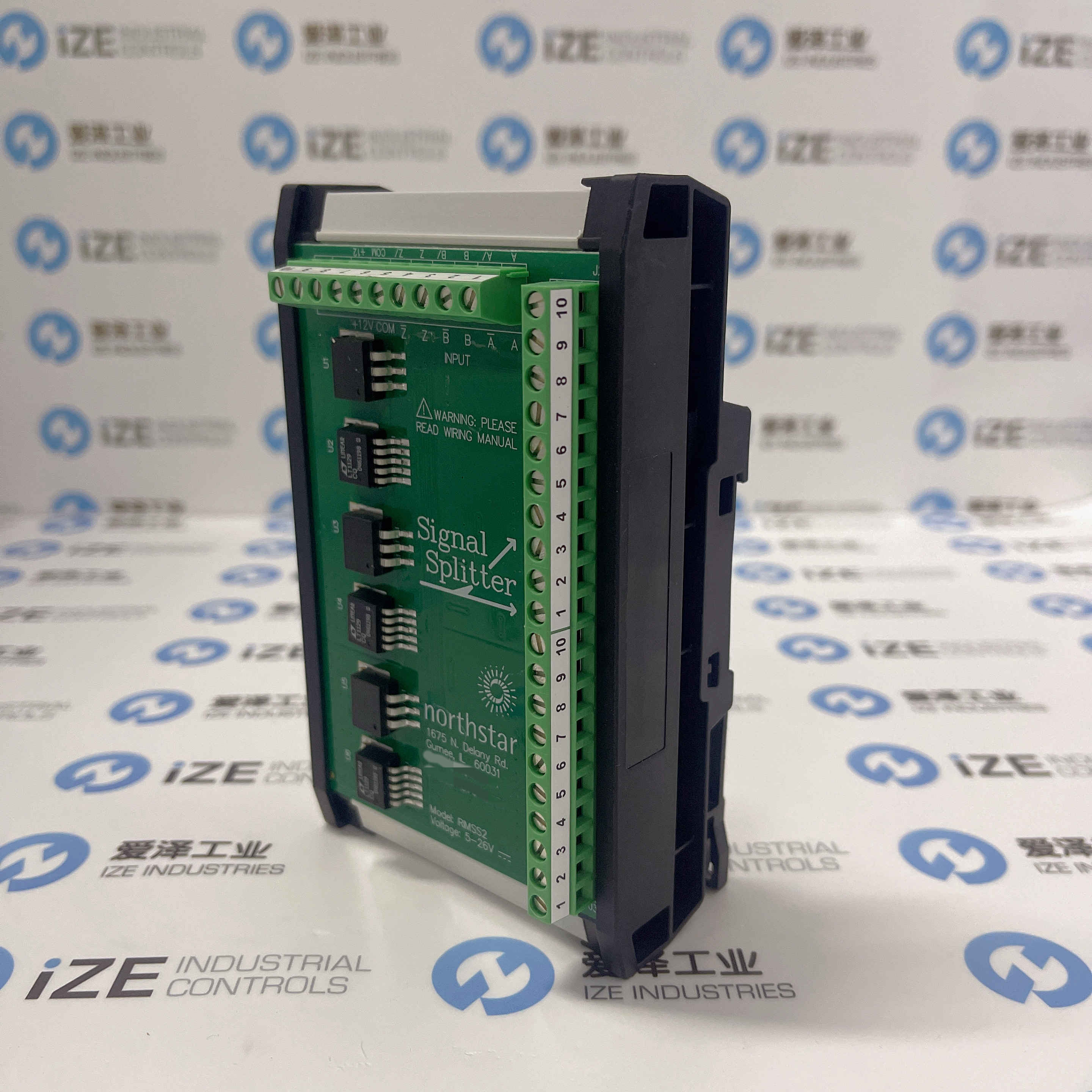

NORTHSTAR分配器RIMSS2介绍

信号分离器将接受 4-26 VDC 信号，并根据用户定义的电压水平提供两个独立且完全隔离的 5-26 VDC 线路驱动器输出。 其光学隔离输入接受来自差分线路驱动器、集电极开路甚至接近探头的正交或单通道输入，无论是否带有互补信号。 信号分离器还具有重复和放大信号的能力。 信号分配器的每个输出均可由用户自定义，范围为 5 至 26 VDC。 除了短路保护外，输出还根据 MIL-STD-883 进行 ESD 保护。 信号分离器的每个连接器都配备了两个用于 +VCC 和公共端的位置，以及两个额外的可访问连接点，使电源连接变得简单快捷。 能够驱动高达 26 VDC 的输出信号，信号分离器也可以在任一输出断开的情况下工作。

• 消除了两个独立编码器的费用和维护
• 光隔离输出可以同时发送到电机驱动器和显示器
• 与几乎所有本品牌的增量数字编码器兼容
• 解决长距离和电气干扰问题

The Signal Splitter will accept 4-26 VDC signals and provide two independent and completely isolated line driver outputs of 5-26 VDC based on user dened voltage levels. Its optically isolated inputs accept quadrature or single channel inputs, with or without their complements, from dierential line drivers, open collector, and even from proximity probes. The Signal Splitter also has the ability to repeat and amplify signals. Each output of the Signal Splitter is user denable from 5 to 26 VDC. In addition to short circuit protection, outputs are ESD protected according to MIL-STD-883. Each connector of the Signal Splitter is equipped with two positions for +VCC and common, as well as two extra eld accessible tie points, making power supply connections simple and quick. Capable of driving the output signal up to 26 VDC, the Signal Splitter will also function with either output disconnected.

• Eliminates the expense and maintenance of two separate encoders
• Optically isolated outputs can be sent to a motor drive and a display at the same time
• Compatible with virtually every incremental digital encoder
• Combats long distance and electrical interference problems

DYNAPAR丨NORTHSTAR丨HENGSTLER编码器/分配器常用型号：
DYNAPAR HS35R10240256
DYNAPAR HS35R10240317
DYNAPAR HS35R10240346
DYNAPAR HS35R10240362
DYNAPAR HS35R10240372PS
DYNAPAR HS35R10240477
DYNAPAR HS35R10240487
DYNAPAR HS35R102405A8
DYNAPAR HS35R102405P7
DYNAPAR HS35R102407E2
DYNAPAR HS35R1024101E
DYNAPAR ST81024LC04EVCC
DYNAPAR ST81024LC05CVCC
DYNAPAR ST81024LC05EVCC
DYNAPAR ST81024LC06CVCC
DYNAPAR ST81024LC06MVPP
DYNAPAR ST81024LC07BVCC
DYNAPAR ST81024LC07BVFF
DYNAPAR ST81024LC07CVFF
DYNAPAR ST81024LC07DVCC
DYNAPAR ST81024LC07EVCC
DYNAPAR ST81024LC07QVPP
DYNAPAR ST81024LC12EVCC
DYNAPAR 62-AAEF-1024-A0
DYNAPAR HD2520100033A
DYNAPAR HD2521000063S
DYNAPAR HS35R012073A1PS
DYNAPAR HS35R0500D30H04
HENGSTLER AD361217AF
HENGSTLER HC54H5000023A
HENGSTLER 0566713 AC581212EX.42SCX5849
HENGSTLER AC58/0012ES.41PGB
HENGSTLER AC58/0012EK.42DPZ
HENGSTLER AC58/0012EK.72PGB
HENGSTLER AC58/0012EF.47SGA
HENGSTLER AC58/0012EF.47OLB-F0
HENGSTLER AC58/0012EK.42OLA
HENGSTLER AC58/0012EK.42SBA
HENGSTLER AC58/0012EK.42PBB
HENGSTLER AC58/0012EK.42SBB-F0-C
HENGSTLER AC58/0012ES.41PBB-U
HENGSTLER AC58/0012ES.41PGA
HENGSTLER AC58/0012EK.42PGV
HENGSTLER AC58/0012ES.41SGH
HENGSTLER AC58/0012EK.42PGU
NORTHSTAR RIMSS2
NORTHSTAR RIMSSW

如果您需要完整的DYNAPAR丨NORTHSTAR丨HENGSTLER编码器的相关技术咨询，请随时致电爱泽工业，或者访问网站,我们将尽全力解决您的问题。
