如下为我司爱泽工业
IZE_Industries本月到货
SEW相关产品，欢迎致电索取样本资料和产品信息。
SEW编码器0G83 RN 1024
SEW编码器AS3H 13639935
SEW编码器AS7YAV7Y
SEW整流器BG1.5 8253846
SEW模块DEH21B
SEW模块DFE24B
SEW模块UOH11B
SEW刹车片0187098X BM30-BM62
SEW刹车片1836706 BE5AbmG24

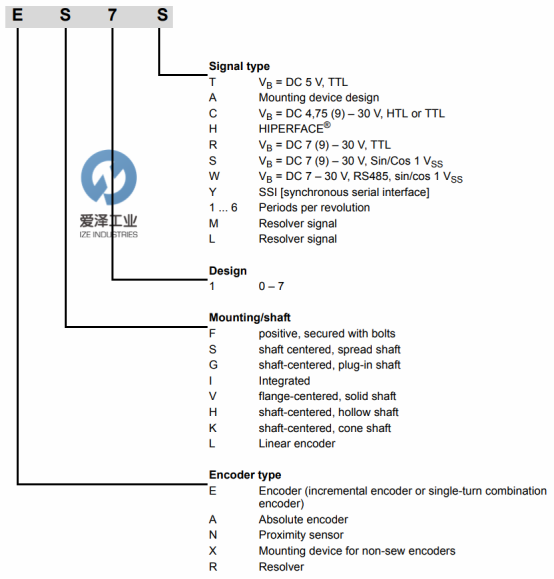

SEW编码器介绍
• 具有传统信号电平 TTL（晶体管-晶体管逻辑）和 HTL（高阈值逻辑）的增量编码器
• 带正弦/余弦轨迹的增量式旋转编码器
• 带 RS485 和正弦/余弦轨迹的绝对值编码器
• 带 SSI（同步串行接口）的绝对值编码器、单圈编码器和多圈编码器
• 内置编码器
• Incremental encoders with the conventional signal levels TTL (Transistor-Transistor Logic) and HTL (High Threshold Logic)
• Incremental rotary encoders with sin/cos tracks
• Absolute encoders with RS485 and sin/cos tracks
• Absolute encoders with SSI (Synchronous Serial Interface), single-turn encoders and multi-turn encoders
• Built-in encoders
SEW整流器BG系列介绍
BG 制动整流器 - 标准尺寸高达 100，不适用于 100 以上的框架尺寸
制动整流器 BG 是具有过压保护的半波整流器。
如果对制动器的释放反应时间没有特殊要求，则整流器用于小型电机。 它不能在升高的环境温度下使用，也不能在制动器的冷却条件下使用。
BG Brake Rectifier - Standard size up to 100, not suitable for frame sizes above 100
The brake rectifier BG is a half-wave rectifier with overvoltage protection.
The rectifier is used for small motors if no special requirements are required in terms of the release reaction time of the brake. It cannot be used at elevated ambient temperatures and cannot be used under the cooling conditions of the brakes.
SEW模块DEH21B介绍
DEH21B 和 DIP11B 选件扩展了 MOVIDRIVE@ B 系统，包括一个用于绝对编码器的 SSI 接口。 此选项允许 IPOSplus@ 定位的以下可能性：
• 系统启动或断电后无需参考行程
• 定位可以通过安装在电机上的绝对编码器或增量编码器/旋转变压器进行。 即使没有电机编码器反馈，移动距离也不需要位置开关
• 在 IPOSlus@ 程序中自由处理绝对位置
• 除基本单元外，DIP1B 选件还提供 8 个数字输入和 8 个数字输出。
• 绝对值编码器既可以安装在电机上，也可以沿轨道安装（如高架仓库）
• 简单的编码器调整，用户引导启动
• 无限定位结合激活的模数功能
The DEH21B and DIP11B options extend the MOVIDRIVE@ B system to include an SSI interface_ for absolute encoders. This option allows the following possibilities for IPOSplus@ positioning:
• No reference travel required when the system is started or after a power failure
• Positioning can take place either with the absolute encoder or the incremental encoder/resolver installed on the motor. No position switch needed on the travel distance, even without motor encoder feedback
• Free processing of the absolute position in the IPOSlus@ program
• In addition to the basic unit, 8 digital inputs and 8 digital outputs are available with the DIP1B option.
• The absolute encoder can be mounted either on the motor or along the track (e.g. high-bay warehouse)
• Simple encoder adjustment with user-guided startup
• Endless positioning in combination with activated modulo function
SEW模块DFE24B介绍
MOVIDRIVE@MDX61B 变频器凭借其强大的通用现场总线接口，使用 DFE24B 选件通过 EtherCAT 连接到更高级别的自动化、项目规划和可视化系统。 使用 DFE24B 选件通过 EtherCAT& 主站与变频器通信，并通过 EtherCAT@ 操作 MOVITOOLS@MotionStudio 工程软件来更改参数和 IPOSPlus@ 程序。
The MOVIDRIVE@MDX61B inverter enables you to use the DFE24B option to connect to higher-level automation, project planning and visualization systems via EtherCAT thanks to its powerful, universal fieldbus interface. You can use the DFE24B option to communicate_ with the inverters via the EtherCAT& master and operate the MOVITOOLS@MotionStudio engineering software via EtherCAT@to change parame- ters and IPOSPlus@ programs.
SEW刹车介绍
SEW的机械制动器是一种直流操作的电磁盘式制动器，它通过电子方式释放并使用弹簧力施加。当电压供应中断时制动。它满足基本的安全要求。
如果配备手动制动释放装置，也可以机械释放制动器。机械释放由自动复位的手柄或可调节的固定螺钉启用。制动器由安装在电机接线盒或控制柜中的制动器控制器控制。
• 短设计
特殊设计减少了重量和电机框架长度
• 多种选择
允许自定义电机和制动器组合
• 功能和磨损监测诊断单元（可选）
通过非接触式连续提供有关每个制动器的功能和磨损的信息
• 功能安全（可选）
通过 EN ISO 13849-1 认证。对于事件技术领域，符合 DIN 56950-1 的要求。
SEW mechanical brake is a DC-operated electromagnetic disk brake that is released electrically and applied using spring force. The brake is applied when the voltage supply is interrupted. It meets the basic safety requirements.
The brake can also be released mechanically if equipped with a manual brake release. The mechanical release is enabled by a hand lever that resets automatically or an adjustable set screw. The brake is controlled by a brake control that is installed in either the motor terminal box or the control cabinet.
• Short design
The weight and motor frame length are reduced thanks to the special design
• Large variety of options
Allows for custom combinations of motors and brakes
• Function and wear monitoring diagnostic unit (optional)
With a contactless, continuous supply of information regarding the function and wear of each individual brake
• Functional safety (optional)
With certification according to EN ISO 13849-1. For the area of event technology, the requirements of DIN 56950-1 are complied with.
SEW编码器丨模块丨刹车片丨整流器常用型号：
SEW 0G83 RN 1024
SEW AS3H 13639935
SEW AS7YAV7Y
SEW BG1.5 8253846
SEW DEH21B
SEW DFE24B
SEW UOH11B
SEW 0187098X BM30-BM62
SEW 1836706 BE5AbmG24
SEW BG1.4 8278814
SEW BG3 8253862
SEW DEH11B
SEW DER11B
SEW DEU21B
SEW DIP11B
如果您需要完整的
SEW的相关技术咨询，请随时致电爱泽工业，或者访问网站，我们将尽全力解决您的问题。
