MARVAIR温控器S/04581

MARVAIR是一家通过ISO 9001：2015认证的多元化制造商，为电信大楼，学校教室，商业/工业结构以及船舶工业提供独立的采暖，通风和空调产品。

MARVAIR产品有：
冷气机
热泵
控制器/温控器
空调和热泵配件和选件

MARVAIR温控器S/04581产品介绍
Specification
Thermostat
Thermostat Range:
cooling is 65 - 95°F (18 - 35°C); default, 75°F (24°C).
heating is 50 - 80°F (10 - 27°C); default, 68°F (20°C).
Programmable and display in °F (default) or °C.
Thermostat provides two stages of cooling and two stages of heating.
Changeover differential between cooling and heating is a minimum of 4°F (2.2°C).
Differential
On-Off differential of each stage is adjustable from 2 - 5°F (1 - 3°C); default, 3°F (2°C).
Interstage differential (stage 1 cooling to stage 2 cooling) adjustable from 2 - 12°F (1 - 7°C); default, 2°F (1°C).
Ease of Installation
Wiring connections insensitive to phasing of units.
24 VAC with 24 VDC or 48 VDC backup power.
Easy terminal connection for thermostat wire.
No additional power source required for operation.
Temperature sensor built into unit. Optional remote sensors available for measuring temperatures, up to 24 ft. from the CommStat 3™ Controller, in up to 3 locations in the shelter. P/N 80503
Easy attachment to wall.

MARVAIR温控器S/04581产品介绍

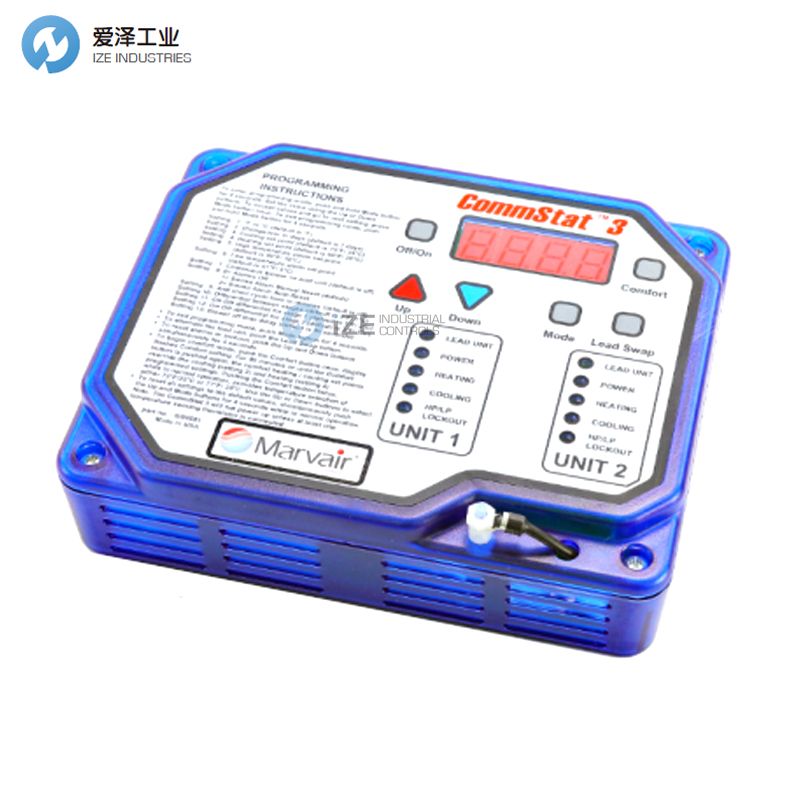

CommStat3™ Lead/Lag Microprocessor Controller.................................................................................................................P/N S/04581
Solid state controller designed to operate a fully or partially redundant air conditioning system. Ensures equal wear on both air conditioners while allowing the lag unit to assist upon demand. Lead/ lag changeover is factory set at 7 days, but is field programmable in 1/2 day increments from 1/2 to 7 days. The CommStat 3™ Controller has LED’s to indicate status & function, digital display of temperature, a comfort override button for energy savings, five alarm relays, a built in temperature sensor and is fully programmable. See the CommStat 3 PDS for more details.

CommStat3™ 超前/滞后微处理器控制器.......................... ..................................................... .....................P/N S/04581
固态控制器设计用于操作完全或部分冗余的空调系统。 确保两台空调的磨损相同，同时允许滞后单元根据需要提供帮助。 超前/滞后转换出厂设置为 7 天，但可在 1/2 至 7 天之间以 1/2 天为增量进行现场编程。 CommStat 3™ 控制器具有指示状态和功能的 LED、温度数字显示、用于节能的舒适覆盖按钮、五个警报继电器、一个内置温度传感器并且是完全可编程的。 有关详细信息，请参阅 CommStat 3 PDS

MARVAIR温控器其他型号列举
MARVAIR 70705
MARVAIR S/12087-04
MARVAIR S/12087-06
MARVAIR K/10439
MARVAIR S/7846
MARVAIR S/04581
MARVAIR 50123
MARVAIR 50107
MARVAIR 50092
MARVAIR 50218
MARVAIR 50254
MARVAIR 50252

MARVAIR MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于MARVAIR温控器S/04581的疑问，请随时与我们电联，（ ），我们将尽全力解决您的问题。

If you have any question for MARVAIR products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website: www.ize-industries.com.
