DESCO电源适配器19652

DESCO成立于1956年，产品主要在美国生产制造，核心产品是为电子制造领域的ESD控制而制造的。

DESCO产品有：
地板涂饰和保养
地板垫
泡沫
电离
测量
罩衫和手套
胶带
连续监控器
工作台垫
腕带和线圈线

DESCO电源适配器19652产品介绍
Features

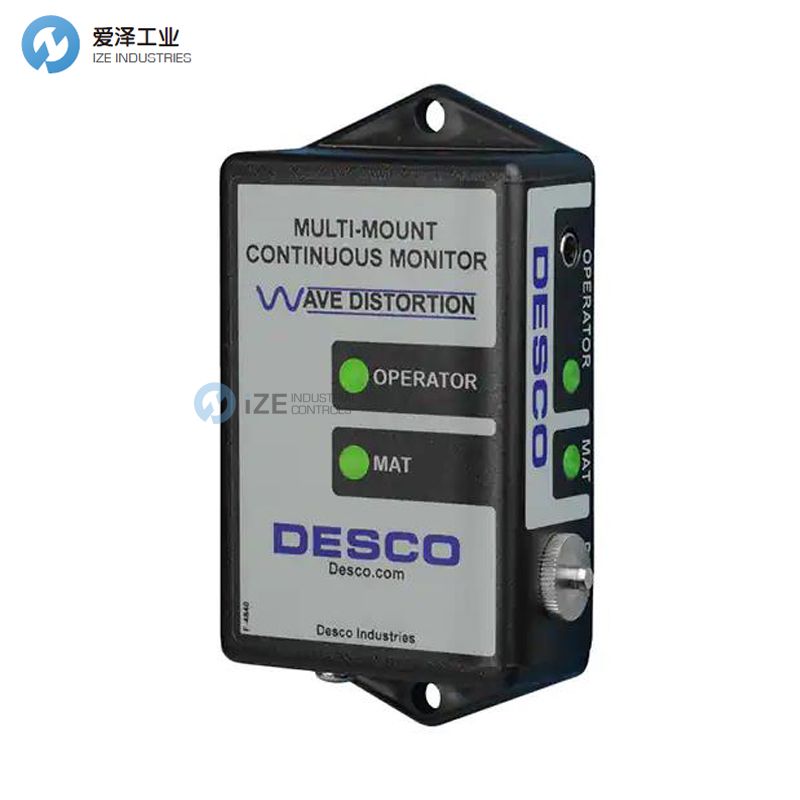

Single Workstation Continuous Monitor
Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface
IMPROVED Operator Alarm
Alarms when the operator unintentionally disconnects from the monitor or the connection between the banana plug and monitor’s jack is intermittent
NEW Mat Monitor Switch
Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
NEW Audible Alarm Adjustment
Sets the audible alarm volume from loud to louder
NEW 19653 Remote Alarm Accessory
Connect to the Multi-Mount Monitor and place in the operator’s field of view to alert operator of alarms
Desco Wave Distortion Technology
Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground* and the presence of its 1 megohm safety resistor
Park Snap
Allows the operator to disconnect (and park) a wrist strap when leaving the workstation without creating a false alarm
Single-Wire Impedance Design
Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
1.2 Volt Operator Test Voltage
Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
<50 Millisecond Alarm Response Time
Identifies failures and intermittencies that inferior technologies miss
Continuous Visual and Audible Alarms
Illuminates green to indicate proper grounding; illuminates red and sounds audible alarm when intermittent or failed connection occurs
Calibration Verification
Use the Desco 98221 Wave Distortion Monitor Verification Tester to check the test limits of Wave Distortion Monitors without removing them from their workstations
NIST Calibrated with Certificate Included
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration.
100-240VAC Power Adapter with IEC C14 Style Inlet
Connects to a power cord with a IEC C13 outlet connector
Made in the United States of America
This item is made and stocked in Chino, CA

*The ESDA Wrist Strap standard is ANSI/ESD S1.1. The Wrist Strap System required limit per ANSI/ESD S20.20 Table 3 is 0.8 to 1.2 x 106 ohms with product qualification testing per ANSI/ESD S1.1. The test range of the monitored circuit is 500 kilohms to 10 megohms.

特征

单工作站连续监控
持续监控一名操作员和一个 ESD 工作台面的接地路径完整性
改进的操作员警报
当操作员无意中断开与显示器的连接或香蕉插头与显示器插孔之间的连接断断续续时发出警报
新的垫子监视器开关
在没有 ESD 工作台面的区域使用时禁用工作台面监控电路
新的声音警报调整
将声音警报音量从大到大
全新 19653 远程报警配件
连接到 Multi-Mount Monitor 并放置在操作员的视野中以提醒操作员警报
Desco 波形失真技术
对腕带的接地路径*及其 1 兆欧安全电阻的存在提供稳定的连续监测（相对于脉冲或间歇）
公园快照
允许操作员在离开工作站时断开（并停放）腕带，而不会产生误报
单线阻抗设计
符合 ANSI/ESD S20.20，符合 ESD TR1.0-01-0
1.2 伏操作员测试电压
降低处理敏感组件时的电气过载 (EOS) 风险
<50 毫秒的警报响应时间
识别劣质技术遗漏的故障和间歇性
连续视觉和听觉警报
亮绿灯表示正确接地；发生断断续续或连接失败时亮红色并发出声音警报
校准验证
使用 Desco 98221 Wave Distortion Monitor 验证测试仪来检查 Wave Distortion Monitor 的测试限制，而无需将其从工作站中移除
NIST 校准，包括证书
使用可追溯至美国国家标准与技术研究院的公认程序和标准进行校准。有关 Desco 产品校准的更多信息，请参阅校准。
100-240VAC 电源适配器，带 IEC C14 样式入口
使用 IEC C13 插座连接器连接到电源线
美国制造
这个项目是在加利福尼亚州奇诺制造和储存的

*ESDA 腕带标准为 ANSI/ESD S1.1。根据 ANSI/ESD S20.20 表 3，腕带系统所需的限制为 0.8 至 1.2 x 106 欧姆，产品资格测试符合 ANSI/ESD S1.1。被监测电路的测试范围为 500 千欧至 10 兆欧。

DESCO电源适配器19652其他型号列举：
DESCO 19651
DESCO 19652
DESCO 19653
DESCO 19258
DESCO 19260
DESCO 19264
DESCO 98221
