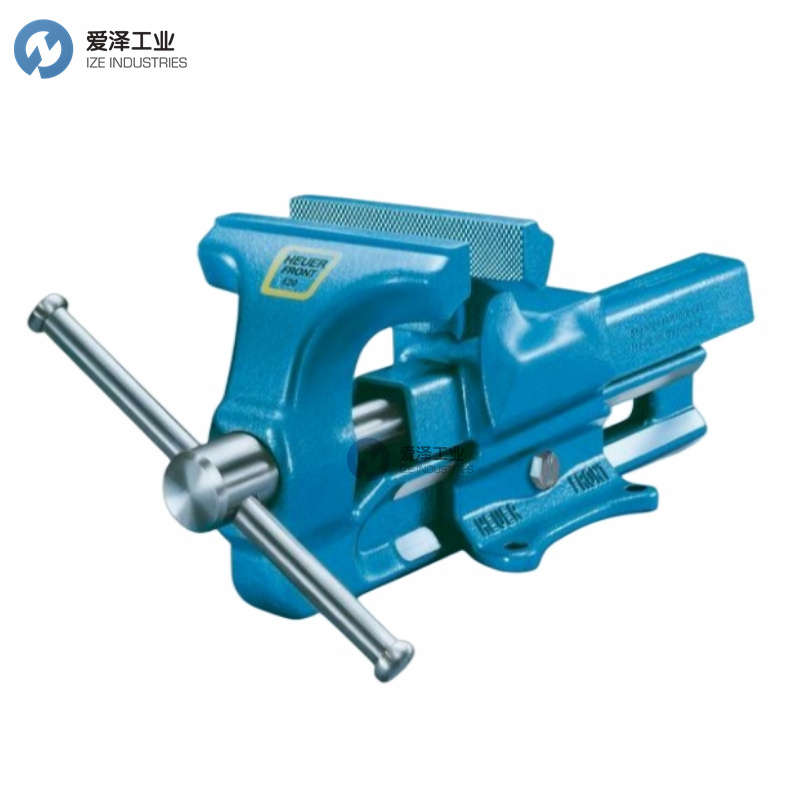

BROCKHAUS HEUER台虎钳100120

BROCKHAUS HEUER主营产品： HEUER台虎钳，带可换夹爪的HEUER台虎钳， HEUER Compact紧凑型台虎钳

HEUER台虎钳是一个优质工具。完全由钢材铸造，确保牢不可破。通过其高品质的零部件，可以确保其整体的可靠性、耐用性和精确度。

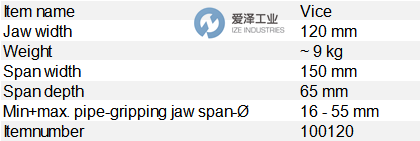

BROCKHAUS HEUER台虎钳100120技术参数


BROCKHAUS HEUER台虎钳HEUER Vice系列介绍
由于其窄的落锤锻造导轨，它提供了增强的夹紧深度。内部双棱镜导轨设计提供*佳保护，防止损坏和结垢。大轨道导轨表面确保导轨持续、平稳地运行，完全加工以保证在敏感工件上工作时的精度。

另一个优势是受保护的精密主轴轴承、带双作用的镀锌主轴、轧制梯形螺纹，以及易于调节的居中导轨。这种结构创造了高精度。

由于冷成型，主轴设计还确保了更高的强度、螺纹侧面和底部圆角的低表面粗糙度以及较低的缺口敏感性。电镀锌保护主轴免受腐蚀。

带有钢制铆接安全环的轴键可提供所需的安全性。砧座集成在后颚中。

HEUER 虎钳以其高品质和深思熟虑的工艺成为可靠性和耐用性的典范。车间恶劣条件下的理想选择。

Because of its narrow drop-forged guides, it offers an enhanced clamping depth. Internal dual-prism guide track design offers optimal protection against damage and fouling. Large track guide surfaces assure constant, smooth functioning of the guide rails, fully machined to guarantee precision when working on sensitive workpieces.

A further advantage is the protected precision spindle bearing, the covered galvanised spindle with double-action, rolled trapezoid thread, as well as the easily adjustable, centrally located guide. This construction creates the high level of precision.

The spindle design also ensures higher strength due to cold forming, low surface roughness on the thread flanks and in the base radius as well as reduced notch sensitivity. Electro-galvanising protects the spindle against corrosion.

The spindle keys with riveted safety rings made of steel afford the required safety. An anvil is integrated in the rear jaw.

The HEUER vice is a prime example of reliability and durability on account of its high quality and well-thought-out workmanship. Ideal for rough conditions in the workshop.

BROCKHAUS HEUER台虎钳HEUER Vice系列其他常用型号：
BROCKHAUS HEUER 100100
BROCKHAUS HEUER 100120
BROCKHAUS HEUER 100140
BROCKHAUS HEUER 100160
BROCKHAUS HEUER 100180

BROCKHAUS HEUER Bench Vice NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于BROCKHAUS HEUER台虎钳100120的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for BROCKHAUS HEUER products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

BROCKHAUS HEUER台虎钳100120技术参数及介绍
