爱泽工业2023年2月部分到货产品专题及库存——继电器篇

如下为我司爱泽工业IZE_Industries本月到货SMITT, GIGAVAC, ROMA相关产品，欢迎致电索取样本资料和产品信息。

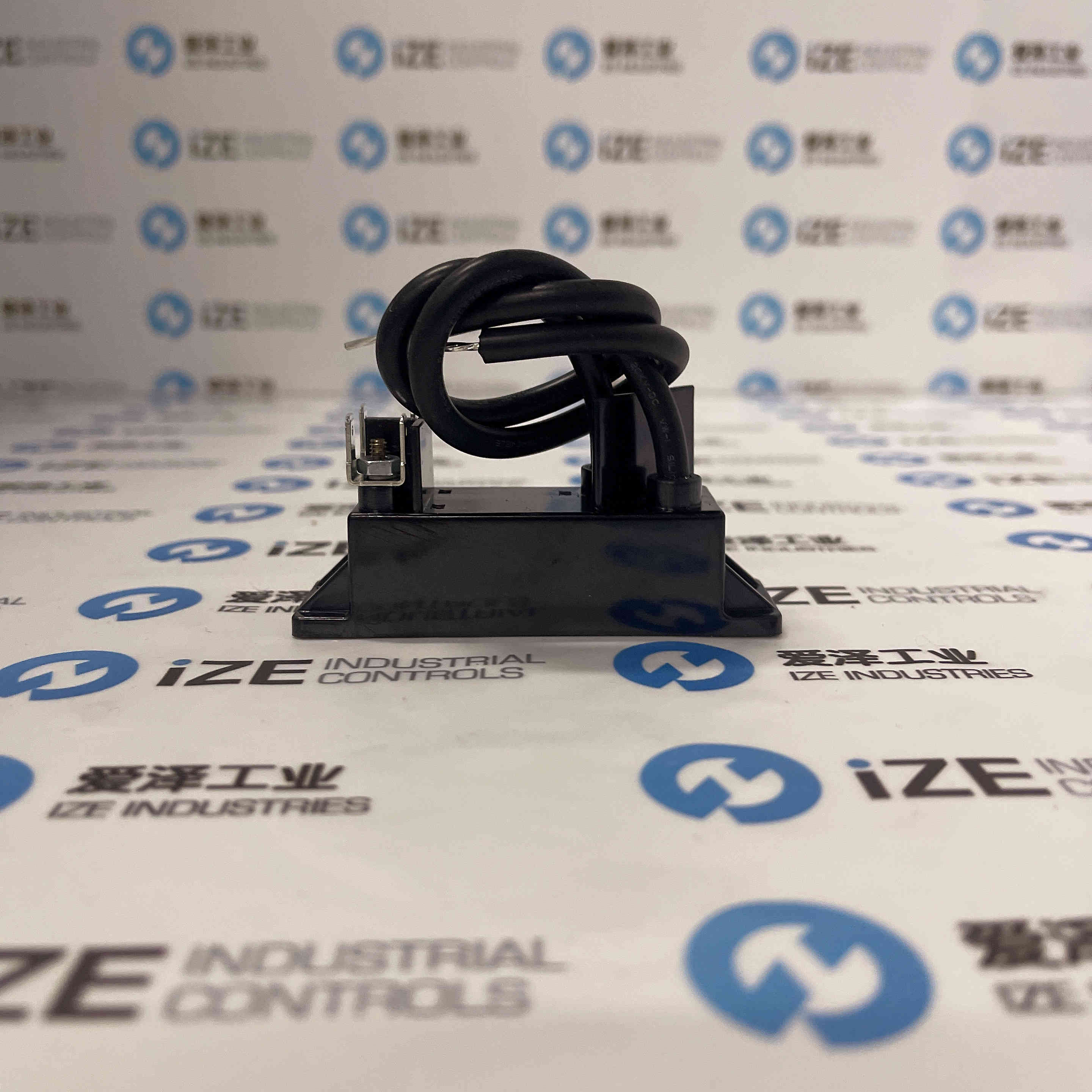

GIGAVAC继电器G81A 019




ROMAN继电器LM-XJ01

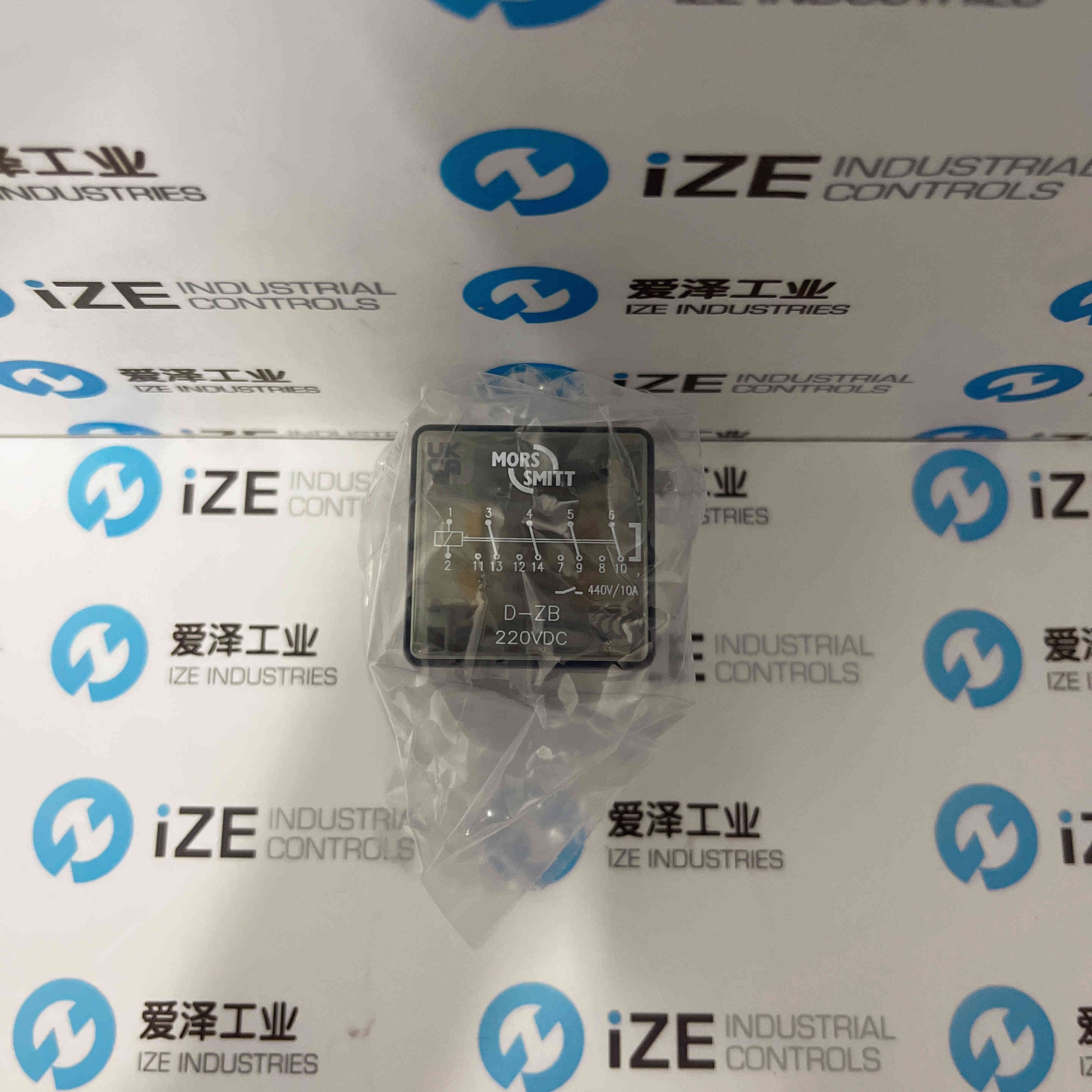

SMITT继电器D-ZB 220VDC

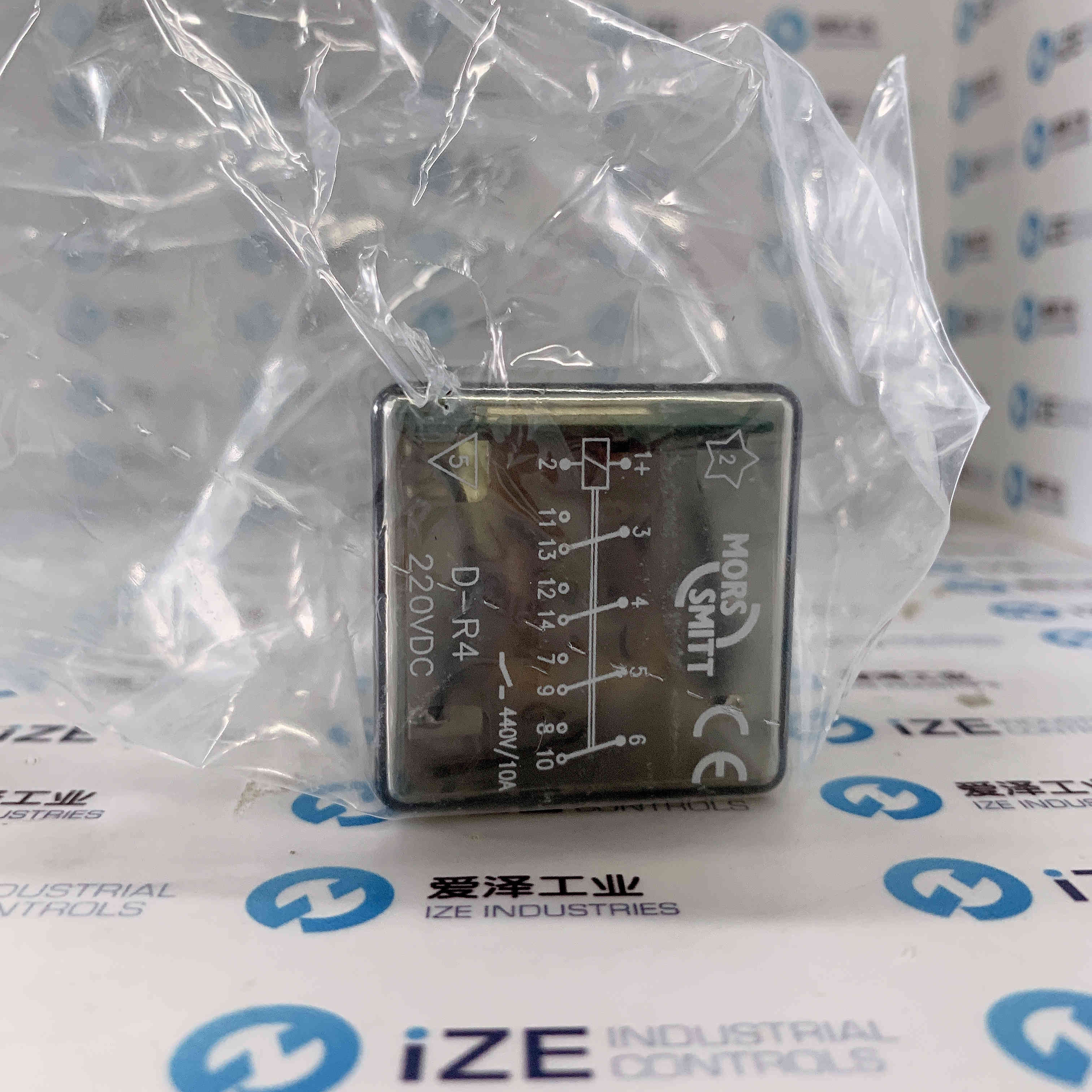

SMITT继电器D-R4 220VDC

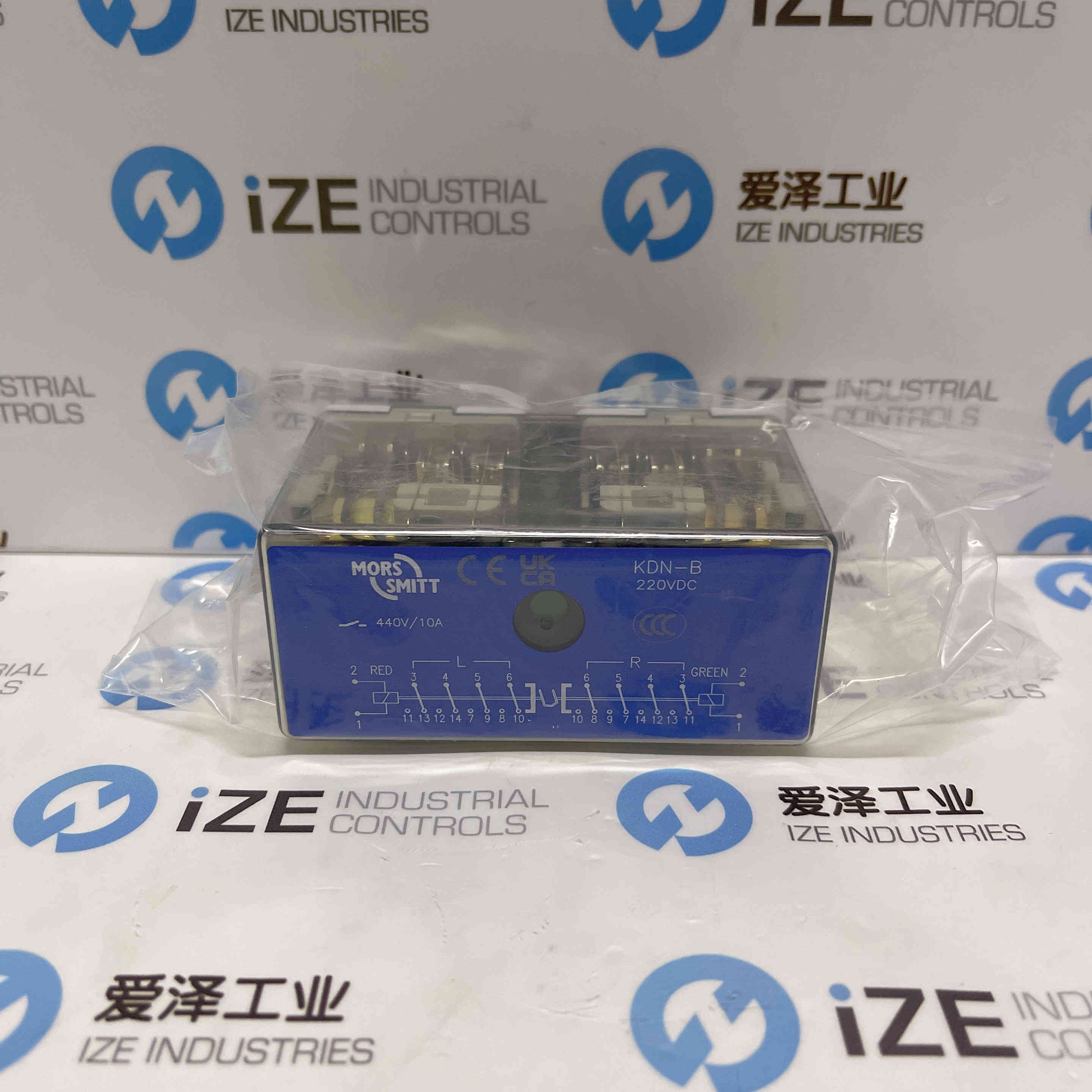

SMITT继电器KDN-B 220V

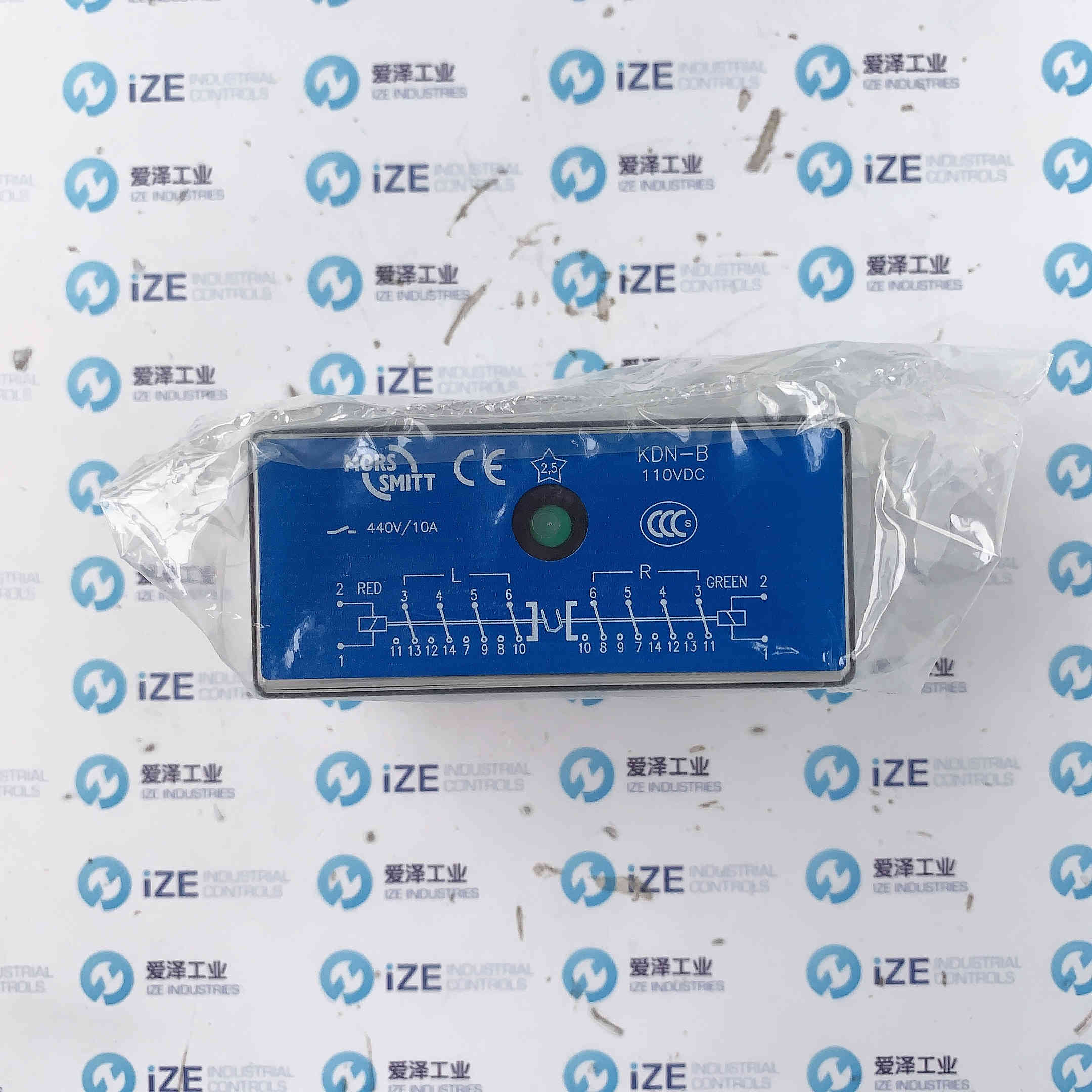

SMITT继电器KDN-B 110VDC


SMITT继电器D8-ULB 100-110V AC/DC

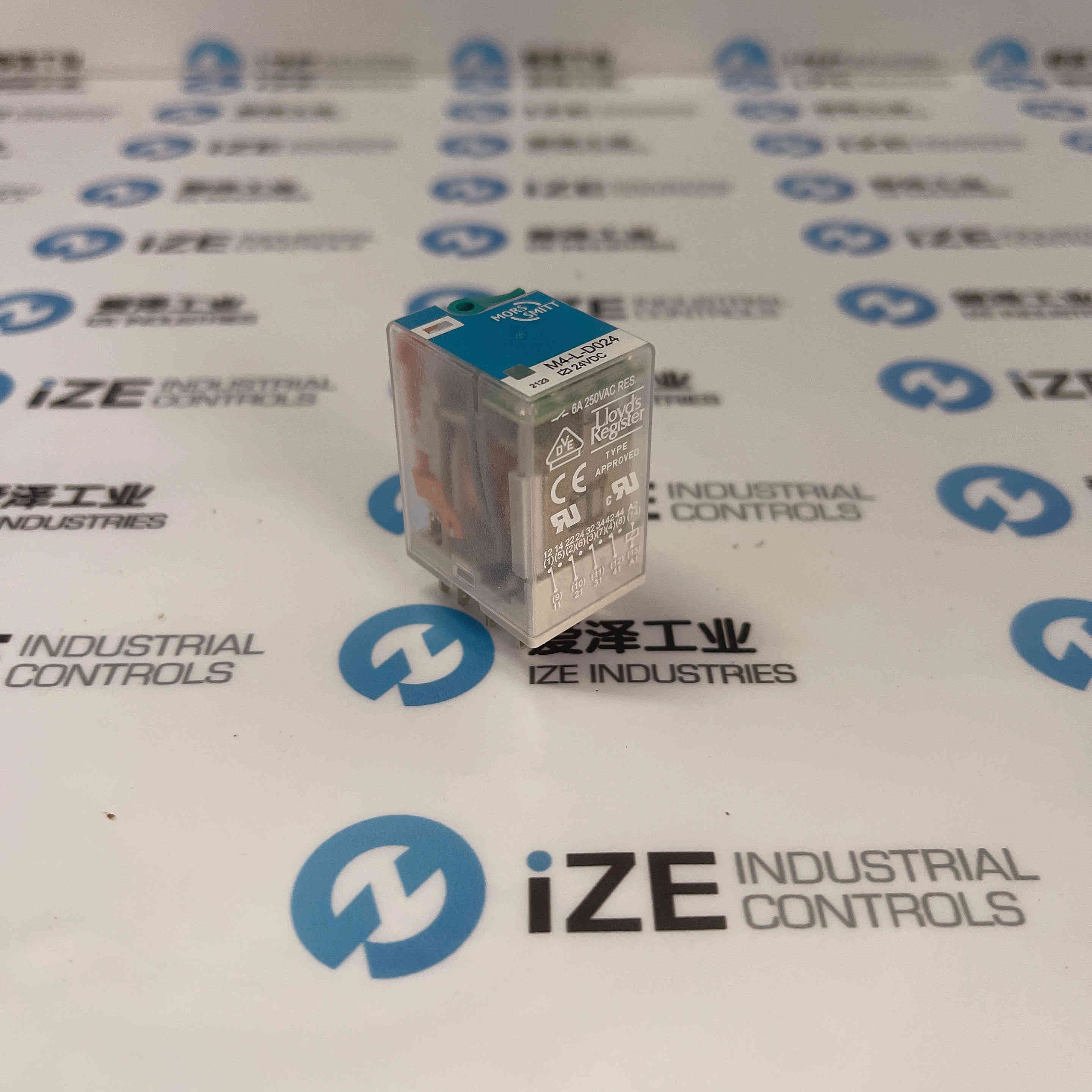

SMITT继电器M4-L-D024


SMITT继电器M4-L-D220

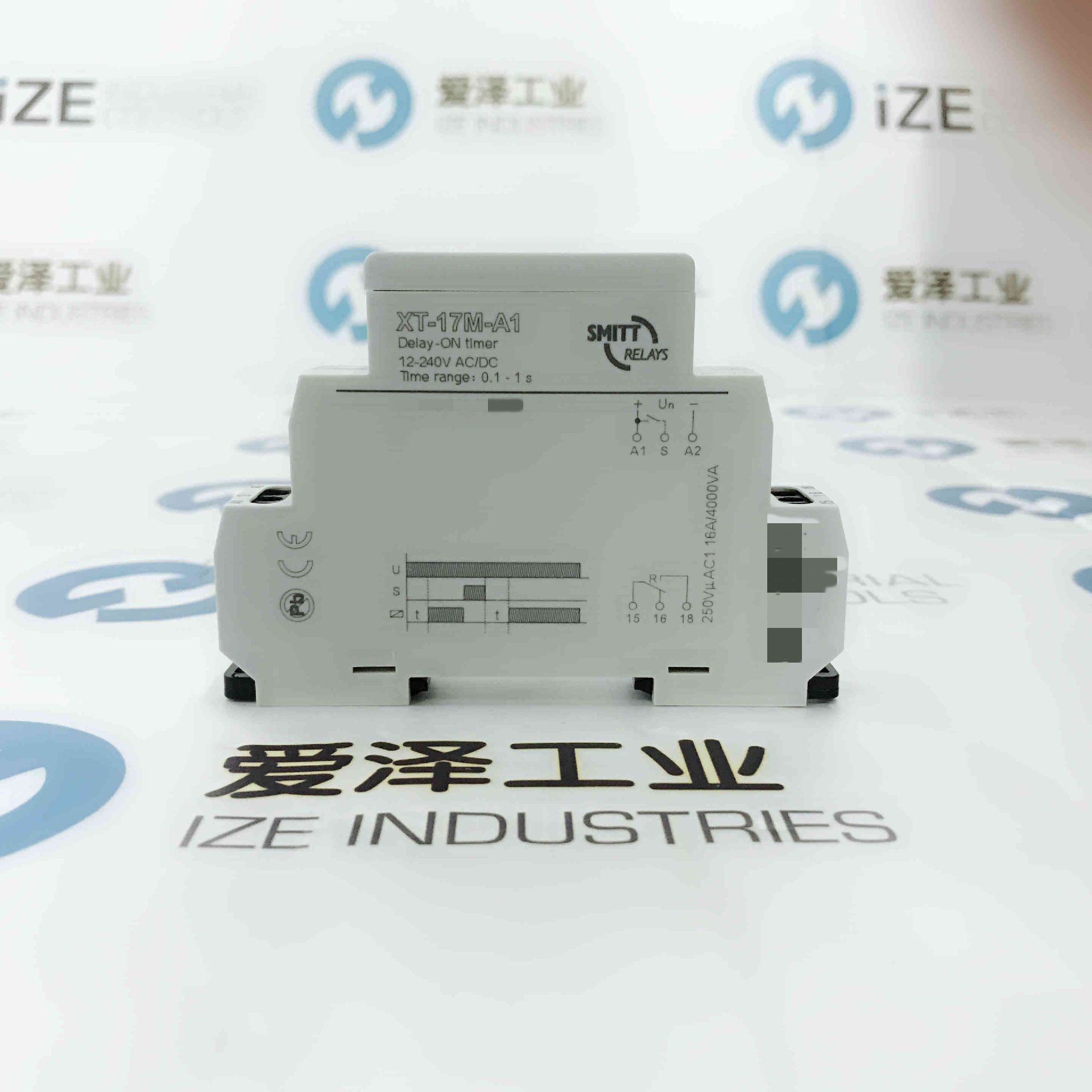

SMITT继电器XT-17M-A1

GIGAVAC继电器G81系列介绍及选型
适用于大功率 10kV 继电器的*小轮廓
四种标准机械配置提供了极端的安装和连接多功能性
标准选项提供更高的电流处理能力
用于热负载切换的耐用钨触点
负载打开时真空电介质可有效消弧

Smallest profile available for a high power 10kV relay
Four standard mechanical configurations offer extreme mounting and connection versatility
Standard options provide for increased current handling capability
Durable tungsten contacts for hot load switching
Vacuum dielectric for effective arc quenching when opening under load



SMITT继电器D8系列介绍及选型
带 8 个转换触点的插入式工业电源继电器。标准配备 LED 指示灯和反电动势抑制二极管（用于直流电压）。可选配磁弧灭弧器，分断能力高，触头寿命长。无需外部固定夹，因为集成的“弹簧锁”可在所有情况和安装方向下将继电器固定在插座中。

继电器的结构和材料的选择使 D8 继电器适合承受低温和高温、冲击和振动以及干燥到非常潮湿的环境。

紧凑的设计、多种选择和范围广泛的插座使 D8 继电器成为一种易于使用且灵活的解决方案。

Plug-in industrial power relay with 8 change-over contacts. Standard equipped with a LED indicator and back EMF suppression diode (for DC voltages). Optionally equipped with magnetic arc blow-out for high breaking capacity and long contact life. No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.

The construction of the relay and choice of materials makes the D8 relay suitable to withstand low and high temperatures, shock & vibrating and dry to very humid environments.

Compact design, choice of many options and a wide range of sockets makes the D8 relay an easy and flexible solution to use.



SMITT继电器D系列介绍及选型
带 4 个转换触点的插入式工业电源继电器。 标准配备 LED 指示灯和反电动势抑制二极管（用于直流电压）。 可选磁弧吹灭、双通/双断触点和增加的触点间隙，以实现高分断能力和长触点寿命。

在切换高直流电压/感性负载和低电流时可靠运行。 无需外部固定夹，因为集成的“弹簧锁”可在所有情况和安装方向下将继电器固定在插座中。 继电器的结构和材料的选择使 D 型继电器能够承受腐蚀性环境、低温和高温、冲击和振动以及干燥至非常潮湿的环境。

紧凑的设计、多种选择和范围广泛的插座使 D 型继电器成为一种易于使用且灵活的解决方案。

Plug-in industrial power relay with 4 change-over contacts. Standard equipped with a LED indicator and back EMF suppression diode (for DC voltages). Optionally magnetic arc blow-out, double make/double break contacts and increased contact gap for high breaking capacity and long contact life.

Proven reliable operation in switching high DC voltage / inductive loads and low currents. No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions. The construction of the relay and choice of materials makes the D-relay suitable to withstand corrosive atmospheres, low and high temperatures, shock & vibrating and dry to very humid environments.

Compact design, choice of many options and a wide range of sockets makes the D-relay an easy and flexible solution to use.



SMITT继电器KDN系列介绍及选型
适用于要求苛刻的应用的重载闭锁/双稳态继电器。 配备机械闩锁和位置指示器。 由于脉冲激活比瞬时继电器更少的热耗散和能耗。

• 插接继电器
• 斯密特式固定
• 8 个 C/O 触点
• 额定负载 1A /110V DC1 , 10A/230V AC1
• 线圈电压 12...220 VDC, 24...380 VAC
• 交直流线圈
• 允许连续线圈通电
• 集成“弹簧锁”固定夹
• 尺寸 40 x 88 x 56 毫米

Heavy-duty latching/bistable relay for demanding applications. Equipped with mechanical latch and position indicator. Due to pulse activation less heat dissipation and energy consumption than instantaneous relays.

• Plug in relay
• Smitt-style pinning
• 8 C/O contacts
• Rated load 1A /110V DC1 , 10A/230V AC1
• Coil voltages 12...220 VDC, 24...380 VAC
• AC&DC coil
• Continuous coil energization permitted
• Integrated 'snap-lock' retaining clip
• Dimensions 40 x 88 x 56 mm



SMITT继电器M4系列介绍及选型
插入式通用继电器，随附 4 个转换触点。标准配备机械指示和手动测试按钮。LED 指示和可选的可插拔二极管模块。

• 各种线圈电压
• 4 个转换触点 7 A
• AgNi 触点（AgNi/Au 0.2 μm 可选）
• 机械指示器
• 手动测试按钮
• 二极管模块可选
• LED 指示灯可选
• PCD 连接可选
• 插件连接

Plug-in, universal relay, supplied with 4 changeover contacts. Standard supplied with mechanical indication and manual test button. LED-indication and a pluggable diode module optional.

• Various coil voltages
• 4 changeover contacts 7 A
• AgNi contacts (AgNi/Au 0.2 μm optional)
• Mechanical indicator
• Manual test button
• Diode module optional
• LED-indicator optional
• PCD-connection optional
• Plug-in connection



SMITT继电器XT-17M-A系列
带信号触点的单功能延迟时间继电器。通过信号触点 (S) 可以远程控制继电器。

• 延迟开启
• 可调时间延迟 0.1 s...10 h（6 种型号可选）
• 通用电源电压 12...240 VAC/DC
• 1 个转换触点 16 A
• 螺丝连接
• LED指示
• 适用于 35 mm 导轨安装

Single function delay-on time relay with signaling contact. Via the signaling contact (S) it is possible to control the relay remotely.

• Delay-on
• Adjustable time delay 0.1 s...10 h (6 models available)
• Universal supply voltage 12...240 VAC/DC
• 1 changeover contact 16 A
• Screw connection
• LED indication
• Suitable for 35 mm rail mounting

SMITT, GIGAVAC, ROMA继电器常用型号：
SMITT KDN-B AC220V
SMITT KDN-B DC110V
SMITT KDN-B DC220V
SMITT D8-ULB 100-110V AC/DC
SMITT D8-UL 24-28 VDC/VAC
SMITT D8-UL 42-48 VDC/VAC
SMITT D8-UL 60-70 VDC/VAC
SMITT D8-UL 100-110 VDC/VAC
SMITT D8-UL 110-120 VDC/VAC
SMITT D8-UL 115-125 VDC/VAC
SMITT D8-UL 220-230 VDC/VAC
SMITT D8-UL 230-240 VDC/VAC
SMITT D8-UL 250 VDC/VAC
SMITT D-Z 110...115 V, 50 Hz
SMITT D-Z 220...230 V, 50 Hz
SMITT D-Z 24 VDC
SMITT D-Z 110VDC
SMITT D-Z 220VDC,440V,10A
SMITT D-ZB 220VDC
SMITT D-RB 24 VDC 334931370
SMITT D-RB 48 VDC 334931353
SMITT D-RB 110 VDC 334931350
SMITT D-RB 220 VDC 334931351
SMITT M4-L-D012
SMITT M4-L-D024
SMITT M4-L-D048
SMITT M4-L-D110
SMITT M4-L-D125
SMITT M4-L-D220
SMITT M4-L-A012
SMITT M4-L-A024
SMITT M4-L-A048
SMITT M4-L-A110
SMITT M4-L-A230
SMITT XT-17M-C1
SMITT XT-17M-A1
SMITT XT-17M-A4
GIGAVAC G81A335
GIGAVAC G81A3A5
GIGAVAC G81AB47
GIGAVAC G81A019
GIGAVAC G81A345
GIGAVAC G81B335
GIGAVAC G81B345
GIGAVAC G81B3A5
GIGAVAC G81BB47
GIGAVAC G81BB57
GIGAVAC G81C335
GIGAVAC G81C345
ROMAN LM-XJ01

如果您需要完整的SMITT, GIGAVAC, ROMA的相关技术咨询，请随时致电爱泽工业，或者访问网站,我们将尽全力解决您的问题。
