爱泽工业2023年5月部分到货产品专题及库存 ——VIVOLO篇

如下为我司爱泽工业IZE_Industries本月到货VIVOLO相关产品，欢迎致电索取样本资料和产品信息。



VIVOLO泵X0P0902ABBA



VIVOLO泵X1P2002FZBB



VIVOLO泵X2P5302EPOA

VIVOLO泵XV-0P...02系列介绍及选型
Group 0的铝制单向液压泵，带外齿轮。旋转方向是顺时针或逆时针。实现的性能是：排量 0,16 cm 3 /rev-2,28 cm 3 /rev，转速高达 9000 rpm，*大压力高达 280 bar。

根据产品的不同，可用的选项有：
• 氟橡胶
• *大压力阀
• 双轴

Unidirectional hydraulic pumps in aluminium, and with external gears, of size group 0. The rotation verse is clockwise or counterclockwise. The performances achieved are: displacement 0,16 cm3/rev-2,28 cm3/rev, rotation speed up to 9000 rpm, maximum pressures up to 280 bar.

Depending on the product, the options available are:
• Viton
• Maximum pressure valve
• Double shaft



VIVOLO泵XV-1P...02系列介绍及选型
Group 1的铝制单向液压泵，带外齿轮。旋转方向是顺时针或逆时针。实现的性能是：排量从 0.91 cm 3 /rev 到 9.88 cm 3 /rev，转速高达 6000 rpm，*大压力高达 300 bar。

根据产品的不同，可用的选项有：
• 氟橡胶
• *大压力阀
• 双轴
• 轴封

Unidirectional hydraulic pumps in aluminium, and with external gears, of size group 1. The rotation verse is clockwise or counterclockwise. The performances achieved are: displacement from 0.91 cm3/rev to 9.88 cm3/rev, rotation speed up to 6000 rpm, maximum pressures up to 300 bar.

Depending on the product, the options available are:
• Viton
• Maximum pressure valve
• Double shaft
• Shaft seal



VIVOLO泵XV-2P...02系列介绍及选型
Group 2外齿轮的单向液压泵。该组中的所有泵均可配备铝制和铸铁法兰。旋转方向是顺时针或逆时针。实现的性能是：排量 4.2 cm 3 /rev – 39.6 cm 3 /rev，转速高达 3500 rpm，*大压力高达 300 bar（铸铁版本为 310 bar）。

根据产品的不同，可用的选项有：
• 氟橡胶
• *大压力阀
• 双轴
• 带金属支撑垫圈的轴封
• 高压轴封
• 集成外置轴承

Unidirectional hydraulic pumps with external gears of size group 2. All pumps of this group are available with both aluminium and cast iron flanges. The rotation verse is clockwise or counterclockwise. The performances achieved are: displacement 4.2 cm3/rev – 39.6 cm3/rev, rotation speed up to 3500 rpm, maximum pressures up to 300 bar (310 bar in the cast iron version).

Depending on the product, the options available are:
• Viton
• Maximum pressure valve
• Double shaft
• Shaft seal with metal support washer
• High-Pressure shaft seal
• Integrated outboard bearings



VIVOLO泵XV-3P...02系列介绍及选型
Group 3的铝制单向液压泵，带外齿轮。有些部件可提供铸铁法兰。旋转方向是顺时针或逆时针。实现的性能是：排量 14.89 cm 3 /rev – 86.87 cm 3 /rev，转速高达 3000 rpm，*大压力高达 320 bar。

根据产品的不同，可用的选项有：
• 氟橡胶
• *大压力阀
• 双轴
• 轴封
• 高压轴封

Unidirectional hydraulic pumps in aluminium, and with external gears, of size group 3. Some pieces are available with cast iron flanges. The rotation verse is clockwise or counterclockwise. The performances achieved are: displacement 14.89 cm3/rev – 86.87 cm3/rev, rotation speed up to 3000 rpm, maximum pressures up to 320 bar.

Depending on the product, the options available are:
• Viton
• Maximum pressure valve
• Double shaft
• Shaft seal
• High-Pressure shaft seal

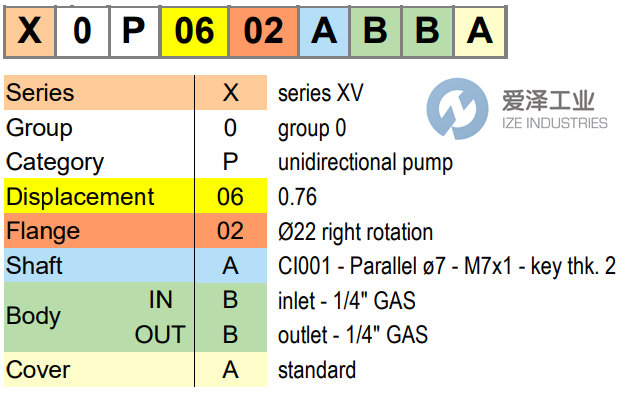

VIVOLO泵常用型号：
VIVOLO X0P0902ABBA
VIVOLO X0P0101ABBA
VIVOLO X0P0201ABBA
VIVOLO X0P0401ABBA
VIVOLO X0P0501ABBA
VIVOLO X0P0601ABBA
VIVOLO X0P0701ABBA
VIVOLO X0P0901ABBA
VIVOLO X0P1101ABBA
VIVOLO X0P1301ABBA
VIVOLO X0P0102ABBA
VIVOLO X0P0202ABBA
VIVOLO X0P0402ABBA
VIVOLO X0P0502ABBA
VIVOLO X0P0602ABBA
VIVOLO X0P0702ABBA
VIVOLO X0P0902ABBA
VIVOLO X0P1102ABBA
VIVOLO X0P1302ABBA
VIVOLO X1P2002FZBB
VIVOLO X1P1602FIIA
VIVOLO X1P1701FIIA
VIVOLO X1P1801FIIA
VIVOLO X1P2001FIIA
VIVOLO X1P2101FIIA
VIVOLO X1P2301FIIA
VIVOLO X1P2501FIIA
VIVOLO X1P2701FIIA
VIVOLO X1P2901FIIA
VIVOLO X1P3101FIIA
VIVOLO X1P3201FIIA
VIVOLO X1P3401FIIA
VIVOLO X1P3601FIIA
VIVOLO X1P1702FIIA
VIVOLO X1P1802FIIA
VIVOLO X1P2002FIIA
VIVOLO X1P2102FIIA
VIVOLO X1P2302FIIA
VIVOLO X1P2502FIIA
VIVOLO X1P2702FIIA
VIVOLO X1P2902FIIA
VIVOLO X1P3102FIIA
VIVOLO X1P3202FIIA
VIVOLO X1P3402FIIA
VIVOLO X1P3602FIIA
VIVOLO X2P5302EPOA
VIVOLO X2P4101EOOA
VIVOLO X2P4301EOOA
VIVOLO X2P4701EOOA
VIVOLO X2P4901EPOA
VIVOLO X2P5101EPOA
VIVOLO X2P5301EPOA
VIVOLO X2P5501EPOA
VIVOLO X2P5701EQPA
VIVOLO X2P5901EQPA
VIVOLO X2P6101EQPA
VIVOLO X2P6301EQPA
VIVOLO X2P4102EOOA
VIVOLO X2P4302EOOA
VIVOLO X2P4702EOOA
VIVOLO X2P4902EPOA
VIVOLO X2P5102EPOA
VIVOLO X2P5302EPOA
VIVOLO X2P5502EPOA
VIVOLO X2P5702EQPA
VIVOLO X2P5902EQPA
VIVOLO X2P6102EQPA
VIVOLO X2P6302EQPA
VIVOLO X3P6601AAAA
VIVOLO X3P6801AAAA
VIVOLO X3P7001AAAA
VIVOLO X3P7201AAAA
VIVOLO X3P7401ABBA
VIVOLO X3P7801ABBA
VIVOLO X3P7901ABBA
VIVOLO X3P8001ABBA
VIVOLO X3P8101ABBA
VIVOLO X3P8201ABBA
VIVOLO X3P8301ACCA
VIVOLO X3P8501ACCA
VIVOLO X3P8601ACCA
VIVOLO X3P8701ACCA
VIVOLO X3P8901ACCA
VIVOLO X3P6602AAAA
VIVOLO X3P6802AAAA
VIVOLO X3P7002AAAA
VIVOLO X3P7202AAAA
VIVOLO X3P7402ABBA
VIVOLO X3P7802ABBA
VIVOLO X3P7902ABBA
VIVOLO X3P8002ABBA
VIVOLO X3P8102ABBA
VIVOLO X3P8202ABBA
VIVOLO X3P8302ACCA
VIVOLO X3P8502ACCA
VIVOLO X3P8602ACCA
VIVOLO X3P8702ACCA
VIVOLO X3P8902ACCA

如果您需要完整的VIVOLO的相关技术咨询，请随时致电爱泽工业，或者访问网站,我们将尽全力解决您的问题。
