爱泽工业2023年7月部分到货产品专题及库存——BL AUTOTEC篇

如下为我司爱泽工业IZE_Industries本月到货BL AUTOTEC相关产品，欢迎致电索取样本资料和产品信息。

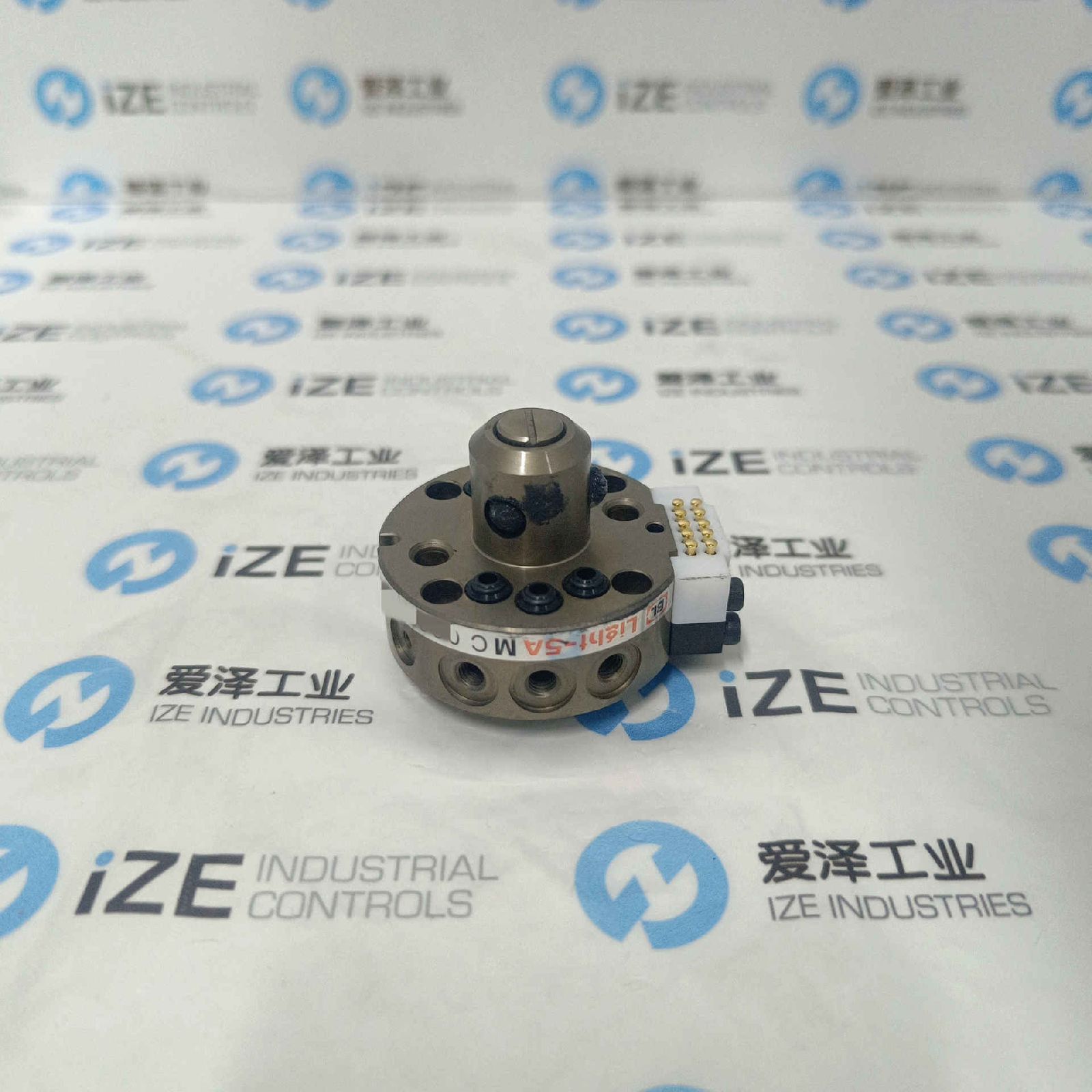

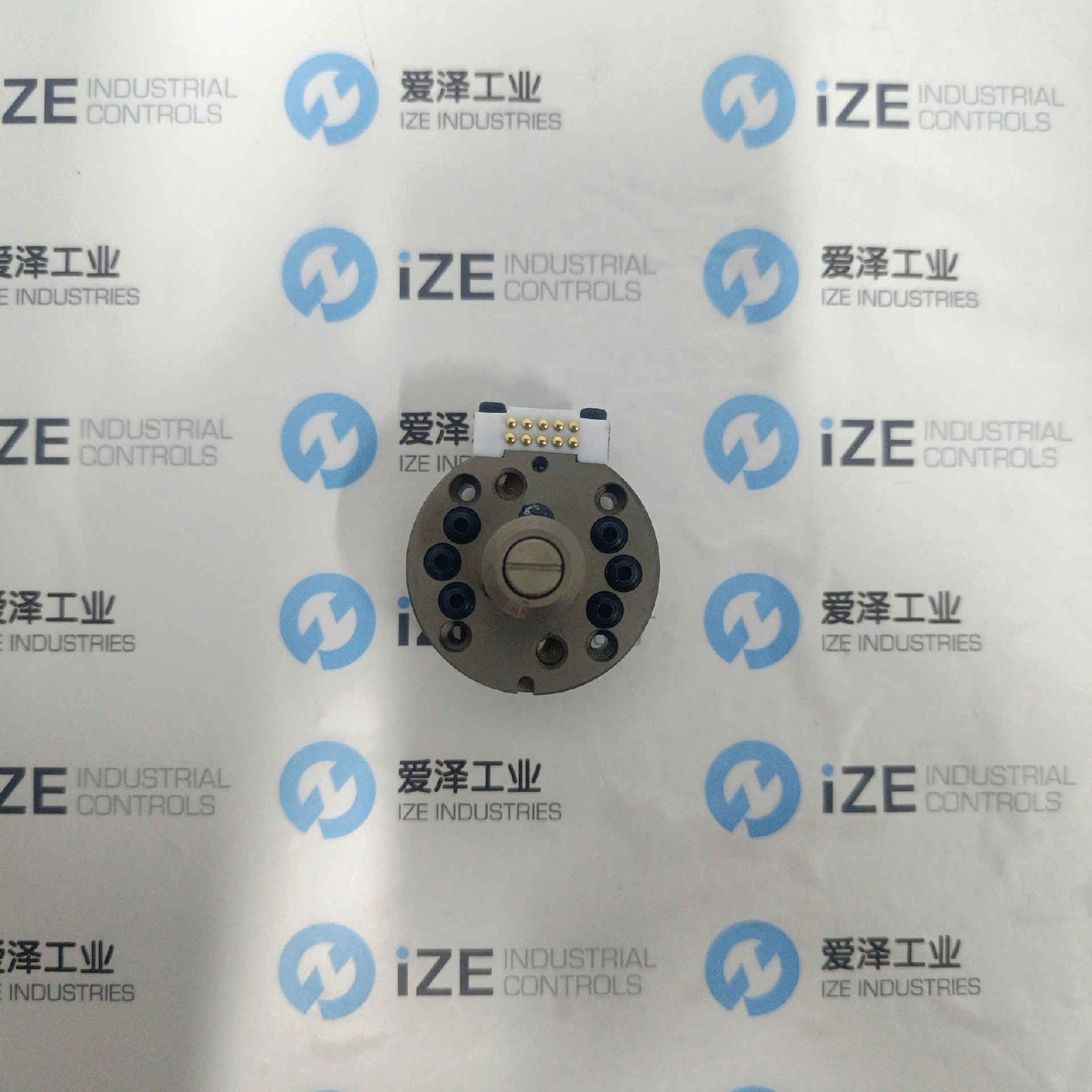

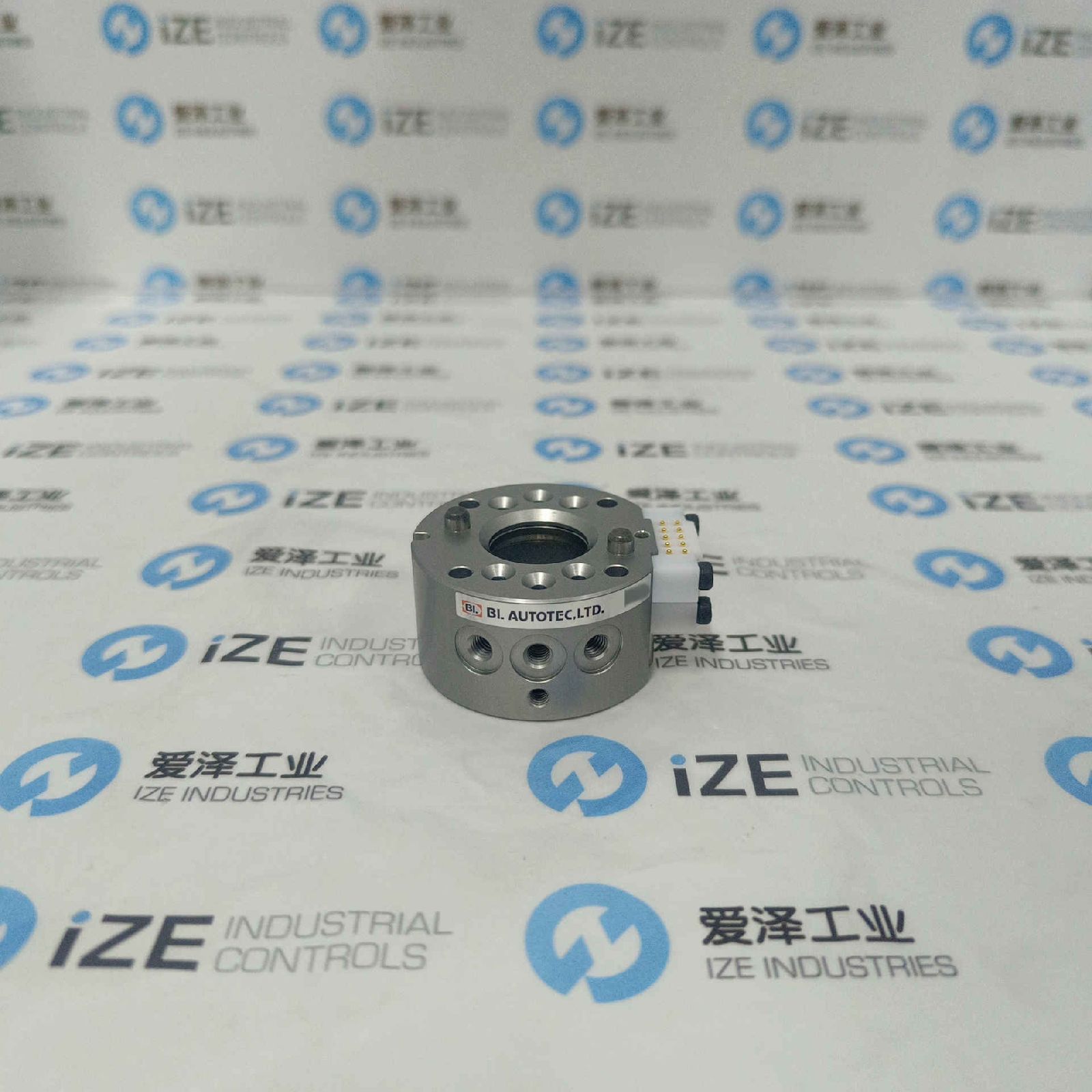

BL AUTOTEC工具盘Light-5A-M-H10A

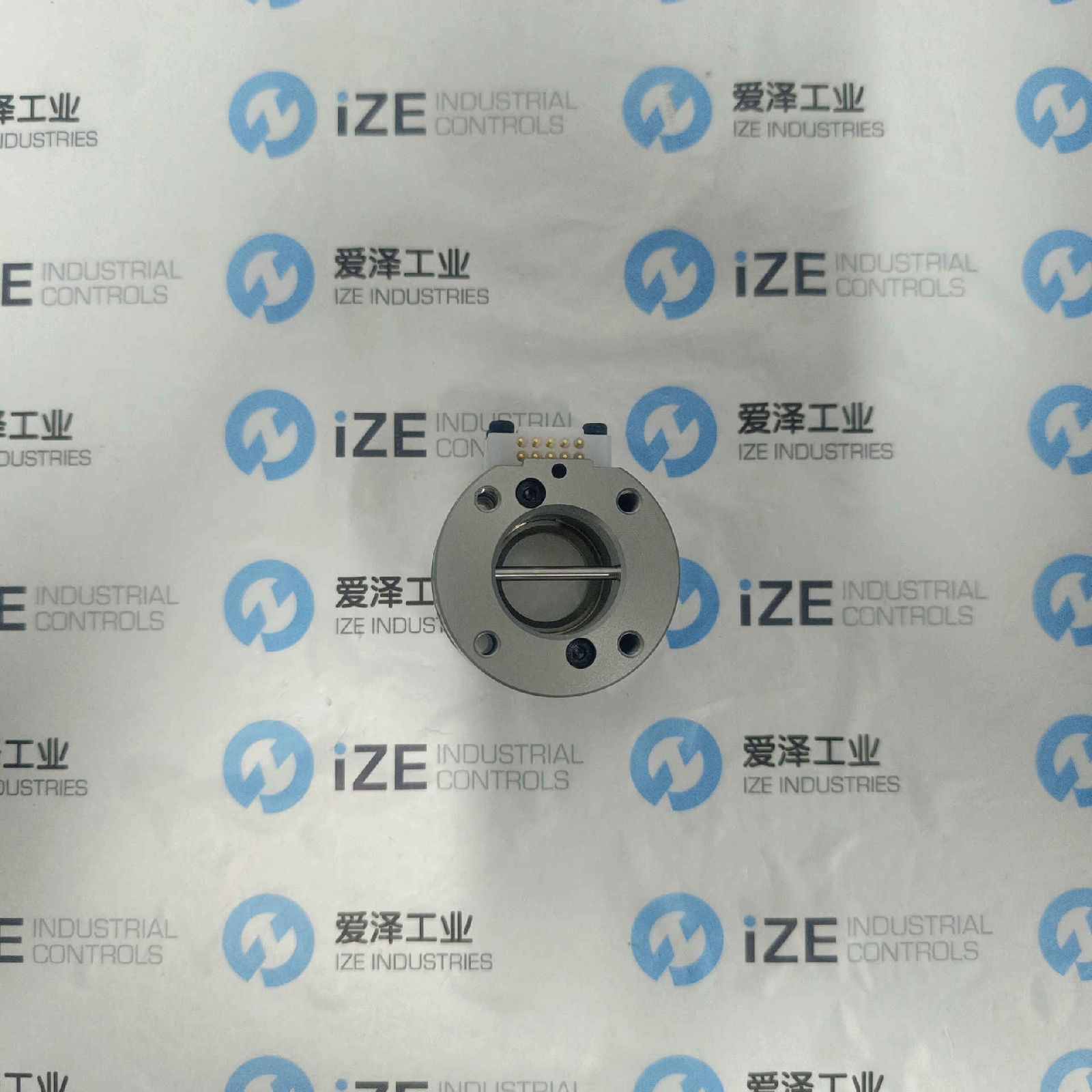

BL AUTOTEC工具盘Light-5A-T-H10A

BL AUTOTEC工具盘FLEX-70A-M-XXXA-XXXB-SX

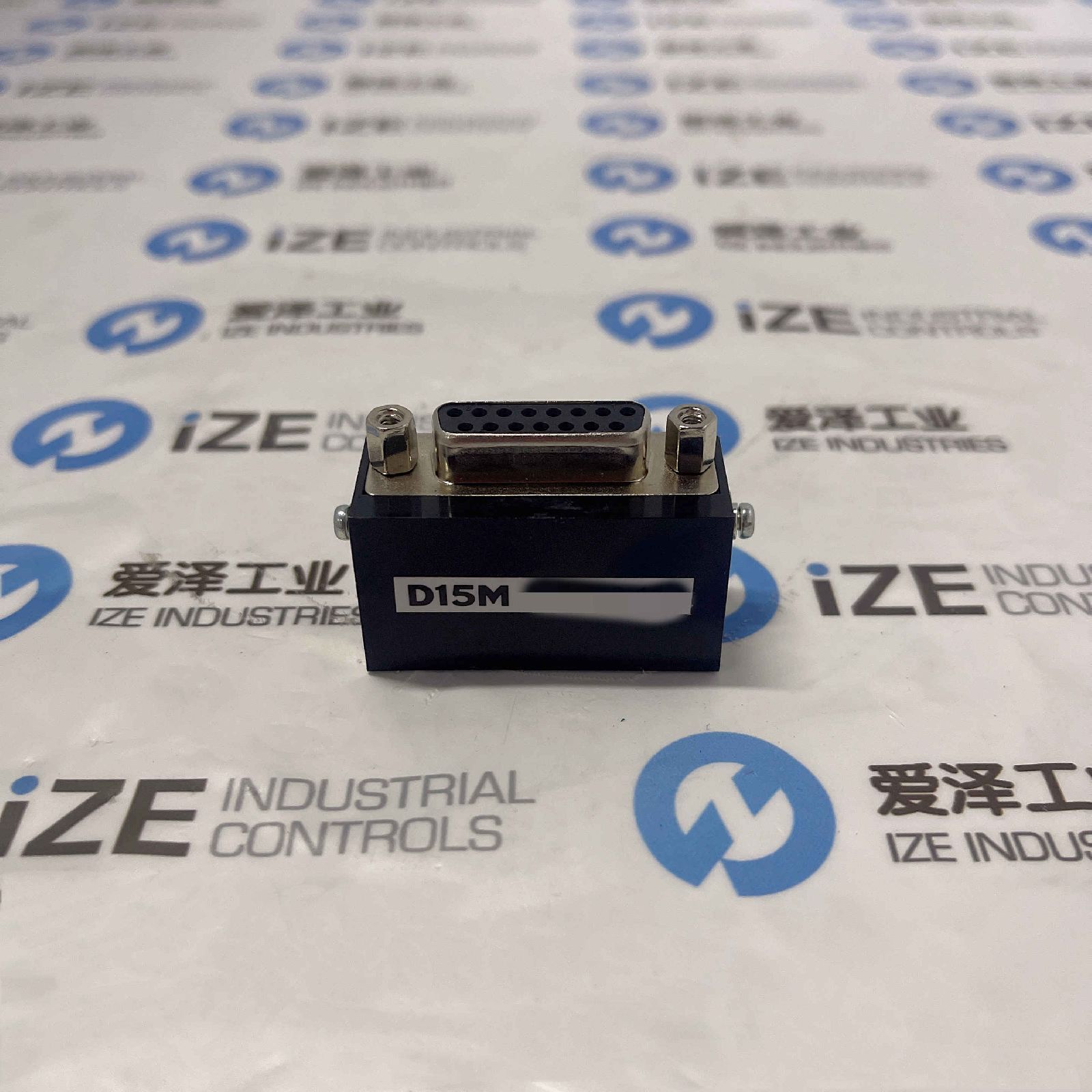

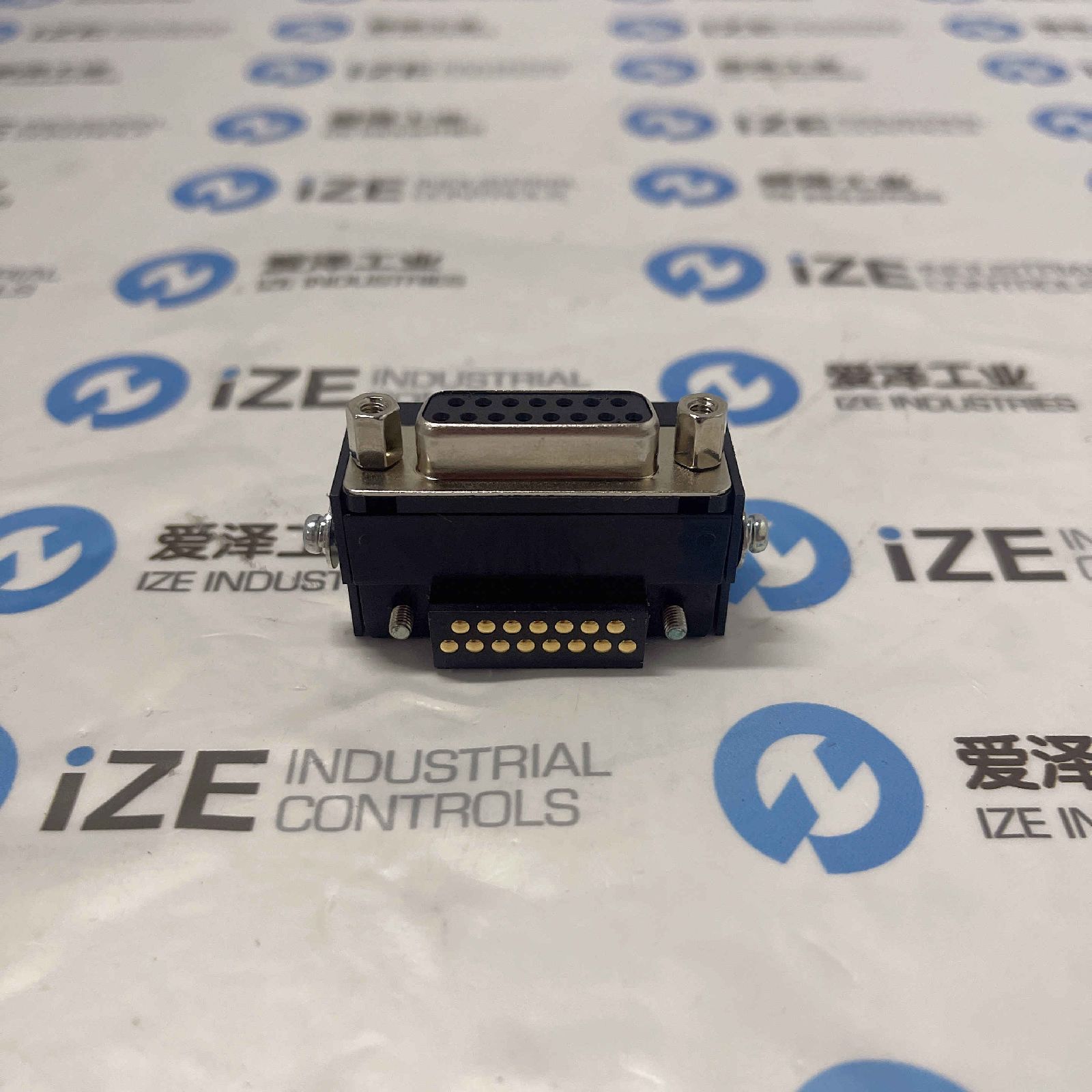

BL AUTOTEC模块D15N-M

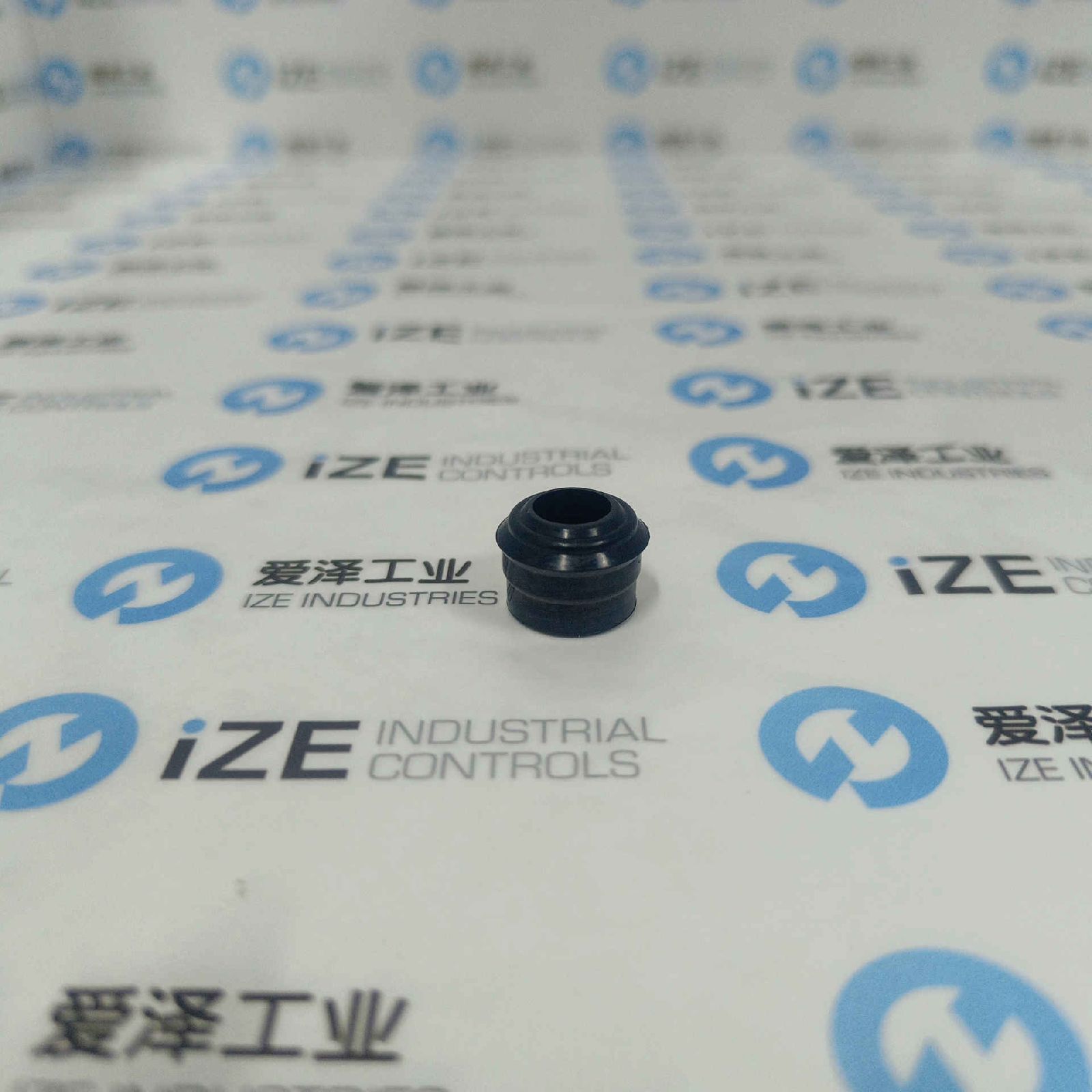

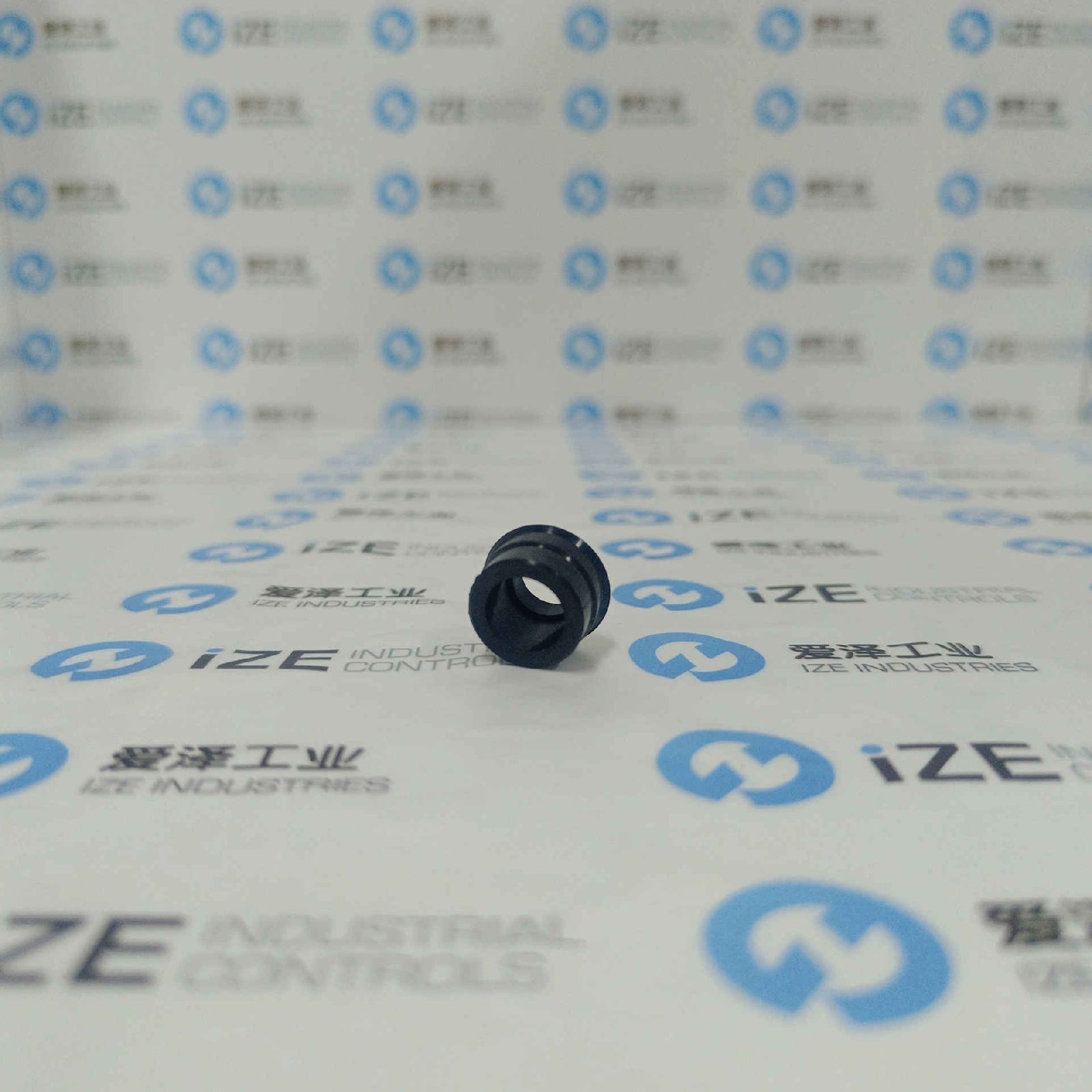

BL AUTOTEC橡皮阀P000006

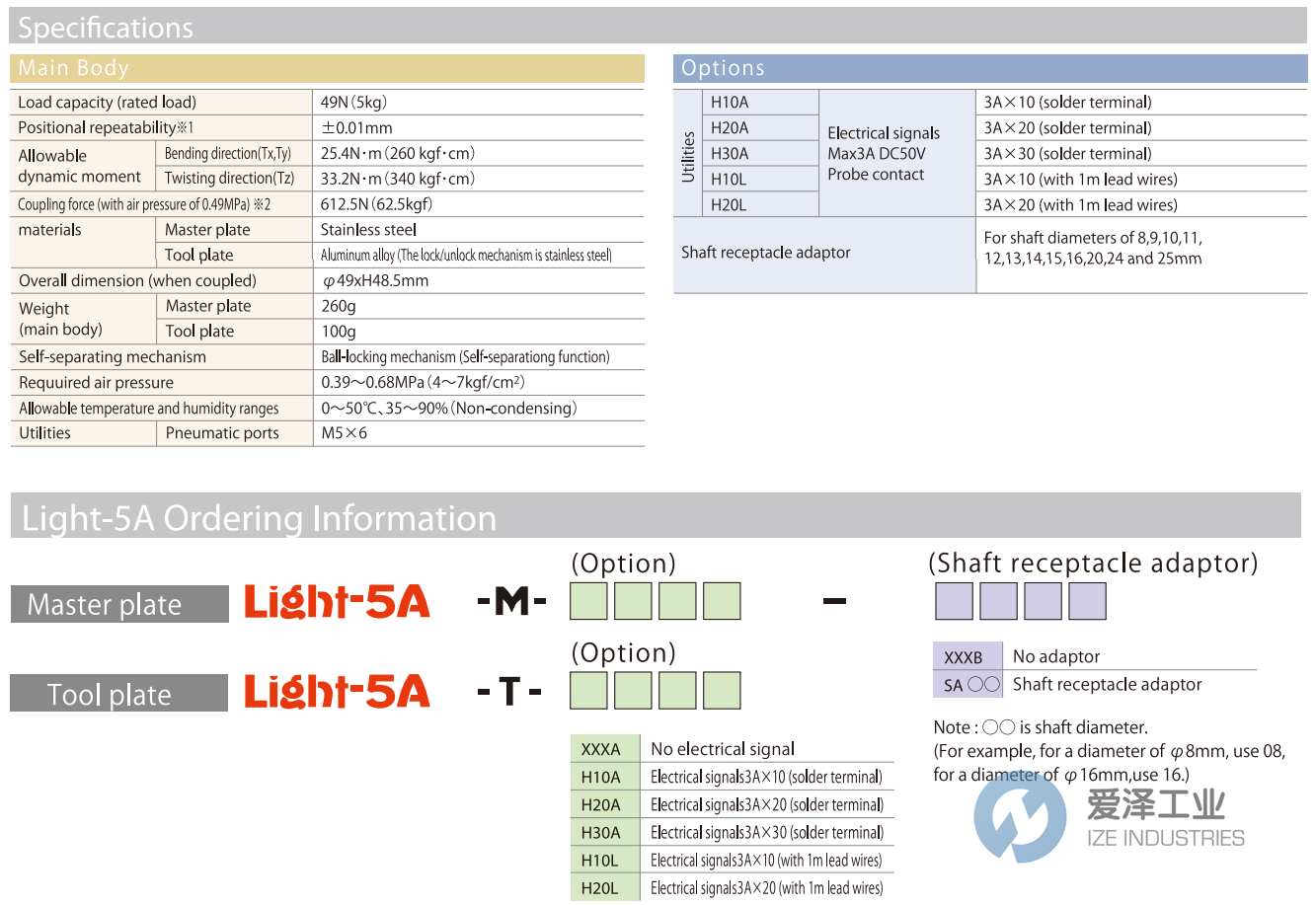

BL AUTOTEC工具盘Light-5A系列介绍及选型
BL QUICK-CHANGE Model Light-5A是一款自动换刀装置，专为低负载能力机器人设计，通常用于电气零件、精密设备和机械零件的装配和搬运。在解锁过程中，Light-5A主板将工具板推开（自分离功能）。Light-5A 配有可选的轴插座适配器，可将其安装到轴型机器人上。

主板附件
・4 个螺栓（M3×20）
・1 个定位销

特点
自分离功能，Light-5A 锁定机构设计用于在解锁过程中将工具板推开，从而提供可靠的分离。

无需触摸即可锁定，主板可以锁定到工具板上，两者之间有间隙。

故障安全锁定机制，BL 独特的锁定/解锁机制包含机械故障安全功能，如果气压关闭，主板和工具板不会脱开。

The BL QUICK-CHANGE Model Light-5A is a device for automatic tool changing, specially designed for low payload capacity robots, generally used in the assembly and handling of electrical parts, precision equipment and mechanical parts. During the unlocking process, the Light-5A Master plate pushes the Tool plate off (self-separating function). An optional shaft receptacle adaptor is available with the Light-5A to attach it to a shaft-type robot.。

Master plate Attachments
・4 bolts（M3×20）
・1 locating pin

Features
Self-separating function. The Light-5A locking mechanism has been designed to push the Tool plate off during the unlocking process, providing reliable separation.

Lock without touching. The Master plate can lock onto the Tool plate with a gap between them.

Superior fail-safe locking mechanism. BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

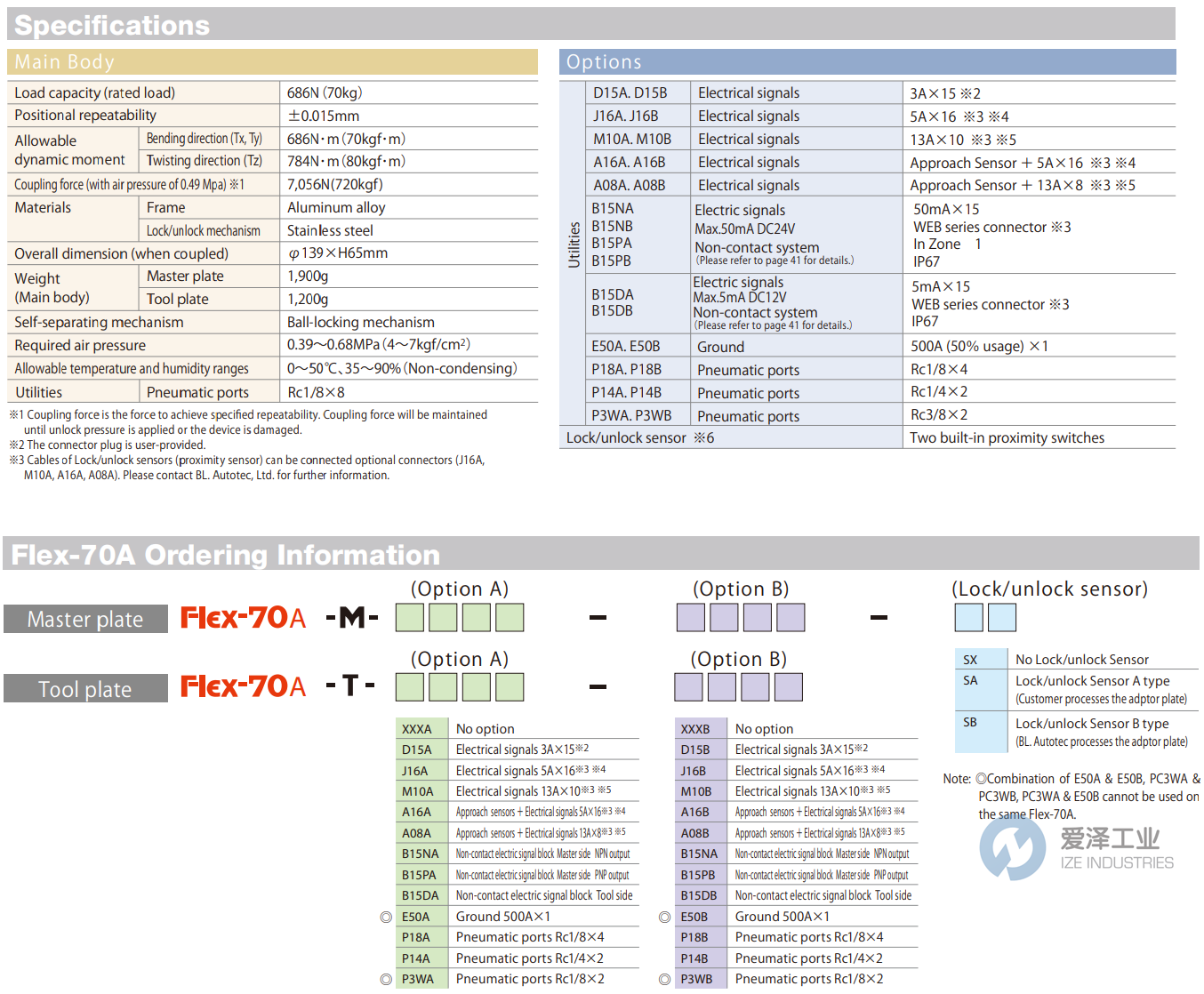

BL AUTOTEC工具盘Flex-70 系列介绍及选型
Flex-70 连接到机器人法兰上，以便快速可靠地更换末端执行器（例如工具）。工具板中的球锁系统具有坚固的规格，即使对于力矩负载也是如此。除了传统的气动端口、电信号和锁定/解锁传感器之外，现在还可以选择地面和接近传感器。可用于焊接、冲压处理和去毛刺应用。
带有接近传感器的接地和电信号模块作为常用电信号接触块、气动端口块和锁定/解锁传感器的选项添加。

主板附件
・6 个螺栓（M6×40)
・1 个定位销
※密封板、O 形环和螺钉已预先组装。

特点
・对于去毛刺等重型应用，特殊的密封件可防止灰尘在板连接时进入锁定机构和电触点。
・除了传统的航空端口、电信号和锁定/解锁传感器之外，还可以添加接近传感器和接地。
・独特的设计可纠正主板和工具板耦合时的错位。板中内置的接近传感器系统可验证耦合能力。
・BL 独特的锁定/解锁机制包含机械故障安全功能，如果气压关闭，主板和工具板不会脱开。

Flex-70 is attached to the robot flange for quick and reliable exchange of end-effectors, such as tools.  The ball-lock system in the Tool Plate is a sturdy specification, even for moment loads. A ground and approach sensor are now available as options in addition to conventional pneumatic ports, electric signals and a lock/unlock sensor.  May be used in welding, press handling and deburring applications.
Earth contact and electric signal module with approach sensor are added as option to usual electric signal contact blocks, pneumatic port blocks and lock/unlock sensor.

Master plate Attachments
・6 bolts（M6×40)
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.

Features
・For heavy duty applications, such as deburring, a special seal prevents dust from entering the locking mechanism and electrical contacts when the plates are coupled.
・In addition to traditional air ports, electrical signals and a lock/unlock sensor, an approach sensor and a ground can be added.
・The unique design corrects misalignment when the Master and Tool plates couple. An approach sensor system, built into the plates, verifies coupling capability.
・BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.



BL AUTOTEC工具盘及配件常用型号：
BL AUTOTEC D15U USP-100A-M(T)-D15U
BL AUTOTEC D15A,D15B Flex-100-M(T)-D15A,D15B
BL AUTOTEC D15A,D15B Flex-70A-M(T)-D15A,D15B
BL AUTOTEC D15Y QC-60D-M(T)-D15Y
BL AUTOTEC D15A,D15B Flex-40B-M(T)-D15A,D15B
BL AUTOTEC D15N QC-20D-M(T)-D15N
BL AUTOTEC P000006
BL AUTOTEC LIGHT-5A-T-XXXA
BL AUTOTEC LIGHT-5A-T-H10A
BL AUTOTEC LIGHT-5A-T-H20A
BL AUTOTEC LIGHT-5A-T-H30A
BL AUTOTEC LIGHT-5A-T-H10BL AUTOTEC L
BL AUTOTEC LIGHT-5A-T-H20BL AUTOTEC L
BL AUTOTEC LIGHT-5A-T-XXXA-XXXB
BL AUTOTEC LIGHT-5A-T-H10A-XXXB
BL AUTOTEC LIGHT-5A-T-H20A-XXXB
BL AUTOTEC LIGHT-5A-T-H30A-XXXB
BL AUTOTEC LIGHT-5A-T-H10BL AUTOTEC L-XXXB
BL AUTOTEC LIGHT-5A-T-H20BL AUTOTEC L-XXXB
BL AUTOTEC LIGHT-5A-T-XXXA-SA
BL AUTOTEC LIGHT-5A-T-H10A-SA
BL AUTOTEC LIGHT-5A-T-H20A-SA
BL AUTOTEC LIGHT-5A-T-H30A-SA
BL AUTOTEC LIGHT-5A-T-H10BL AUTOTEC L-SA
BL AUTOTEC LIGHT-5A-T-H20BL AUTOTEC L-SA
BL AUTOTEC LIGHT-5A-M-XXXA
BL AUTOTECLIGHT-5A-M-H10A
BL AUTOTEC LIGHT-5A-M-H20A
BL AUTOTEC LIGHT-5A-M-H30A
BL AUTOTEC LIGHT-5A-M-H10BL AUTOTEC L
BL AUTOTEC LIGHT-5A-M-H20BL AUTOTEC L
BL AUTOTEC LIGHT-5A-M-XXXA-XXXB
BL AUTOTEC LIGHT-5A-M-H10A-XXXB
BL AUTOTEC LIGHT-5A-M-H20A-XXXB
BL AUTOTEC LIGHT-5A-M-H30A-XXXB
BL AUTOTEC LIGHT-5A-M-H10BL AUTOTEC L-XXXB
BL AUTOTEC LIGHT-5A-M-H20BL AUTOTEC L-XXXB
BL AUTOTEC LIGHT-5A-M-XXXA-SA
BL AUTOTEC LIGHT-5A-M-H10A-SA
BL AUTOTEC LIGHT-5A-M-H20A-SA
BL AUTOTEC LIGHT-5A-M-H30A-SA
BL AUTOTEC LIGHT-5A-M-H10BL AUTOTEC L-SA
BL AUTOTEC LIGHT-5A-M-H20BL AUTOTEC L-SA
BL AUTOTEC FLEX-70A-M-XXXA-XXXB-SX
BL AUTOTEC FLEX-70A-M-D15A
BL AUTOTEC FLEX-70A-T-D15B
BL AUTOTEC FLEX-70A-T-D15A-XXXB
BL AUTOTEC FLEX-70A-M-A16A-XXXB-SX
BL AUTOTEC FLEX-70A-T-A16A-XXXB

如果您需要完整的BL AUTOTEC的相关技术咨询，请随时致电爱泽工业，或者访问网站我们将尽全力解决您的问题。
