CONTROL TECHNIQUES编程模块SM-APPLICATIONS PLUS

CONTROL TECHNIQUES已加入NIDEC集团，CONTROL TECHNIQUES以其 40 多年来驱动技术领域经验，为客户提供高性能，高可靠性的能效型产品。

CONTROL TECHNIQUES编程模块SM-APPLICATIONS PLUS产品介绍

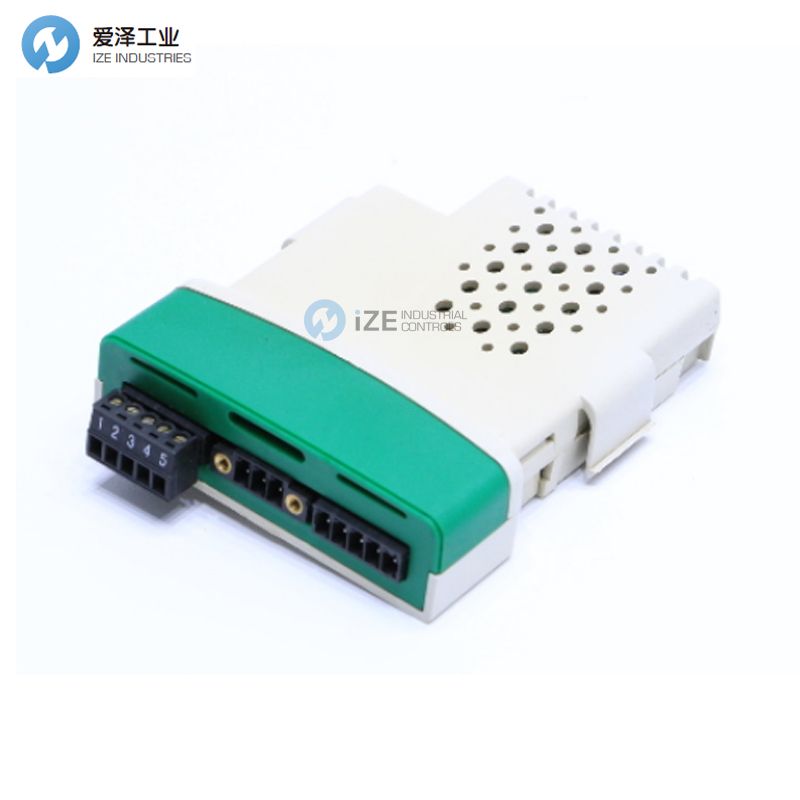

SM-Applications Plus
SM-Applications Plus is a high performance automation and motion controller with integrated fieldbus communications and high speed I/O. The module is configured using SyPTPro, an intuitive software tool that provides a rich automation programming environment, monitoring and debugging tools and CTNet network configurator for high speed, deterministic drive system communications.

Features include:

Real-time control - A key benefit of the SM-Applications Plus module is the real-time access to all of the drive’s parameters, plus access to data from I/O and other drives. The module uses a high speed multi-tasking operating system with task update times as low as 250μs. Tasks are synchronised to the drive’s own control loops to give the best possible performance for drive control and motion.

Inputs/Outputs - The module has two digital inputs and two digital outputs for high-speed I/O operations such as position capture and actuator firing.

Drive-to-drive communication - SM-Applications Plus modules include a high speed drive-to-drive network called CTNet. CTNet is optimised for intelligent drive systems offering flexible peer to peer communications. The bus has the capability to connect to remote I/O, operator panels, Unidrive SP, Affinity, Mentor MP and Mentor II drives and PCs using an OPC server.

High speed serial port - The module features a serial communications port supporting standard protocols such as Modbus for connection to external devices such as operator interface panels.
Drive Compatibility

This module operates with: Mentor MP, plus the following superseeded products: Unidrive SP, Commander SK and Affinity

SM-应用程序增强版
SM-Applications Plus 是一款高性能自动化和运动控制器，具有集成的现场总线通信和高速 I/O。该模块使用SyPTPro进行配置，SyPTPro是一款直观的软件工具，可提供丰富的自动化编程环境、监控和调试工具以及 CTNet 网络配置器，以实现高速、确定性驱动系统通信。

特点包括：

实时控制 - SM-Applications Plus 模块的一个主要优点是实时访问所有驱动器参数，以及访问来自 I/O 和其他驱动器的数据。 该模块采用高速多任务操作系统，任务更新时间低至250μs。任务与驱动器自身的控制环路同步，为驱动器控制和运动提供*佳性能。

输入/输出 - 该模块具有两个数字输入和两个数字输出，用于高速I/O操作，例如位置捕获和执行器启动。

驱动器到驱动器通信 - SM-Applications Plus 模块包括一个称为 CTNet 的高速驱动器到驱动器网络。CTNet 针对智能驱动系统进行了优化，提供灵活的点对点通信。该总线能够使用OPC服务器连接到远程 I/O、操作面板、Unidrive SP、Affinity、Mentor MP和Mentor II 驱动器以及PC。

高速串行端口 - 该模块具有支持标准协议（例如 Modbus）的串行通信端口，用于连接到操作员界面面板等外部设备。
驱动器兼容性

该模块可与：Mentor MP以及以下超级种子产品配合使用：Unidrive SP、Commander SK和 Affinity

CONTROL TECHNIQUES编程模块其他常见型号：
CONTROL TECHNIQUES SM-Resolver
CONTROL TECHNIQUES SM-Universal Encoder Plus
CONTROL TECHNIQUES SM-Encoder Plus
CONTROL TECHNIQUES SM-APPLICATIONS PLUS
CONTROL TECHNIQUES SM-PROFIBUS-DP
CONTROL TECHNIQUES SM-CAN
CONTROL TECHNIQUES SM-DeviceNet
CONTROL TECHNIQUES SM-CANopen
CONTROL TECHNIQUES SM-SLM
