爱泽工业2023年8月部分到货产品专题及库存——METRIX篇

如下为我司爱泽工业IZE_Industries本月到货METRIX相关产品，欢迎致电索取样本资料和产品信息。




METRIX速度传感器ST5484E-151-0400-00




METRIX加速度计SA6200A-211




METRIX信号调节器5535-335-1-00-100S

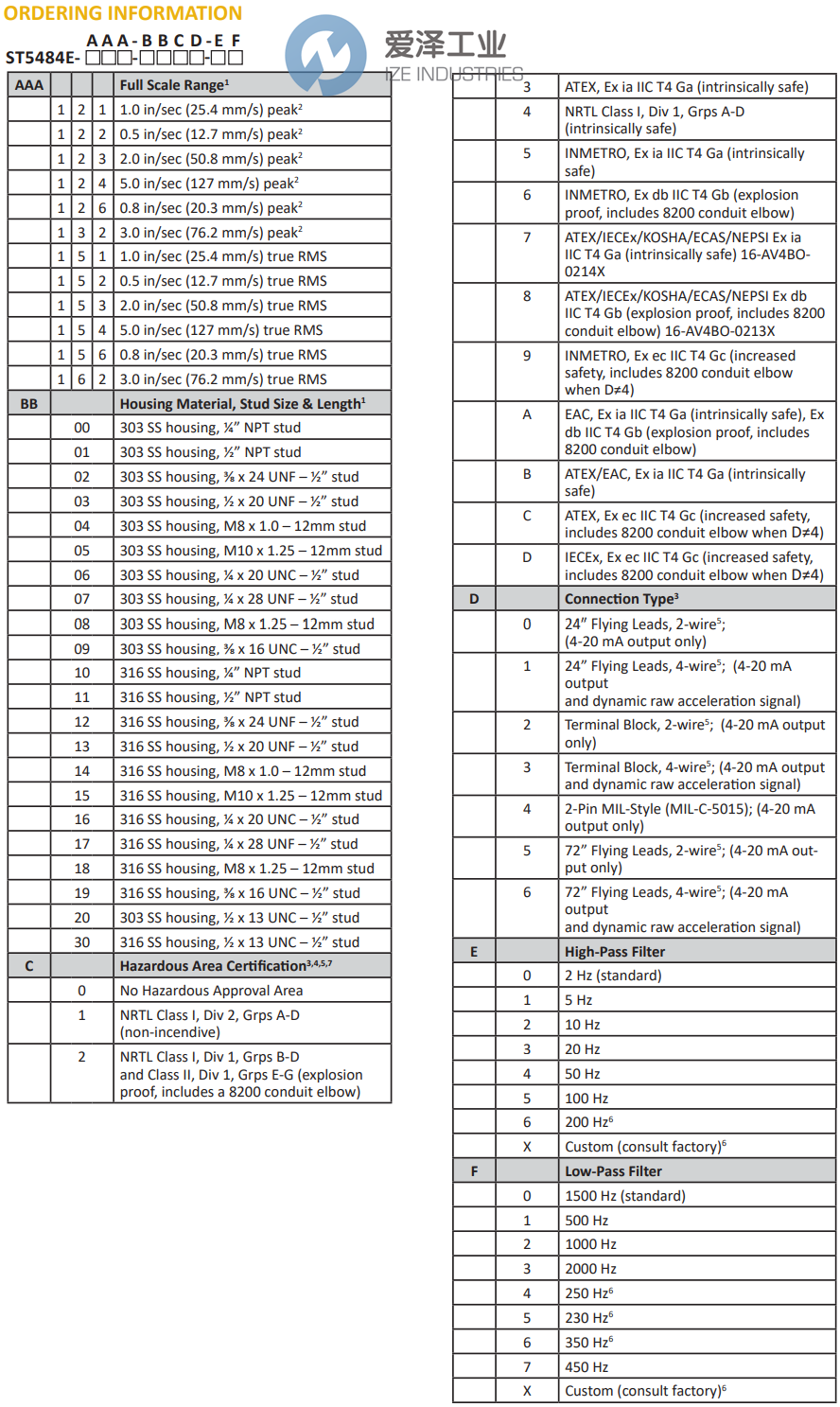

METRIX速度传感器ST5484E系列介绍及选型
ST5484E 是一款独立式振动速度传感器，将压电加速度计、信号集成器、RMS 峰值检测器和 4-20 mA 信号调节器集成到单个封装中。 它可以直接安装在机箱或轴承箱上，无需插入信号调节设备。 集成加速度（速度）信号的幅度被转换为与工业过程控制仪表（例如 PLC、DCS 和 SCADA 系统）兼容的比例 4-20 mA 信号，这些仪表可以为简化的振动监控策略提供趋势和/或报警功能 。

当选择飞线或端子块连接器选项时，传感器不需要单独的环境外壳，并且可以直接接受导管。 为了降低安装成本，它可以与屏障一起使用以实现本质安全安装，或直接连接到防爆导管配件以实现防爆，或与增强安全安装一起使用。

The ST5484E is a self-contained seismic velocity transmitter that incorporates a piezoelectric accelerometer, signal integrator, RMS peak detector, and a 4-20 mA signal conditioner into a single package. It can be mounted directly on a machine case or bearing housing without intervening signal conditioning equipment. The amplitude of the integrated acceleration (velocity) signal is converted to a proportional 4-20 mA signal compatible with industrial process control instrumentation such as PLCs, DCSs, and SCADA systems that can provide trending and/or alarming capabilities for a simplified vibration monitoring strategy.

When the flying lead or terminal block connector options are chosen, the transmitter does not need a separate environmental housing and can directly accept conduit. To reduce installed cost, it can be used with barriers for intrinsically safe installations, or wired directly to explosion-proof conduit fittings for explosionproof, or with increased safety installations.



METRIX加速度计SA6200A系列介绍及选型
SA6200A API 670 加速度计能够感测各种振动频率，这使其非常适合在各种机器上使用。 它由封装在 316 不锈钢外壳内的温度稳定压电传感器和放大器组成，传感电路与外壳电气隔离。 内置放大器提供高电平、低阻抗输出，这是行业标准。

特点和优点
• 高精度和重复性
• 使用独立极性端子 (IPT®) 消除接线极性错误
• 使用防滑坡技术消除因高频噪声校正为低频而导致的错误指示

The SA6200A API 670 Accelerometer is capable of sensing a wide range of vibration frequencies, which makes it ideal for use on a variety of machines. It consists of a temperature stabilized piezo-electric sensor and an amplifier packaged together in a 316 stainless steel case, from which the sensing circuit is electrically isolated. A built-in amplifier provides a high level, low impedance output, which is the industry standard.

FEATURES AND BENEFITS
• High accuracy and repeatability
• Eliminate wiring polarity errors with Independent Polarity Terminals (IPT®)
• Eliminate false indications caused by high frequency noise rectified as low frequency using anti-ski slope technology



METRIX信号调节器5535系列介绍及选型
这些加速度计信号调节器接受来自安装在机器外壳上的加速度计的信号，并产生与测量变量成比例的 4-20 mA 电流源输出。 检测电路对真正的 RMS 振动做出响应，但输出可以缩放到峰值或 RMS 单位。 绿色 LED 指示灯指示传感器和电缆的完整性。 如果传感器发生故障，LED 就会熄灭，输出电流会降至 3.6 mA 以下，从而发出故障信号。 BNC 连接器可以访问缓冲的输入信号以进行本地分析。

特征
• 机架安装显示器的低成本替代方案
• 长距离（300 m 或 1000 ft）驱动动态信号
• 将加速度计连接至 PLC、DCS 或其他 4-20 mA 输入监视器
• 提供与振动水平成比例的 4-20 mA 输出
• 传感器/电缆输入状态灯（绿色LED）
• 用于 FFT 分析仪的 BNC 连接器
• 可选指示器和/或电流隔离
• 适用于特定机器条件的高、低和带通频率滤波器

These accelerometer signal conditioners accept signals from machine casing mounted accelerometers and produce a 4-20 mA current source output proportional to the measured variable. The detection circuit is responsive to true RMS vibration but the output may be scaled either to peak or RMS units. A green LED indicates sensor and cable integrity. In the event of sensor failure, the LED extinguishes and the output current is driven below 3.6 mA, thereby signaling a malfunction. A BNC connector gives access to the buffered input signal for local analysis.

FEATURES
• Reduced cost alternatives to rack mount monitors
• Drives dynamic signals over long distances (300 m or 1000 ft)
• Interfaces an accelerometer to a PLC, DCS or other 4-20 mA input monitor
• Provides 4-20 mA output proportional to vibration level
• Sensor/cable input status light (green LED)
• BNC connector for FFT analyzers
• Optional indicator and/or galvanic isolation
• High, Low and Band Pass Frequency Filters for specific machine conditions



METRIX其他常用型号：
METRIX ST5484E-121-0200-00
METRIX ST5484E-121-532-00
METRIX ST5484E-122-510-00
METRIX ST5484E-151-132-00
METRIX ST5484E-151-1472-00
METRIX ST5484E-151-1482-00
METRIX ST5484E-151-0872-00
METRIX ST5484E-151-432-00
METRIX ST5484E-151-580-00
METRIX ST5484E-151-582-00
METRIX ST5484E-151-0400-00
METRIX 5535-335-1-00-100S
METRIX 5535-107-0-00-100S
METRIX 5535-135-0-06-100S
METRIX 5535-137-0-00-100S
METRIX SA6200A-211
METRIX SA6200A-101
METRIX SA6200A-001
METRIX SA6200A-201
METRIX SA6200A-011
METRIX 5485C-535
METRIX 5485C-007-010 T4
METRIX 5485C-007-030 T1
METRIX 4850-020-593
METRIX ST5484E-151-0182-00
METRIX 5535-307-0-00-100S
METRIX ST5484E-151-14B2-00

如果您需要完整的METRIX的相关技术咨询，请随时致电爱泽工业，或者访问网站,我们将尽全力解决您的问题。
