爱泽工业2023年11月部分到货产品专题及库存——CINCINNATI FAN篇

如下为我司爱泽工业IZE_Industries本月到货CINCINNATI FAN相关产品，欢迎致电索取样本资料和产品信息。


CINCINNATI FAN风机PB-8

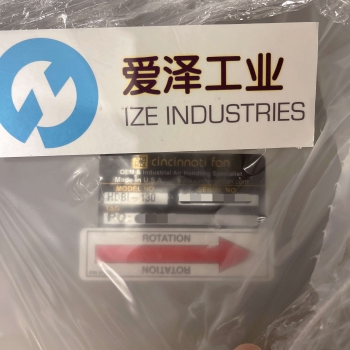

CINCINNATI FAN风机HDBI-130


CINCINNATI FAN风机HDBI-120

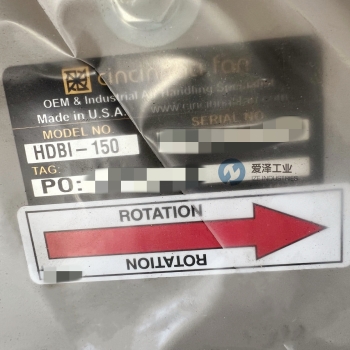

CINCINNATI FAN风机HDBI-150

CINCINNATI FAN风机PB系列介绍
Cincinnati Fan 生产八种尺寸的铸铝压力鼓风机。提供多种轮子和入口尺寸，以提供广泛的直接驱动性能等级。皮带驱动装置可提供更大的灵活性。

• 容量高达 4500 CFM 和 20" SPWG
• 标准气流温度高达 150°
• 可选高温结构高达 400°

Cincinnati Fan manufactures eight sizes of cast aluminum pressure blowers. Multiple wheels and inlet sizes are offered to provide extensive direct drive performance ratings. Belt driven arrangements are available for even more flexibility.

• Capacities up to 4500 CFM and 20" SPWG
• Standard air stream temperatures to 150°
• Optional high temperature construction up to 400°

CINCINNATI FAN风机HDBI系列介绍
Cincinnati Fan 制造十二种尺寸的 HDBI 型后倾鼓风机，采用 AMCA II、III 和 IV 级结构。 HDBI 后倾式鼓风机是高效输送大风量的选择。 所有型号均采用三轮设计，并具有 50% 至 100% 的多种宽度，可通过直驱鼓风机提供所需的精确性能。 还提供四个皮带驱动装置。 提供全铝或不锈钢结构。 该风机采用 AMCA A、B 或 C 防火花结构。

容量高达 51,965 CFM 和 25" SPWG。
标准结构，气流温度高达 200° F (93° C)。
可选高温结构，温度高达 750° F (398° C)。

Cincinnati Fan manufacturers twelve sizes of Model HDBI Backward Inclined Blowers in AMCA Class II, III and IV construction. The HDBI Backward Inclined Blowers are an excellent choice for efficient delivery of high air volumes. All models are available with three wheel designs and in multiple widths from 50% to 100%, to deliver the exact performance you need with a direct driven blower. Four belt driven arrangements are also available. All aluminum or stainless steel construction is available. This fan is available in AMCA A, B, or C spark resistant construction.

Capacities up to 51,965 CFM and 25" SPWG.
Standard construction, air stream temperatures up to 200° F (93° C).
Optional high temperature construction, temperatures up to 750° F (398° C).

CINCINNATI风机HP系列介绍
Cincinnati Fan 生产 HP 系列 II 高静压径流式鼓风机，共有 12 种型号，每种型号都有多种轮子尺寸。HP-II 风机包括连续焊接的重型钢外壳，带有可拆卸的入口板和外壳、聚四氟乙烯轴封以及法兰入口和出口。有两种不同的轮设计可供选择，其中一种具有持续升高的压力特性，可确保稳定运行以完全关闭。HP 系列 II 风机还提供全铝或全不锈钢结构。 该风机采用 AMCA A、B 或 C 防火花结构。

• 容量高达 7000 CFM 和 78" SPWG。
• 标准结构，气流温度高达 200°F (93°C)。
• 可选高温结构，温度高达 750°F (398°C)

Cincinnati Fan manufactures HP-Series II High Static Pressure Radial Blowers in twelve models, each available with multiple wheel sizes. The HP-II fans include continuously welded heavy gauge steel housings with removable inlet plates and housings, Teflon shaft seals, and flanged inlets and outlets. Two different wheel designs are available including one with a continuously rising pressure characteristic for assured stable operation to complete shut off. The HP-Series II fan is also available in all aluminum or all stainless steel construction. This fan is available in AMCA A, B, or C spark resistant construction.

• Capacities up to 7000 CFM and 78" SPWG.
• Standard construction, air stream temperatures up to 200°F (93°C).
• Optional high temperature construction, temperatures up to 750°F (398°C)

CINCINNATI FAN风机常用型号：
CINCINNATI FAN PB-8
CINCINNATI FAN PB-9
CINCINNATI FAN PB-10A
CINCINNATI FAN PB-12A
CINCINNATI FAN PB-14A
CINCINNATI FAN PB-15A
CINCINNATI FAN PB-18
CINCINNATI FAN PB-18WA
CINCINNATI FAN HDBI-120
CINCINNATI FAN HDBI-130
CINCINNATI FAN HDBI-150
CINCINNATI FAN HDBI-160
CINCINNATI FAN HDBI-180
CINCINNATI FAN HDBI-200
CINCINNATI FAN HDBI-220
CINCINNATI FAN HDBI-240
CINCINNATI FAN HDBI-270
CINCINNATI FAN HDBI-300
CINCINNATI FAN HDBI-330
CINCINNATI FAN HDBI-360
CINCINNATI FAN HP-4C17
CINCINNATI FAN HP-4C18
CINCINNATI FAN HP-4C19
CINCINNATI FAN HP-4C20
CINCINNATI FAN HP-4C21
CINCINNATI FAN HP-4C22
CINCINNATI FAN HP-6B14
CINCINNATI FAN HP-6B15
CINCINNATI FAN HP-6B16
CINCINNATI FAN HP-6B17
CINCINNATI FAN HP-6B18
CINCINNATI FAN HP-6C19
CINCINNATI FAN HP-6C20
CINCINNATI FAN HP-6C21
CINCINNATI FAN HP-6C22
CINCINNATI FAN HP-6E21
CINCINNATI FAN HP-6E22
CINCINNATI FAN HP-6E23
CINCINNATI FAN HP-6E24

如果您需要完整的CINCINNATI FAN的相关技术咨询，请随时致电爱泽工业，或者访问网站,我们将尽全力解决您的问题。
