AKM温度指示器AKM345-00033464

QUALITROL的 AKM 产品线供应变压器温度计、仪表和压力控制器

AKM温度指示器AKM345系列技术参数


AKM温度指示器AKM345系列介绍
AKM345 GEN3 采用与前几代相同的波纹管技术，并具有支持变压器数字化的新功能和满足所有规格要求的标准选项。新的和改进的设计使产品更加可靠和坚固，具有 IP66 入口保护和 C5 高腐蚀保护作为标准。波纹管技术可实现集成绕组温度模拟，并能够驱动多达 6 个可调开关和各种远程输出以用于监控应用。


特征
• 原创波纹管技术温度指示器，集成绕组温度模拟
• 全新 RS-485 Modbus 数字通信选项可让更多数据轻松集成到监控系统中
• 双模拟输出选项，适用于需要本地和远程监控的安装
• 多达 6 个完全独立的开关用于控制和报警电路
• 可选的可调开关差值可微调冷却操作
• 额定电流高达 15 安培的 VAC 和高达 10 安培的直流开关可用于更高的 VDC 负载（磁吹、MBO）
• 提供各种模拟输出类型 — 4-20mA、0-5VDC、Pt100
• IP66标准入口防护
• C5-符合 ISO 12944 的高标准
• 极性选项可在低至 -60°C 的温度下运行
• 轻松一体化绕组温度安装，无需外部设备
• 经过时间考验的可靠、准确的技术
• 新的铰链或可拆卸盖板，安装在支架或控制柜中时可轻松接线
• 与前几代 AKM345 相同的安装占地面积和安装选项
• 单一外壳设计无需额外的外部配件

The AKM345 GEN3 utilizes the same great bellows technology as previous generations with new features to support the digitization of transformers and standard options to meet all specification requirements. The new and improved design makes for an even more reliable and robust product with IP66 ingress protection and C5-High corrosion protection as a standard. The bellows technology allows for integrated winding temperature simulation and the ability to drive up to 6 adjustable switches and various remote outputs for monitoring applications.

Features
• The original bellows technology temperature indicator with integrated winding temperature simulation
• All new RS-485 Modbus digital communication option to allow more data to be easily integrated into monitoring systems
• Dual analog output options for installations where local and remote monitoring is required
• Up to 6 fully independent switches for control and alarming circuits
• Optional adjustable switching differential to fine tune cooling operation
• Standard switch rated for up to 15 Amps VAC and up to 10 Amp DC switches available for higher VDC loads (magnetic blow out, M.B.O.)
• Various analog output types available — 4-20mA, 0-5VDC, Pt100
• IP66 standard ingress protection
• C5-High standard as per ISO 12944
• Polar option for operation down to -60°C
• Easy all-in-one winding temperature installation, no need for external equipment
• Reliable and accurate technology proven over time
• New hinged or removable cover for easy access to wiring when mounting on a bracket or in a control cabinet
• Same installation footprint and mounting options as the previous generations AKM345
• Single enclosure design eliminates the need for additional external accessories

AKM温度指示器AKM345系列其他常用型号：
AKM AKM345-00237481
AKM AKM345-00237200
AKM AKM345-00238012
AKM AKM345-00238664
AKM AKM345-00237481
AKM AKM345-00011736
AKM AKM345-00033464

AKM TEMPERATURE INDICATOR NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于AKM温度指示器AKM345-00033464的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for AKM products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

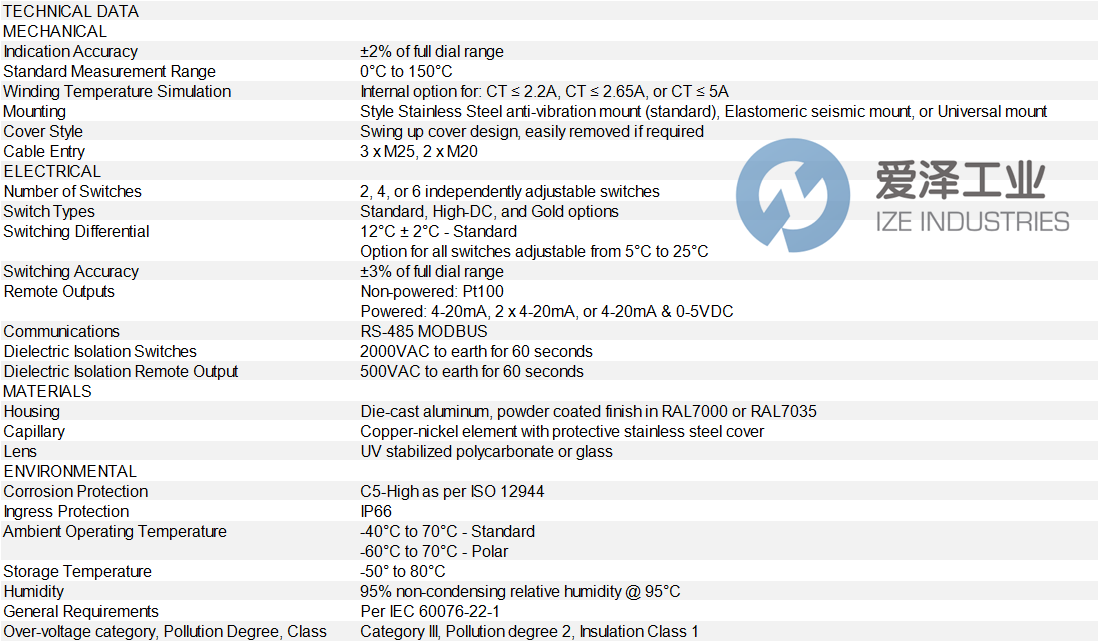

AKM温度指示器AKM345系列AKM345-00033464技术参数介绍
