爱泽工业2024年5月部分到货产品专题及库存——FEIG篇

如下为我司爱泽工业IZE_Industries本月到货FEIG相关产品，欢迎致电索取样本资料和产品信息。


FEIG读卡器模块LRM5400-A


FEIG天线调谐器MAT-S


FEIG天线ANT800/600-DA


FEIG天线ANT.U75/50-FCC


FEIG读卡器ISC.PRH101-USB


FEIG读卡器CPR40.30-USB


FEIG传感器ISC.PR101-USB


FEIG读卡器ECCO+2D-HF-R

FEIG读卡器 LR（M）5400 系列介绍及选型
13.56 MHz高性能读卡器ID LR(M)5400 提供灵敏度、稳定的读写性能、读取范围、大应答器密度和多种天线配置下的快速读取速度。

该阅读器支持符合ISO 15693、ISO 18000-3-A、ISO 18000-3M3 和 NXP I-Code 1 RFID/NFC 协议的应答器，*适合图书馆、洗衣店、赌场、物流和工业等应用。

结合FEIG的外部多路复用器、功率分配器和天线调谐器，可以轻松实现各种尺寸的安全门、传送带和天线系统等设置。

灵活的接口选项、配置选项和多种读取模式可实现在 TCP/IP 网络中的无故障集成。

The 13.56 MHz high performance reader ID LR(M)5400 provides best sensitivity, stable reading and writing performance, best read range, fast reading speed at large transponder density and multiple antenna configurations.

The reader supports transponders according to ISO 15693, ISO 18000-3-A, ISO 18000-3M3 and NXP I-Code 1 RFID/NFC protocols and is best suited for applications such as libraries, laundries, casinos, logistics and industry.

Combined with FEIG’s external multiplexer, power splitter and antenna tuner, setups such as security gates, conveyors and antenna systems of various sizes can be realized easily.

Flexible interface options, configuration options and multiple reading modes allow trouble-free integration in professional TCP/IP networks.

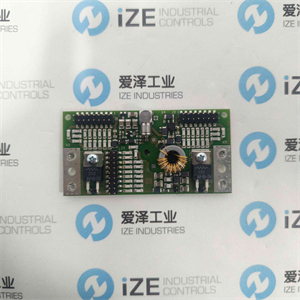

FEIG天线调谐器MAT系列介绍及选型
调谐板 ID MAT-B/-S 是一款手动可调匹配电路，用于构造定制单天线，工作频率为 13.56 MHz，输入阻抗为 50 Ω。

与天线导体（例如铝带或铜管）连接，可以轻松构建不同尺寸和形状的天线。

天线的调谐是在使用单独的可切换电容器组装天线导体之后进行的。 之后，天线将永久调整以适应其环境。

调谐板 ID MAT.S-A 能够通过高达一定功率的电子开关断开天线电路，以防止复杂天线布置中的耦合效应。

– 通用天线调谐器
– 高频长距离天线的手动调谐和重新调谐
– 可带或不带用于电子断开天线电路的开关

The tuning board ID MAT-B/-S is a manual adjustable matching circuit for construction of customized single antennas with an operating frequency of 13.56 MHz and an input impedance of 50 Ω.

In connection with an antenna conductor (e. g. aluminium band or copper pipe) antennas of different sizes and shapes can be built easily.

The tuning of the antennas takes place after assembly of the antenna conductor by using individually switchable capacitors. After that the antenna is permanently adjusted to their environment.

The tuning board ID MAT.S-A is able to disconnect the antenna circuit through a electronic switch up to a certain power to prevent coupling effects within complex antenna arrangements.

– Universal Antenna Tuner
– Manual tuning and retuning of HF Long Range Antennas
– Available with and without switch for electronic disconnection of the antenna circuit

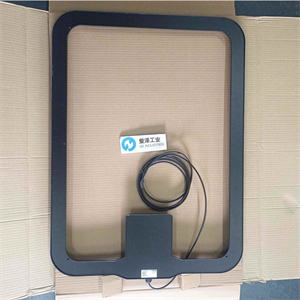

FEIG高频天线ANT800/600系列介绍
高频长距离天线 ID ANT800 / 600-DA 可与阅读器 ID LR(M)1002 和 ID LR(M)2500 结合使用。 该设备是一个带有调谐电路的单环形天线，读取范围可达 100 厘米，发射功率为 4 W。

该天线由电气天线导体、外壳和调谐电路 ID DAT（调谐器）组成，并在工厂在木底座上调谐至 50 Ω 阻抗。 在改变的环境条件下安装后，可以使用相应的命令来调谐天线。

– 发射功率高达 8 W
– 防护等级IP65
– 与多个 HF 阅读器通用
– 读取范围可达 100 厘米
– 集成动态天线调谐器 (ID DAT)，易于设置

The HF Long Range Antenna ID ANT800 / 600-DA can be used in combination with the reader ID LR(M)1002 and ID LR(M)2500. The device is a single loop antenna with tuning circuitry and facilitates read ranges of up to 100 cm with a transmitting power of 4 W.

The antenna consists of the electrical antenna conductor, housing and the tuning circuitry ID DAT (Tuner) and is factory tuned on a wood base to an impedance of 50 Ω. After installing in changed ambient conditions, the antenna can be tuned using the corresponding commands.

– Transmitting power up to 8 W
– Protection class IP65
– Versatile use with several HF readers
– Read range up to 100 cm
– Easy setup due to integrated dynamic antenna tuner (ID DAT)

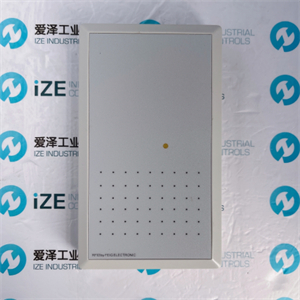

FEIG读卡器PR101系列介绍
HF 近距离读卡器 ID PR101 根据 ISO 15693 识别应答器，工作频率为 13.56 MHz。 该阅读器提供集成天线，读取范围为 18 厘米。

HF 近距离读卡器 ID PR101 适用于图书馆、零售、物流和工业等应用领域，并且易于集成到现有系统中。

凭借其防冲突功能，ID PR101 能够同时读取多个应答器。 天线输出端的可切换直流电压可为连接的天线内的 LED 供电。

– 集成天线
– 适用于各种应用的紧凑型多标签阅读器
– 防碰撞功能
– 2种不同的阅读器模式

The HF Proximity Reader ID PR101 identifies transponders according to ISO 15693 with an operating frequency of 13.56 MHz. The reader offers an integrated antenna and realizes a maximum read range of 18 cm.

The HF Proximity Reader ID PR101 is suitable to be used in fields of applications like library, retail, logistics and industry and is easy to integrate in existing systems.

With its anticollision function the ID PR101 is able to read several transponders simultaneously. A switchable DC voltage at the antenna output can supply a LED inside a connected antenna.

– Integrated antenna
– Compact Multi-tag Reader for various applications
– Anti-collision function
– 2 different reader modes

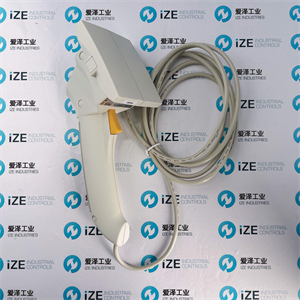

FEIG传感器RH101系列介绍
手持式阅读器 ID PRH101/102 设计用于与常见 ISO 15693 应答器进行非接触式数据交换。 它们可用于这些应用，读取范围分别高达 13 厘米* (PRH102-B)。 *多需要 20 厘米* (PRH101-USB)。

由于具有不同的接口，手持式阅读器可以轻松集成到现有系统中。 因此它们适用于零售、物流和工业领域的多种应用。

防冲突功能允许手持阅读器同时识别多达 30 个应答器。 通过天线线上的可切换电压，可以操作位于天线中的 LED。

对于移动设备上的主机应用程序编程，FEIG 提供适用于不同系统（如 Pocket PC、CE3.0、CE.NET、Windows、Linux 和 Java 系统）的 DLL。

– 可变接口（USB、蓝牙）
– 防碰撞功能
– ISO 15693 和 ISO 18000-3 的多标签阅读器
– 2 种操作模式：FEIG ISO 主机模式和扫描模式

The handheld readers ID PRH101/102 are designed for contactless data exchange with common ISO 15693 transponders. They can be used for those applications, read ranges up to 13 cm* (PRH102-B) resp. up to 20 cm* (PRH101-USB) are required.

Due to different interfaces the handheld readers can be integrated in existing systems easily. So they are suitable for several applications in retail, logistics and industry.

The anti-collision function allows the handheld readers identification of up to 30 transponders simultaneously. With a switchable voltage on the antenna line a LED located in the antenna can be operated.

For programming host applications on mobile devices FEIG offers DLLs for different systems like Pocket PC, CE3.0, CE.NET, Windows-, Linux- and Java systems.

– Variable interfaces (USB, Bluetooth)
– Anti-collision function
– Multi-tag reader for ISO 15693 and ISO 18000-3
– 2 operation modes: FEIG ISO Host Mode & Scan Mode



FEIG常用型号：
FEIG 102-USB-EU
FEIG ANT800/600-DA
FEIG CPR02.10-AD
FEIG CPR02.10-B
FEIG CPR30
FEIG CPR30 Pro SAM
FEIG CPR30+
FEIG CPR30-LCN9620 6359977
FEIG CPR30-USB
FEIG CPR40.30
FEIG CPR40.30-USB
FEIG CPR4030USB RFID
FEIG ECC0+
FEIG ECCO+2D-HF-R
FEIG FUF2-C
FEIG ISC PRHD102-OSB-EU HF/UHF
FEIG ISC.ANT.MUX.M4
FEIG ISC.ANT.U170/170-EU
FEIG ISC.ANT.U75/50-FCC 3543.000.00
FEIG ISC.ANT310/310-A
FEIG ISC.LRM2500B
FEIG ISC.LRU3500-EU
FEIG ISC.LUR1002-EU
FEIG ISC.MR102-PoE HF
FEIG ISC.MR102-USB
FEIG ISC.MRU102-POE
FEIG ISC.PR101
FEIG ISC.PR101-USB
FEIG ISC.PRH101-A/PRH102-B/PRH101-USB
FEIG ISC.PRH101-USB
FEIG ISC.PRHD102-B-EU
FEIG LRM5400
FEIG LRU3500  FEIG  RFID
FEIG LRU3500 UHF
FEIG MAT
FEIG MWD BP
FEIG PD-ME-B
FEIG PJMTSTFSAM 6633A-TSTFSAM
FEIG PR101
FEIG PR101-USB
FEIG RE02.10-AD
FEIG RS232 ID RW02.10-AD
FEIG RSC-ASGGH-TG
FEIG RW02.10-AD
FEIG TST FU3F-A
FEIG TST FU3F-CH
FEIG TST FU3F-FH
FEIG TST FU3H-FNH
FEIG TST FUE-2
FEIG TST FUF2 - CHID RW02.10-AD
FEIG TST FUS-1-B
FEIG TST FUS-1-C
FEIG TST FUS-1-CX
FEIG TST FUS-C
FEIG TST FUZ2-CX
FEIG TST LGBE-3.0-A
FEIG TST PD-ME-B
FEIG TST SVEK1
FEIG TSTFU3E-A 6109281

如果您需要完整的FEIG的相关技术咨询，请随时致电爱泽工业，或者访问网站,我们将尽全力解决您的问题。
