爱泽工业2024年5月部分到货产品专题及库存——RYUKI篇

如下为我司爱泽工业IZE_Industries本月到货RYUKI相关产品，欢迎致电索取样本资料和产品信息。


RYUKI流量计ODM-300SDR FMR32559

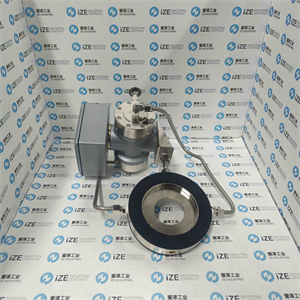

RYUKI流量计ODM-300S·TD FMR40209

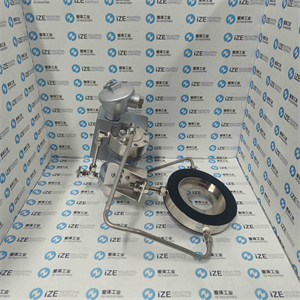

RYUKI流量计ODM-300S·TD FMR40211

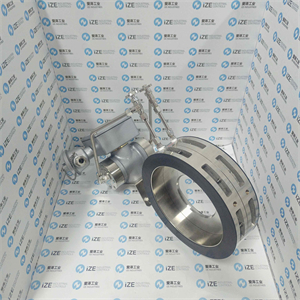

RYUKI流量计ODM-300·TD FMR40210

RYUKI流量计ODM-300系列介绍及选型
该流量计在管道中设有节流机构（孔板），通过孔口的入口和出口之间的压差检测流量的变化，并在指示器上显示瞬时流量。

特征
1. 尺寸紧凑，便于搬运和管道安装。
2. 流量指示为机械操作。 指示稳定、易于恢复
3. 指示器的受压部分采用隔膜（带布的特殊橡胶），因此在耐酸性和耐化学性方面优越，在强度和耐热性方面适合一般用途。
4、指示器的机械部分处于空气中，不易被流体腐蚀。
5、指示器内可集成带有微动开关的电接点，不仅可以指示流量，还可以传输报警信号。
6、流量指示器与差压检测器水平距离约100m时即可测量，可实现远距离指示。
7、一台探测器可安装多个指示器，可用于现场指示、远程指示等多种用途。
8、通过更换刻度板和节流机构（孔板）即可轻松改变流量范围。
9. 探测器前后必须有直管部分。
(1) 入口侧：长度为管道内径的10倍或以上。
(2) 出口侧：长度为管道内径的5倍以上。

Provided with a throttling mechanism (orifice plate) in piping, this flowmeter detects changes in the flow rate by differential pressure between the inlet and outlet of the orifice and indicates an instantaneous flow rate on its indicator.

Features
1. Being compact in size, it is easy to handle and install in piping.
2. Flow rate indication is operated mechanically. Indication is stable and easy to restoring
3. A diaphragm (special rubber with cloth) is used for the pressure-receiving portion of the indicator and so it is superior in terms of acid and chemical resistance and is suitable for general use in terms of strength and thermal resistance.
4. The mechanical part of the indicator is in the air and so it is hard to be corroded by fluid.
5. An electric contact with a microswitch can be integrated in the indicator, and so not only a flow rate indication but also an alarm signal can be transmitted.
6. Measurement is possible when the flow rate indicator is about 100 m horizontally apart from the differential pressure detector, and so remote indication can be made.
7. Multiple indicators can be installed for one detector and therefore, it can be used for indication at the site, for remote indication and for other purposes.
8. The flow rate range can be made easily changed by replacing the scale plate and throttling mechanism (orifice plate).
9. Straight piping portions must be present before and after the detector.
(1) Inlet side: Length of 10 times or more the inner diameter of piping.
(2) Outlet side: Length of 5 times or more the inner diameter of piping..



RYUKI流量计ODM-LP200L系列介绍
这是一种孔板式流量计，其结构紧凑，适用于一般工业用水、自来水等。与传统的面积式和旁通式流量计相比，由于生锈、污垢等原因造成的读数错误和故障较少。

由于这是差压式流量计，因此孔板前后均需有直管。
・入口侧（高压侧）：配管内径的10倍以上
・出口侧（低压侧）：配管内径的5倍以上

This is an orifice type flow meter that has been developed to be compact and suitable for general industrial water, tap water, etc. Compared to conventional area type and bypass type flowmeters, there are fewer reading errors and failures due to rust, dirt, etc.

Since this is a differential pressure flowmeter, a straight pipe is required before and after the orifice.
・Inlet side (high pressure side): 10 times or more the inner diameter of the pipe
・Outlet side (low pressure side): 5 times or more the inner diameter of the pipe

RYUKI流量计EM3系列介绍
这是一款电子差压流量计，将先进的技术和丰富的功能融入到紧凑的机身中。它的受压部分采用金属膜片，因此具有可承受高管路压力的结构。可以从左侧或右侧接线的 2 线流量计。它还具有防水结构，可以承受暂时的洪水。可方便地安装在接线中间，用于现场指示和远程传输。

它还可以与ODM-300指示器部分一起使用。如果将其连接到分配器，接线会更容易。另外，EM3型系列受压面积大、精度高、响应速度快。

This is an electronic differential pressure flowmeter that packs advanced technology and a wealth of functions into a compact body.It uses a metal diaphragm in the pressure receiving part, so it has a structure that can withstand high line pressure. A 2-wire flowmeter that can be wired from either the left or right side. It also has a waterproof structure that can withstand temporary flooding. It can be easily installed in the middle of wiring for on-site instructions and remote transmission.

It can also be used together with the ODM-300 indicator section. Wiring is easier if you connect it to a distributor. In addition, the EM3 type series has a large pressure receiving area, high precision, and fast response speed.

RYUKI流量计常用型号：
RYUKI ODM-300S.TD
RYUKI MGPS ODM-300ST
RYUKI ODM-300ST
RYUKI ODM-300SDR FM41774
RYUKI ODM-300SDR 425978
RYUKI ODM-300S·TD FMR00197
RYUKI ODM-300 TD FMR00198
RYUKI ODM-300-TDSFMR00208
RYUKI ODM-300SDR JIS10K200A
RYUKI ODM-300SDR FMA92806
RYUKI ODM-300SDR FMN80402
RYUKI ODM-300SDR TIS10K200A
RYUKI ODM-300DR
RYUKI ODM-300SDR FMN02740-6
RYUKI ODM-300SDR FMNO2740-6
RYUKI ODM300-S-T FM-12182
RYUKI ODM-300S-TD FMN82393
RYUKI ODM-300-TD FMN82394
RYUKI LV2005S FM50899
RYUKI ODM-300-S-DR-10K150A
RYUKI ODM-300-DR-10K150A
RYUKI ODM-300-S-ST-5K40A
RYUKI ODM-300-ST-5K40A
RYUKI ODM-300-S-ST-150A-10K-2500-BC
RYUKI ODM-300-S-DR-150A-10K-2500-BC
RYUKI ODM-300-S2-ST-150A-10K-2500-BC
RYUKI ODM-300-S2-DR-150A-10K-2500-BC
RYUKI ODM-300-S-ST-150A-10K-500-BC
RYUKI ODM-300-S-DR-150A-10K-500-BC
RYUKI ODM-300-S2-ST-150A-10K-500-BC
RYUKI ODM-300-S2-DR-150A-10K-500-BC
RYUKI LV2005S
RYUKI LV2005
RYUKI ODM-7000S2DR
RYUKI ODM-7000SDR
RYUKI ODM-7000DR
RYUKI ODM-7000S2ST
RYUKI ODM-7000SST
RYUKI ODM-7000ST

如果您需要完整的RYUKI的相关技术咨询，请随时致电爱泽工业，或者访问网站,我们将尽全力解决您的问题。
