BENDIX压缩机801732BXW

BENDIX是大型制动器生产厂。

主营业务有：

ABS /稳定

执行器

空气盘式制动器

空气处理

压缩机和调速器

液压制动器零件

基础鼓式制动器

松弛调节器

阀门

BENDIX压缩机801732技术参数

BENDIX压缩机 BA-922系列

Bendix BA-922压缩机是一款两缸往复式压缩机，1250 RPM 时的额定排量为每分钟 31.6 立方英尺。

该压缩机由水冷气缸盖、冷却板、阀板组件以及整体风冷曲轴箱和气缸体组成。 铸铝气缸盖包含所需的空气端口和水端口以及两个卸荷器活塞。 铸铝冷却板提供额外的冷却，位于气缸盖和阀板组件之间。 阀板组件由层压钎焊钢板组成，其中包含各种阀门开口和通道，用于将空气和发动机冷却剂导入和导出气缸盖。

排出阀是阀板组件的一部分。 气缸盖与冷却板和阀板一起构成完整的气缸盖组件。

铸铁曲轴箱和气缸体组件容纳活塞、连杆、曲轴和相关轴承。

虽然并非所有压缩机和充气系统都配备可选的排放管线安全阀，但建议使用该组件。 排放管路安全阀安装在气缸盖中（或靠近压缩机排放口），可在排放管路冻结或堵塞时防止压缩机过度加压。

The Bendix® BA-922® compressor is a two cylinder, reciprocating compressor with a rated displacement of 31.6 cubic feet per minute at 1250 RPM.

The compressor consists of a water-cooled cylinder head, cooling plate, valve plate assembly, and an integral air cooled crankcase and cylinder block. The cast aluminum cylinder head contains the required air and water ports as well as two unloader pistons. The cast aluminum cooling plate provides added cooling and is located between the cylinder head and valve plate assemblies. The valve plate assembly consists of laminated, brazed steel plates which incorporate various valve openings and channels for conducting air and engine coolant into and out of the cylinder head.

The discharge valves are part of the valve plate assembly. The cylinder head, with the cooling and valve plates, comprise a complete cylinder head assembly.

The cast iron crankcase and cylinder block assembly houses the pistons, connecting rods, crankshaft and related bearings.

While not all compressors and charging systems are equipped with an optional discharge line safety valve, this component is recommended. The discharge line safety valve is installed in the cylinder head – or close to the compressor discharge port – and protects against over pressurizing the compressor in the event of a discharge line freeze up or blockage.

BENDIX压缩机 BA-922系列其他常用型号：

BENDIX 5012895

BENDIX 5013058

BENDIX 5013059

BENDIX 5013695

BENDIX 5016389

BENDIX 801535

BENDIX 801594

BENDIX 801595

BENDIX 801732

BENDIX 802158

BENDIX NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于BENDIX压缩机801732BXW的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for BENDIX products, please feel free to dial 0086-21-3100 6702/ send request email to  / browse our website:www.ize-industries.com.

​

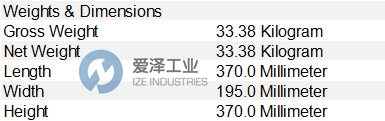

BENDIX压缩机801732BXW技术参数介绍
