JESSBERGER马达JP-180

JESSBERGER 是一家家族企业，总部位于慕尼黑附近的奥托布伦，是电动和气动滚筒和容器泵、立式和卧式偏心螺杆泵、高粘度介质计量泵、手动泵以及流量计、喷嘴等全系列配件的制造商。

JESSBERGER马达JP-180规格

JESSBERGER马达JP-180产品介绍

ELECTRIC UNIVERSAL MOTORS JP-180

230 Volt, 50/60 Hz, 640 Watt, IP 24, alternatively 115 Volt, 60 Hzz

The drive JP-180 is a compactly built, not explosion-proof, internally ventilated universal motor that is our top seller for aggressive media in the chemical and the galvanic industry

beside JP-280.

This handy, very robust and powerful motor can be used to drive the suction tubes of drum pumps. In this combination it is suitable for many thin liquid and slightly viscous, neutral, aggressive and non-flammable liquids (max. 600 mPas). Its sophisticated, technically clear structure ensures an efficient and safe use when transferring a wide range of media.

The drum pump motor is characterized not only by its light weight (3,6 kg) but also by its elegant design and ease of use. The non-stationary and stationary usable drive is particularly suitable for intermittent operation. As internally ventilated motor it has an optimal air cooling, low noise and ensures high operational safety and long lifetime.

The motor housing made of polypropylene ensures a high chemical resistance when aggressive vapours of acids and alkalies are present.

The standard in the on/off switch integrated low voltage release is intended to prevent an uncontrolled start of the drum pump motor after a power failure or voltage drop and thus guarantees maximum safety.

The flow rate of the media to be pumped can be regulated by an optionally available speed control that is integrated in the motor handle. Therefore the flow rate can be adjusted to the needs of the user.

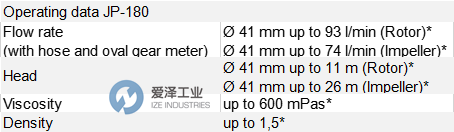

The maximum density of the media is for the JP-180 universal motor 1.5, the maximum viscosity 600 mPas.

通用电动马达 JP-180

230 伏，50/60 赫兹，640 瓦，IP 24，或者 115 伏，60 赫兹

驱动器 JP-180 是一款结构紧凑、非防爆、内部通风通用电机，是我们针对化学和电镀行业的腐蚀性介质的产品

JP-280旁边。

这种方便、非常坚固且功能强大的电机可用于驱动鼓泵的吸管。 在这种组合中，它适用于许多稀液体和微粘性、中性、腐蚀性和不易燃液体（*大 600 mPas）。 其复杂、技术清晰的结构确保在传输各种媒体时高效、安全地使用。

滚筒泵电机的特点不仅在于重量轻（3.6 kg），而且还在于其优雅的设计和易用性。非固定和固定可用驱动器特别适合间歇运行。作为内部通风电机，它具有*佳的空气冷却、低噪音并确保操作安全性和长使用寿命。

由聚丙烯制成的电机外壳确保在存在酸性和碱性腐蚀性蒸汽时具有高耐化学性。

标准开/关开关集成低压释放旨在防止在电源故障或电压下降后滚筒泵电机不受控制地启动，从而保证安全性。

要泵送的介质的流速可以通过集成在电机手柄中的可选速度控制器进行调节。因此，可以根据用户的需求调整流量。

对于 JP-180 通用电机，介质的*大密度为 1.5，*大粘度为 600 mPas。

JESSBERGER马达其他常见型号：

JESSBERGER JP-180

JESSBERGER JP-120/-140

JESSBERGER JP-160

JESSBERGER JP-164

JESSBERGER JP-280

JESSBERGER JP-360

JESSBERGER JP-380

JESSBERGER motor NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于JESSBERGER马达JP-180的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for JESSBERGER products, please feel free to dial 0086-21-3100 6702/ send request email to  / browse our website:www.ize-industries.com.

JESSBERGER马达JP-180介绍
