GRAFF温度计LV-GF-7132.1.3-L.370.S.82.KK.450℃

GRAFF是温度，测量和控制设备的制造商之一，解决温度，塑料，制药，食品，原料精炼，金属加工，熔炉建设，废物管理，汽车工业，工厂工程和机械工程，玻璃和纺织工业领域的日常高度复杂任务。

GRAFF主营产品应用：

GRAFF热电偶

GRAFF电阻温度计

GRAFF传感器

GRAFF加热器

GRAFF绝缘套管

GRAFF温度控制器

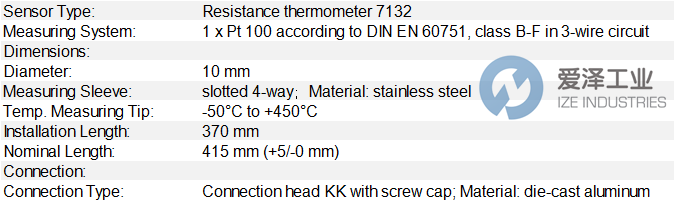

GRAFF温度计LV-GF-7132.1.3-L.370.S.82.KK.450℃技术参数

GRAFF温度计7132系列介绍

GRAFF GF-7132 系列温度传感器特别适用于塑料技术、制药行业、发电厂技术、加热和冷却技术、化工厂和模具制造领域的工具、加热块、热块等的温度测量。由于结合了高品质的材料，该系列产品没有限制，带穿孔保护管的版本还具有可以非常快速地记录气流温度的优势。与所有 GRAFF传感器一样，该系列也专门采用热电缆而不是补偿电缆制造。所有传感器组件主要由高品质不锈钢 1.4571 制成。该传感器标准配置为焊接或绝缘版本。由于内部测量系统封闭，该传感器也可以在潮湿环境中使用。合适的夹紧配件已包含在交付范围内。不同类型的电缆完善了该产品。

GRAFF temperature sensors of the GF-7132 series are particularly suitable for use in temperature measurement on tools, heating blocks, thermoblocks, etc. from the fields of plastics technology, the pharmaceutical industry, power plant technology, heating and cooling technology, chemical plants and mold making. Due to the combination of high-quality

materials, there are no limits to this series, and the version with a perforated protective tube also offers the advantage that air flow temperatures can be recorded very quickly. As with all GRAFF sensors, this series is also manufactured exclusively with a thermal cable instead of a compensating cable. All sensor components are mainly made of high-quality stainless steel 1.4571. This sensor is available as standard in a welded or insulated version. Due to the closed internal measuring system, this sensor can also be used in a damp environment. A suitable clamp fitting is already included in the scope of delivery. Different cable types complete this product.

GRAFF温度计GF-7132系列其他常用型号：

GRAFF GF-7132.2.KL.A.3-L.EL

GRAFF GF-7132.2.KL.A.3-L.EL.1.3-L.250.S.82.KK

GRAFF GF-7140.1.Kl.A.4-L.8.80.-.KK

GRAFF GF-7132.2.4-L.500.S.82.BK

GRAFF LV-GF-7132.1.3-L.370.S.82.KK.450℃

GRAFF TEMPERATURE SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于GRAFF温度计LV-GF-7132.1.3-L.370.S.82.KK.450℃的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for GRAFF products, please feel free to dial 0086-21-3100 6702/ send request email to  / browse our website:www.ize-industries.com.

GRAFF温度计LV-GF-7132.1.3-L.370.S.82.KK.450℃技术参数
