FLOMEC流量计EGM020A001-811

FLOMEC是澳大利亚大平原工业公司前身为Trimec Industries Pty Ltd制造的品牌。

FLOMEC流量计EGM020A001-811技术参数

FLOMEC流量计EGM系列介绍

EGM-SERIES ELECTRONIC FLOWMETER

All EGM-Series pulse meters are designed for volumetric flow measurement of clean liquids across a broad range of applications in the automotive, aviation, mining, power, chemical, pharmaceutical, and petroleum industries. The EGM-Series will produce accurate and reliable measurements of almost all clean liquids, including but not limited to; alcohols, fuels and oils, water based salts and solutions, corrosion inhibitors, brake and transmission fluids, greases, emulsifiers, adhesives, insecticides, and some aggressive chemicals.

FEATURES / BENEFITS

• Oval Gear technology for high accuracy and repeatability

• Direct volumetric measurement of flow

• Accuracy of reading is not affected by temperature and viscosity changes

• Measures high and low viscosity liquids

• Only two moving parts

• "Fuel Consumption" option can tolerate flow pulsations and has a built-in temperature sensor to correct for the fuel density changes

GENERAL SPECIFICATIONS

• Flow rates: 0.26 GPH - 21.1 GPM (1 L/hr - 80 L/min)

• Sizes: 1/8" - 3/4" (4 mm - 20 mm)

• Temperature range: 5°F - +176°F (-15°C - +80°C)

CALIBRATION

EGM-Series flowmeters are available with factory calibrations or can be calibrated in the field as an economical option.

FUEL CONSUMPTION

EGM-Series flowmeters with the Fuel Consumption option (Integral Option 2) are equipped with an integral PT100 temperature sensor which allows for accurate measurement of fuel consumption on combustion engines by correcting for temperature differences from the inlet to outlet of the engine. It also includes the Pulsating Flow electronics that eliminate the effect of pulsations in the flow.

EGM系列电子流量计

所有 EGM 系列脉冲流量计专为清洁液体的体积流量测量而设计，广泛应用于汽车、航空、采矿、电力、化工、制药和石油行业。 EGM 系列将对几乎所有清洁液体进行准确可靠的测量，包括但不限于： 酒精、燃料和油、水基盐和溶液、腐蚀抑制剂、制动液和传动液、油脂、乳化剂、粘合剂、杀虫剂和一些腐蚀性化学品。

特点与优势

• 高精度和可重复性的椭圆齿轮技术

• 流量的直接体积测量

• 读数的准确性不受温度和粘度变化的影响

• 测量高粘度和低粘度液体

• 只有两个移动部件

• “燃料消耗”选项可以承受流量脉动，并具有内置温度传感器以校正燃料密度变化

一般规格

• 流速：0.26 GPH - 21.1 GPM（1 L/hr - 80 L/min）

• 尺寸：1/8" - 3/4" (4 mm - 20 mm)

• 温度范围：5°F - +176°F (-15°C - +80°C)

校准

EGM 系列流量计可提供工厂校准，也可以作为经济的选择在现场进行校准。

燃油消耗

带有燃油消耗选项（集成选项 2）的 EGM 系列流量计配备了一个集成的 PT100 温度传感器，可以通过校正发动机入口到出口的温差来准确测量内燃机的燃油消耗。 它还包括脉动流电子设备，可消除流量脉动的影响。

FLOMEC流量计EGM系列其他常用型号：

FLOMEC EGM015A511-811

FLOMEC EGM004

FLOMEC EGM006

FLOMEC EGM008

FLOMEC EGM015

FLOMEC EGM020

FLOMEC EGM020A001-811

FLOMEC flow meter NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于FLOMEC流量计EGM020A001-811的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for FLOMEC products, please feel free to dial 0086-21-3100 6702/ send request email to  / browse our website:www.ize-industries.com.

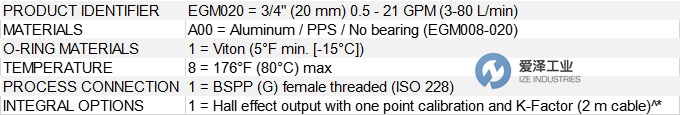

FLOMEC流量计EGM020A001-811技术参数
