BERG夹具SHR75/376.17450.000.3

BERG产品有：刀具装夹，夹盘，成型技术，工件装夹。

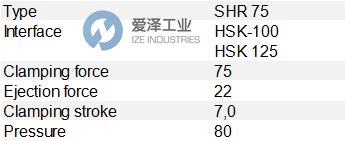

BERG夹具SHR75系列技术参数

BERG夹具SHR系列介绍

双作用气缸直接通向坡度非常小的夹紧锥体。夹紧期间，夹紧锥体将位于其上的压力元件压入同样锥形的壳体孔中。这会使楔形件沿轴向移动。当楔形件位于主拉杆的窗口中时，它们也会沿轴向移动（夹紧行程）。锥角和表面特性旨在确保绝对可靠的自我限制。

除了液压驱动外，该系统还可以通过直接连接到拉杆/推杆进行干驱动。

由于各自的表面特性，所有系统都完全免维护！

A double-acting cylinder leads directly into a clamping cone which has a very low gradient. During clamping this clamping cone presses the pressure elements resting on it into the similarly tapered housing hole. This displaces the wedge piece in the axial direction. As the wedge pieces rest in windows of the main draw bar, they are also axially displaced (clamping stroke). The cone angle and surface properties are designed to guarantee absolutely reliable self-limitation.

In addition to the hydraulic actuation the system can also be driven dry by direct connection to a draw/push bar.

All systems are completely maintenance-free due to their respective surface properties!

BERG夹具SHR系列其他常用型号：

BERG SHR-SSKF40

BERG SHR-SSKF50

BERG SHR-SSKF60

BERG SHR 48

BERG SHR 60

BERG SHR 75

BERG SHR 95

BERG SHR-C6

BERG SHR-C8

BERG SHR75/376.17450.000.3

BERG CLAMPING UNIT NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于BERG夹具SHR75/376.17450.000.3的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for BERG products, please feel free to dial 0086-21-3100 6702/ send request email to  / browse our website:www.ize-industries.com.

BERG夹具SHR系列SHR75/376.17450.000.3技术参数及介绍
