SUN阀DTDF-MHN224

​SUN公司于1970年成立于美国，是高性能液压螺纹插装阀块以及集成阀块的设计和制造公司，产品集成在流体动力系统中，用以实现力，速度和运动的控制。产品广泛应用于移动，工业机械和设备等领域。

SUN阀DTDF-MHN224技术参数

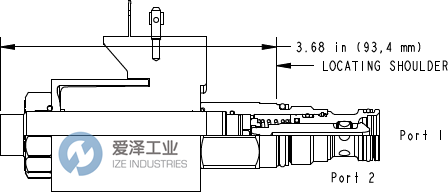

SUN阀DTDF-MHN224产品介绍

这款电磁操作的 2 通 2 位阀芯是一种直动式、阀瓣式方向阀。该阀有常开或常闭两种配置，设计用于 740 和 747 系列线圈。

由于采用阀瓣式结构，该阀的泄漏极低。

• 电磁管组件的疲劳额定值为 5000 psi (350 bar)。

• 该阀是直接驱动的，无需低液压即可运行。

• 使用常闭选项时，该阀适用于负载保持应用。如果发生电源故障，阀门将弹簧关闭。

• 配置有 EPDM 密封件的阀芯用于磷酸酯流体系统。接触石油基流体、油脂和润滑剂会损坏密封件。

• 该阀的所有配置都包括锌镍镀层，作为 1000 小时盐雾防护的标准配置。

• 线圈连接器选项提供高达 IP69K 的防护等级。

• 该阀芯同时使用 740 系列高功率线圈和 747 系列危险位置线圈。

• 该阀芯具有手动超控选项。

• 阀门的泄漏率极低；小于 10 滴/分钟 @ 5000 psi（0.7 cc/分钟 @ 350 bar）。

• 在配备 D 或 L 控制的型号上，手动超控中的制动机构用于临时启动。D、L 和 T 手动控制组件的机械寿命约为 7,000 次循环。

• 该阀采用湿式电枢设计。这意味着工作流体围绕电枢并暴露在线圈产生的热量中。如果线圈长时间通电，这可能是一个因素。某些流体，特别是水/乙二醇混合物，在这些温度下会随着时间的推移而分解，并形成会影响滤芯功能的清漆。

• 提供各种线圈端接和电压选项，带或不带浪涌保护。

• 螺线管独特的磁性设计可实现高效螺线管，每瓦特消耗产生高阀芯驱动力，从而实现可靠的阀门换向。

• 线圈可以以任意方向安装在管上。

• 采用 Sun 浮动式结构，更大限度地减少由于安装扭矩过大和/或腔体/滤芯加工变化而导致内部零件卡住的可能性。

This solenoid-operated 2-way, 2-position cartridge is a direct-acting, poppet-style directional valve. The valve is available in either a normally open or normally closed configuration and is designed to be used with 740 and 747 Series coils.

Due to the poppet style construction, this valve has extremely low leakage.

• The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.

• This valve is direct actuated and requires no minimum hydraulic pressure for operation.

• This valve is suitable for load holding applications when using the Normally Closed option. In the event of power failure, the valve will spring closed.

• Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.

• All configurations of this valve include zinc-nickel plating as standard for 1000-hour salt fog protection.

• Coil connector options offer ratings up to IP69K.

• This cartridge utilizes both 740 Series high-power and 747 Series hazardous location coils.

• This cartridge has an option for manual override.

• Valves exhibit extremely low leakage rates; less than 10 drops/min. @ 5000 psi (0,7 cc/min @ 350 bar).

• On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assemblies have a mechanical life expectancy of approximately 7,000 cycles.

• This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.

• A wide variety of coil termination and voltage options are available, with and without surge protection.

• The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.

• Coils can be mounted on the tube in either direction.

• Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
