SUNGHWA气体检测接收器SH-3500

SUNGHWA利用GAS DETECTOR源技术建立基于IT的气体监测系统。

SUNGHW在不断挑战和技术发展的过程中，基于足够的现场经验和理论，继续从事研发和工程。

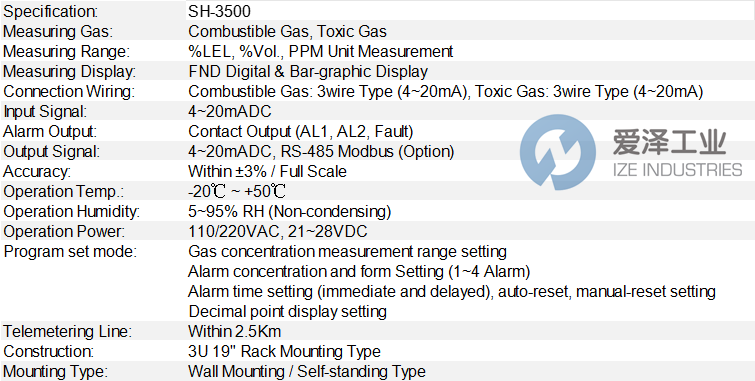

SUNGHWA气体检测接收器SH-3500技术参数

SUNGHWA气体检测接收器SH-3500产品介绍

使用

• 气体接收面板是一种气体监测系统，接收现场安装的气体探测器的输出信号，连续测量可燃气体、有毒气体和氧气浓度，并在出现危险时发出警报。

特点

• 它是持续监控难以从中央控制室管理的多个远程站点的产品，因为它可以生成警报或输出继电器。

• 气体泄漏接收器采用先进的微处理器电路，使用和操作简单、精确。此外，它由国际标准的3U 19英寸机架式组成，方便额外的扩展和维护。

• 提供4~20mADC、第2~4级报警输出、故障输出、RS-485通讯等多种输出，可与外部设备配合使用。

易于使用/各种警报

• FND 显示设备

• 通过数字和条形图显示测量值

• 实时气体浓度显示

• 用户测量范围

• 可以更改和修正设定值

• 警报灯和蜂鸣器报警

• 报警继电器配置可以更改

• 2级报警和设备异常报警

• 报警保持和释放功能

• 视觉、听觉警报

多种配置/防爆结构

• 4~20mA信号输入

• 结合了交流和直流电源

• 每个模块的报警继电器输出

• 标准4~20mA和RS-485输出

• 可连接多个多通道模块

• 独立通道显示装置

• 显示气体浓度、测量范围、报警状态等。

Purpose

• The gas receiver is a gas monitoring system that receives output signals from gas detectors installed on site, continuously measures combustible gas, toxic gas, oxygen concentration, etc., and issues an alarm when there is danger.

Features

• It is an ideal product for continuously monitoring multiple remote sites that are difficult to manage from the central control room, as it can issue alarms or output relays.

• The gas leak receiver is easy to use and operate, and is precise, using an advanced microprocessor circuit. It is also configured as a 3U 19" Rack Type of international standards, making additional expansion and maintenance easy.

• It provides various outputs such as 4~20mADC, 2-stage to 4-stage alarm output, fault output, and RS-485 communication, so that it can be used in conjunction with external devices.

Convenient to use / Various alarms

• FND display device

• Measurement value display by digital and bar graph

• Real-time gas concentration display

• Measurement range by user

• Setting value change and correction possible

• Alarm lamp and buzzer alarm

• Alarm relay configuration changeable

• 2-stage alarm and device abnormality alarm

• Alarm maintenance and release function

• Visual, Audible Alarm

Various configurations / explosion-proof structure

• 4~20mA signal input

• AC and DC power compatible

• Alarm relay output for each module

• Standard 4~20mA and RS-485 output

• Multiple multi-channel modules can be connected

• Independent channel display device

• Display of gas concentration, measurement range, alarm status, etc.

SUNGHWA气体检测接收器其他常用型号：

SUNGHWA WI-2500

SUNGHWA WI-2700

SUNGHWA SH-3500

SUNGHWA SH-FCS-550

SUNGHWA GMS

SUNGHWA GAS RECEIVER NEW + ORIGINAL+ ONE YEAR WARRANTY
