FLAKTWOODS风机GXHB-5-035-1-2-1-1

FLAKTWOODS专注于设计和制造各种空气气候和空气流动解决方案。

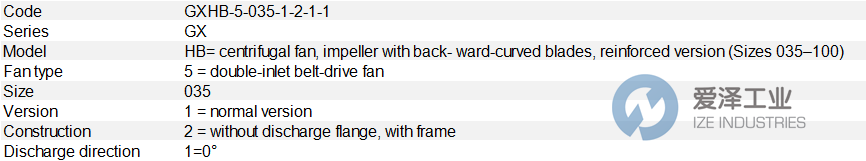

FLAKTWOODS风机GXHB-5-035-1-2-1-1技术参数

FLAKTWOODS风机GXHB系列介绍

双进风离心风机，皮带传动。 风机外壳采用森吉米尔镀锌钢板制成，采用匹兹堡折叠法连接，尺寸为100，由五段组成，配有法兰。 钢制叶轮带有向后弯曲的叶片，叶片连续焊接到护罩上。 叶轮经过脱脂、铁磷化处理并涂有 60 毫米环氧粉末涂料。 根据 ISO 1940 - 1973，叶轮的动态平衡精度为 G 2.5。风机截止阀专为实现更佳空气动力学特性而设计。

钢轴两端带有键槽，设计临界转速比风扇更高转速高20%。 叶轮通过键固定在轴上。

尺寸为 035 至 050 的 GXHB 风机具有两侧密封的永久润滑单列深沟球轴承，通过锥形安装套筒固定到轴上。 轴承由三臂或四臂星轮支撑。 尺寸为 056 至 100 的 GXHB 风机配有带自调心滚子轴承的立式轴承座，并配有油嘴。 滚子轴承由焊接支架支撑。 风机性能根据 AMCA 210-85 测量，声音数据根据 AMCA 300-85 测量。

Double inlet centrifugal fan for belt drive. Fan casing is made of Sendzimir galvanized sheet steel and jointed by Pittsburg folding method, in size 100 consisting of five sections equipped with flanges. Steel impeller with backward curved blades, blades continuously welded to the shroud. Impeller is degreased, iron phosphatized and painted with epoxy-powder paint 60 mm. Impeller is dynamically balanced to an accuracy of G 2.5 according to ISO 1940 - 1973. Fan cut-off is specially designed for optimal aerodynamical properties.

Steel shaft with keyways at both ends and designed for a critical speed which is 20% higher than the maximum speed of the fan. Impeller secured to the shaft by means of a key.

GXHB-fans in sizes 035 to 050 have permanently lubricated single-row deep-groove ball bearings sealed at both sides, secured to the shaft by means of a taper mounting sleeve. The bearings are supported by three or four-arm spider. GXHB-fans in sizes 056 to 100 have plummer blocks with self-aligning roller bearings equipped with grease nipples. The roller bearings are supported by a welded bracket. Fan performance is measured according to AMCA 210-85 and sound data according to AMCA 300-85.

FLAKTWOODS风机GXHB系列选型



FLAKTWOODS风机GXHB系列其他常用型号：

FLAKTWOODS GXHB-5-045-1-1-1-1

FLAKTWOODS GXHB-5-100-1-3-3-1

FLAKTWOODS GXHB-5-025-1-0-1

FLAKTWOODS GXHB-5-035-1-2-1-1

FLAKTWOODS GXHB-5-050-1-2-1-1

FLAKTWOODS GXHB-5-040-1-1-1-1

FLAKTWOODS GXHB-5-035-8-0-1-1X

FLAKTWOODS GXHB-5-025-1-2-1-1

FLAKTWOODS FANS NEW + ORIGINAL+ ONE YEAR WARRANTY
