BERARMA叶片泵01-PHP3-100-FHRMA-PCS002

自1963年以来，BERARMA一直专注于变量叶片泵的设计和制造。

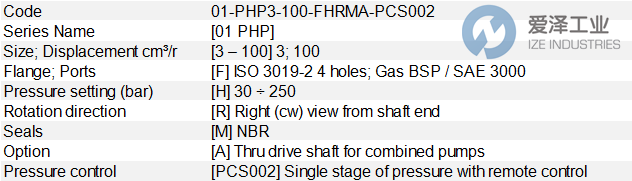

BERARMA叶片泵01-PHP3-100-FHRMA-PCS002技术参数

BERARMA叶片泵PHP系列介绍

PHP 泵是高压可变排量叶片泵，配备液压调节装置，允许用户根据电路要求即时调整流量。可变排量叶片泵是容积式泵，因此它们提供的*大流量相当于其转速下的排量。工作压力是由系统内流体遇到的压力负荷引起的。当出口压力（在系统上）等于泵设定压力时，流量将调整为系统所需的值。当达到此值时，泵将流量降低至零，使压力几乎保持恒定。在零流量条件下，泵仅输送油以补偿任何可能的泄漏和引导。

PHP pumps are high pressure variable displacement vane pumps equipped with hydraulic pressure regulating device that allow user to instantly adjust the flow rate accordingly to circuit requirements. Variable displacement vane pumps are volumetric type so they deliver a maximum flow rate equivalent to its displacement for their speed of rotation. Operating pressure is due to pressure loads encountered by the fluid within the system. When the outlet pressure (on the system) equals the pump setting pressure, the flow rate is adjusted to the values required by the system. When this value is achieved, pump reduces its flow rate to zero, keeping the pressure almost constant. In zero flow conditions, pump delivers oil only to compensate any possible drain and piloting.

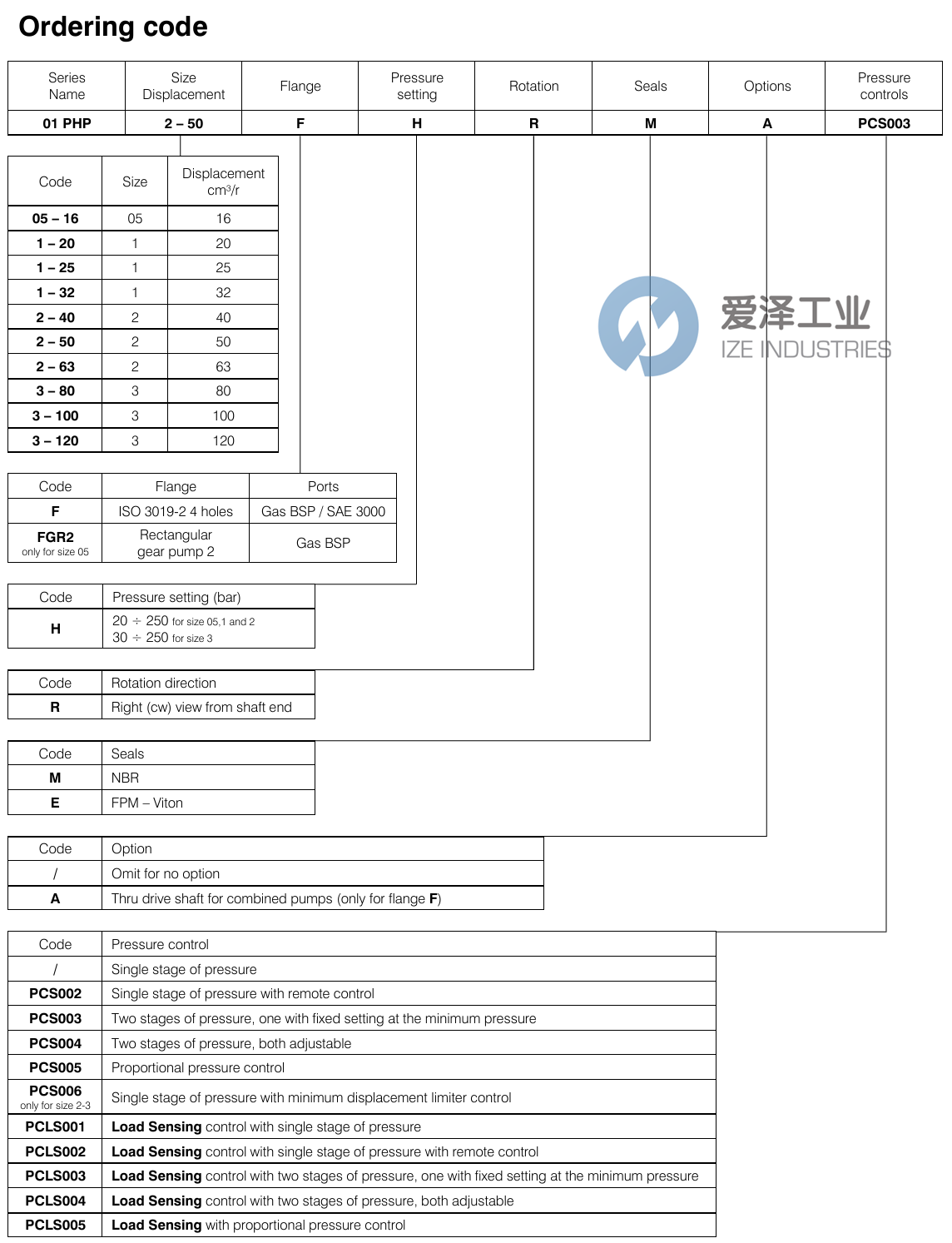

BERARMA叶片泵PHP系列选型

BERARMA叶片泵PHP系列其他常用型号：

BERARMA 01-PHP 05-16 FGR2 H R M

BERARMA 01-PHP 05-16 FGR2 H R M PCLS001

BERARMA 01-PHP 05-16 FGR2 H R M PCLS002

BERARMA 01-PHP 05-16 FGR2 H R M PCLS003

BERARMA 01-PHP 05-16 FGR2 H R M PCLS004

BERARMA 01-PHP 05-16 FGR2 H R M PCLS005

BERARMA 01-PHP 05-16 FGR2 H R M PCS002

BERARMA 01-PHP 05-16 FGR2 H R M PCS003

BERARMA 01-PHP 05-16 FGR2 H R M PCS004

BERARMA 01-PHP 05-16 FGR2 H R M PCS005

BERARMA 01-PHP 1-25 FHRM PCS003

BERARMA 01-PHP 3-100 FHRM PCLS004

BERARMA 01-PHP 3-100 FHRMA PCLS003

BERARMA 01-PHP 3-100 FHRMA PCS003

BERARMA 01-PHP 3-120 FHRM PCS003

BERARMA 01-PHP3-100-FHRMA-PCS002

BERARMA PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于BERARMA叶片泵01-PHP3-100-FHRMA-PCS002的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for BERARMA products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

BERARMA叶片泵PHP系列01-PHP3-100-FHRMA-PCS002技术参数及选型
