- CONTROL TECHNIQUES伺服电机XVM-8022-TONS-0000
详细信息
品牌:CONTROL TECHNIQUES 加工定制:否 型号:XVM-8022-TONS-0000 CONTROL TECHNIQUES已加入NIDEC集团,CONTROL TECHNIQUES以其 40 多年来驱动技术领域经验,为客户提供高性能,高可靠性的能效型产品。

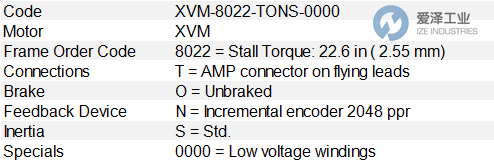

CONTROL TECHNIQUES伺服电机XVM-8022-TONS-0000技术参数
CONTROL TECHNIQUES伺服电机XV系列介绍
XV 电机是一款高性能、低惯性和高扭矩的无刷交流伺服电机,采用紧凑的经济型封装,是大批量应用不错的选择。
XV 电机通过 UL 认证、CE 批准并符合 RoHS 标准,可提供低成本解决方案,同时具备高价伺服产品的特点。
XV 电机适用于更高的吞吐量和更小的机器,有 4 种框架尺寸可供选择:40、60、80 和 130 毫米,速度范围为 2000 至 5000 rpm。连续扭矩要求高达 101 lb-in (11.4 Nm) 的应用是 XV 电机的完美搭配。
40、60 和 80 毫米的 XV 电机配有 AMP (Tyco® Mate-n-Lock™) 连接器,带有 1 英尺的飞线。 (为了增加应力消除,这些连接器可以通过面板或支架上的孔卡入到位。)
特点
• 扭矩范围:0.95 至 101 lb-in(0.1 至 11.4 Nm)
• 转速等级高达 5000 rpm
• 四种框架尺寸:40、60、80 和 130 mm
• UL 认证、CE 批准和 RoHS
• 环境工作温度:32 至 122 ˚F(0 至 40 ˚C)
The XV Motor is a high performance, low-inertia and high-torque brushless AC servo motor in a compact economical package – ideal for high-volume applications.
UL recognized, CE approved and RoHS compliant, XV Motors offer low-cost solutions with the features of a premium-priced servo offering.
Intended for higher throughputs and smaller machines, XV Motors are available in 4 frame sizes: 40, 60, 80 and 130 mm with speeds ranging from 2000 to 5000 rpm. Applications with continuous torque requirements up to 101 lb-in (11.4 Nm) are the perfect match for XV Motors.
XV Motors with 40, 60 and 80 mm are fitted with AMP (Tyco® Mate-n-Lock™) connectors on 1-ft flying leads. (For added strain relief, these connectors can be snapped into place through holes in panels or brackets.)
Features
• Torque range: 0.95 to 101 lb-in (0.1 to 11.4 Nm)
• Speed rating to 5000 rpm
• Four frame sizes: 40, 60, 80 and 130 mm
• UL recognized, CE approved and RoHS
• Ambient operating temperature: 32 to 122 ˚F (0 to 40 ˚C)
CONTROL TECHNIQUES伺服电机XV系列其他常用型号:
CONTROL TECHNIQUES XVM-401-TONS-0000
CONTROL TECHNIQUES XVM-402-TONS-0000
CONTROL TECHNIQUES XVM-403-TONS-0000
CONTROL TECHNIQUES XVM-604-TONS-0000
CONTROL TECHNIQUES XVM-606-TONS-0000
CONTROL TECHNIQUES XVM-6011-TONS-0000
CONTROL TECHNIQUES XVM-8017-TONS-0000
CONTROL TECHNIQUES XVM-8022-TONS-0000
CONTROL TECHNIQUES XVM-8023-TONS-0000
CONTROL TECHNIQUES XVM-8028-TONS-0000
CONTROL TECHNIQUES XVM-13046-CONS-0000
CONTROL TECHNIQUES XVM-13051-CONS-0000
CONTROL TECHNIQUES XVM-13068-CONS-0000
CONTROL TECHNIQUES XVM-13089-CONS-0000
CONTROL TECHNIQUES XVM-130101-CONS-0000
CONTROL TECHNIQUES MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于CONTROL TECHNIQUES伺服电机XVM-8022-TONS-0000的疑问,请随时与我们沟通( )。我们将尽全力解决您的问题。
If you have any question for CONTROL TECHNIQUES products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

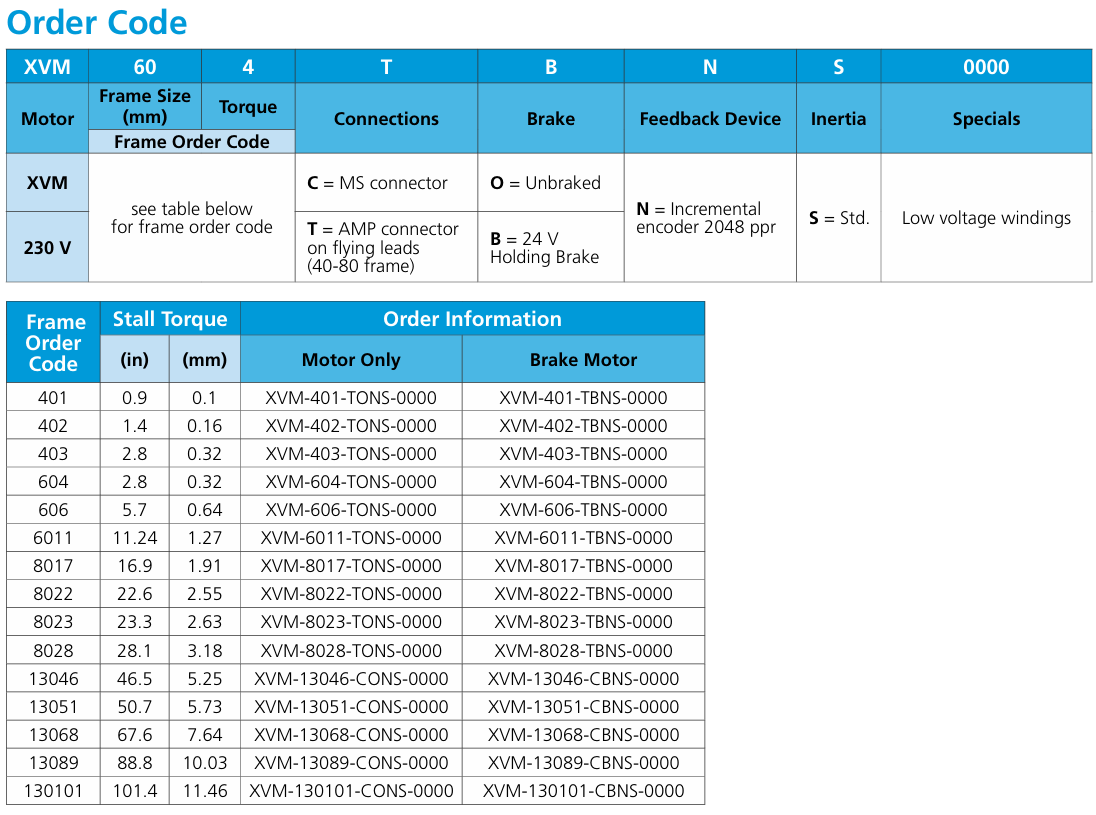

CONTROL TECHNIQUES伺服电机XV系列XVM-8022-TONS-0000技术参数及选型
-
