- RESIDEO减压阀D06F-2A
详细信息
品牌:RESIDEO 型号:D06F-2A 加工定制:否 连接形式:/ 材质:/ 公称通径:/ mm RESIDEO为HONEYWELL旗下品牌,主要产品有温控器,加湿器,除湿器等等。
RESIDEO减压阀D06F-2A产品介绍
根据 EN 806-2,这种类型的减压阀可保护家用供水设备免受供水压力过大的影响。它们还可用于其规格范围内的工业或商业应用。通过安装减压阀,可避免增压损坏并减少用水量。
即使入口压力波动很大,设定压力也会保持恒定。降低工作压力并将其保持在恒定水平可更大限度地降低安装中的流动噪音。
• 入口压力平衡 - 入口压力波动不会影响出口压力
• *大尺寸 1 1/4 英寸,经 LGA 批准,噪音低,第 1 组无限制
• 阀芯采用优质合成材料,可完全更换
• 也可不带配件
• 符合 BSEN 1567
• 所有材料均符合 UBA 标准
• 所有材料均经 ACS 批准
According EN 806-2 pressure reducing valves of this type protect household water installations against excessive pressure from the supply. They can also be used for industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced.
The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.
• Inlet pressure balancing - no influence on outlet pressure by fluctuating inlet pressure
• Up to size 1 1/4 in approved by LGA for low noise, Group 1 without limitations
• The valve insert is of high quality synthetic material and can be fully exchanged
• Also available without fittings
• Conforms to BSEN 1567
• All materials are UBA conform
• All materials are ACS approved
RESIDEO减压阀D06F系列其他常用型号:
RESIDEO D06F-2A
RESIDEO D06F-1/2B
RESIDEO D06F-11/4BGB
RESIDEO D06F-11/2BGB
RESIDEO D06F-11/4C
RESIDEO D06F-2BGB
RESIDEO D06F-1/2ZPI
RESIDEO D06F-1C
RESIDEO D06F-2C
RESIDEO D06F-1/2BGB
RESIDEO D06F-11/4A
RESIDEO D06F-3/4ZG
RESIDEO D06F-3/4AM
RESIDEO D06F-11/4E
RESIDEO PRESSURE REDUCING VALVES NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于RESIDEO减压阀D06F-2A的疑问,请随时与我们沟通( )。我们将尽全力解决您的问题。
If you have any question for RESIDEO products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

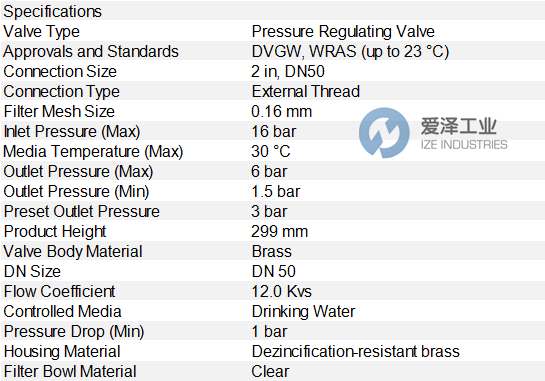

RESIDEO减压阀D06F-2A技术参数及介绍
-
