KRACHT齿轮泵KP1/11F1LBX002KL2/179-ATEX

KRACHT是一家中型工程公司，拥有约 450 名员工。KRACHT的核心竞争力是开发、制造和销售流量计、流体测量、阀门、液压驱动和定制系统解决方案领域的高质量技术。

KRACHT齿轮泵KP1/11F1LBX002KL2/179-ATEX技术参数

KRACHT齿轮泵KP1系列介绍

KRACHT 外啮合齿轮泵 KP 1 系列 2 因其结构（设计原理）和所用材料而非常适合在*极端的工作条件下使用。重要的模块化元件是外壳和法兰盖 - 均由灰铸铁或铸铁制成 - 可以承受高动态负载，因此对压力峰值和连续振动不敏感。外壳和法兰盖中的钢背上装有大表面尺寸、PTFE-Pb 涂层、青铜滑动轴承，支撑齿轮的微精磨轴承轴颈，该齿轮包括驱动轴轮和螺栓轮。为了实现*佳运行性能，齿轮的齿面由硬化钢制成，并经过研磨。

主动轴向间隙补偿功能对于高压泵肾型泵必不可少，该功能在压力板下实现。它具有液压加压压力场，可确保在每个工作压力下补偿轴向间隙。压力板设计用于与粘度无关的间隙补偿。这可确保每个操作点都具有高水平的容积和机械效率。NBR 或 FKM 密封件可用于满足由温度和/或介质引起的综合应用要求。这些泵非常适合液压油、发动机油、HEES 生物油和阻燃流体。

KRACHT External gear pumps KP 1 series 2, due to their structure (design principle) and the materials employed, are ideal for use under the most extreme operating conditions. Important modular elements are the housings and flanged covers - both made from grey cast iron or cast iron - can be highly loaded dynamically making them insensitive to pressure peaks and continuous vibrations. Large-surface-dimensioned, PTFE-Pb coated, bron ze plain bearings on steel backs in the housing and f langed cover support the micro-finish ground bearing journals of the gear, which comprises the drive-shaft wheel and bolt wheel. To realise optimum running pro perties, the tooth flanks of the gear, which are manu factured out of casehardening steel, are ground.

This function of the active axial-play compensation, in dispensable for high-pressure pump kidneys, is imple mented under the pressure plate. It has hydraulically pressurised pressure-fields, guaranteeing compensa tion of the axial play at every operating pressure. The pressure plates are designed for viscosity-indepen dent play-compensation. That ensures a high level of volumetric and mechanical efficiency at every ope rating point. NBR or FKM seals can be used to meet comprehensive application requirements caused by the temperature and/or media. These pumps are ideal for hydraulic oil, engine oil, HEES bio-oils and flame resistant fluids.

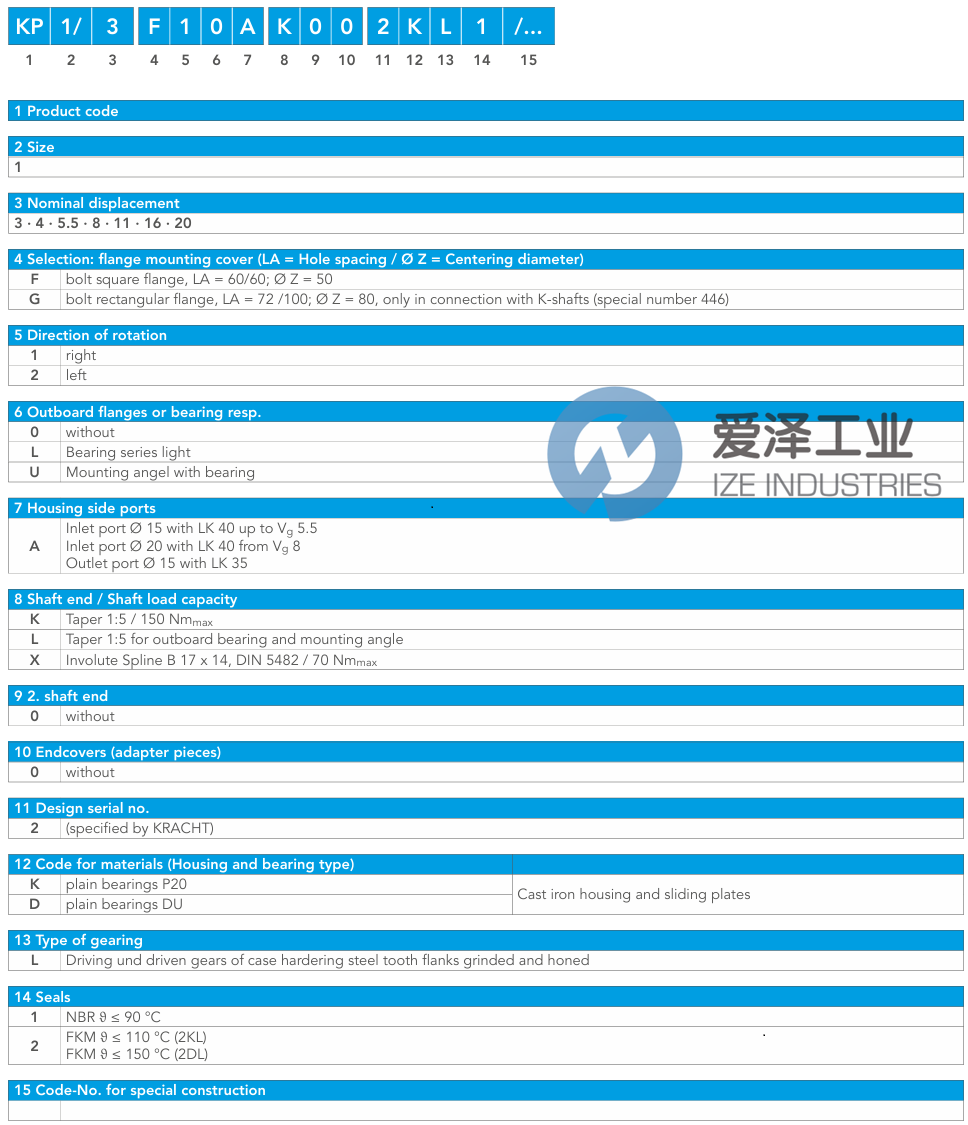

KRACHT齿轮泵KP1系列选型

KRACHT齿轮泵KP1系列其他常用型号：

KRACHT KP1/14 020A X0A 4NL1/290

KRACHT KP1/14 M20A KXF 4NL1/271

KRACHT KP1/16 G10A K0A 4NL1

KRACHT KP1/16G10AK0A4NL1

KRACHT KP1/22A10AK0A4NL1

KRACHT KP1/5.5 F10A K0A 4NL1

KRACHT KP1/8 G10A K0A 4NL1

KRACHT KP1/11F1LBX002KL2/179-ATEX

KRACHT PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于KRACHT齿轮泵KP1/11F1LBX002KL2/179-ATEX的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for KRACHT products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

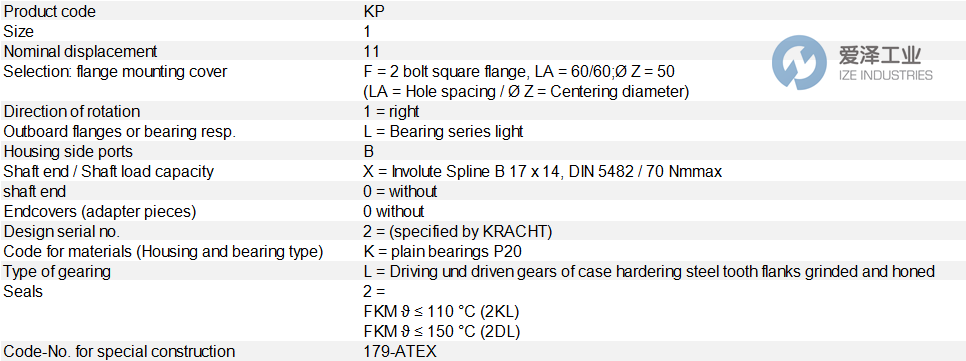

KRACHT齿轮泵KP1系列KP1/11F1LBX002KL2/179-ATEX技术参数及选型
