ARDUCAM相机模块B0304

ARDUCAM开发板制作了相机模块，这也是ARDUCAM公司名称的由来。

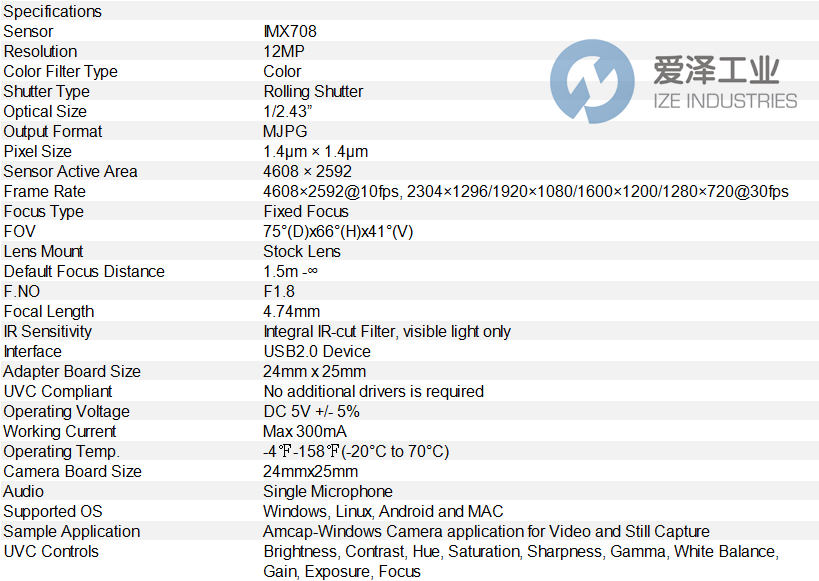

ARDUCAM摄像头模块B0304技术参数

ARDUCAM相机模块B0304产品介绍

目前大多数嵌入式摄像头采用的MIPI CSI接口虽然速度快、稳定，但兼容性和便捷性远不及兼容UVC协议的USB接口。而且在MIPI CSI接口的前提下，很多平台使用摄像头需要配套的驱动和软件，比如树莓派上的libcamera，Ubuntu上的V4L驱动等。

在树莓派HQ摄像头上适配UVC转接板，通过该转接板实现UVC协议的支持和通信。IMX708 UVC摄像头也是如此，对其进行了适配，这样就可以将其用作网络摄像头。

该摄像头配备75°(D)x66°(H)x41°(V)定焦镜头和板载音频。它兼容Windows、Linux、Android和MAC等。除了设备驱动程序之外，不需要安装任何其他驱动程序，这是一款真正方便的摄像头。

特点

• 兼容所有平台：采用 UVC 协议，兼容各种平台和操作系统，如 Windows、Linux、Mac、Android 等。

• 即插即用：只需安装 USB 设备驱动程序，无需根据平台添加其他驱动程序。安装完成后即可即插即用。

• 高质量图像：基于 SONY 12MP IMX708 图像传感器。*大分辨率：4608×2592。高分辨率可在更远的距离获得更清晰、更可识别的图像。

• 定焦：配备 66°（HFOV）定焦镜头。与自动对焦镜头相比，定焦镜头对焦速度更快，图像质量更稳定。

• 音频功能：为这款 USB 摄像头套件配备了支持高质量音频输入/输出的麦克风模块。

At present, the MIPI CSI interface used by most embedded cameras is high-speed and stable, but the compatibility and convenience are far less than the USB interface compatible with the UVC protocol. And under the premise of MIPI CSI interface, many platform to use the camera needs supporting drivers and software, such as libcamera on the Raspberry Pi, V4L driver on Ubuntu, etc.

The first attempt was to adapt the UVC adapter board on the Raspberry Pi HQ Camera, through which the UVC protocol support and communication can be realized. The same is true for the IMX708 UVC camera, which we adapted so you can use it as a webcam.

The camera is equipped with a 75°(D)x66°(H)x41°(V) Fixed Focus Lens and On-Board Audio. It is compatible with Windows, Linux, Android and MAC and so on. You don’t need to install any additional drivers other than the device driver, which is a truly convenient camera.

Features

• Compatible with All Platforms: Adopting UVC protocol, compatible with various platforms and operating systems, such as Windows, Linux, Mac, Android, etc.

• Plug and Play: Only the USB device driver needs to be installed, no additional drivers are needed depending on the platform. Just plug-and-play after the installation is completed.

• High-Quality Images: Based on SONY 12MP IMX708 Image Sensor. Max Resolution: 4608×2592. The high resolution allows you to get sharper and more recognizable images at a greater distance.

• Fixed Focus: Equipped with a 66°(HFOV) Fixed Focus Lens. Compared with the Autofocus Lens, the Fixed Focus Lens has a faster-focusing speed and more stable image quality.

• Audio Function: We have equipped this USB camera kit with a microphone module that supports High-Quality audio input/output.

ARDUCAM相机模块12MP系列其他常用型号：

ARDUCAM B0304

ARDUCAM B0433

ARDUCAM B0305

ARDUCAM B0196

ARDUCAM B0292
