MANTRACOURT信号调节器DSCUSB

MANTRACOURT为广泛的行业领域设计和制造范围广泛的应变电桥测量产品。该仪器专为称重传感器、应变计、压力传感器、扭矩传感器、流量传感器、温度传感器而设计，用于使用模拟、数字和无线技术进行信号调节、显示和控制。

MANTRACOURT核心产品范围包括应变信号调节器、模拟信号调节器、数字指示器、应变数字转换器、无线遥测系统、称重传感器称重指示器和USB 数据采集单元。

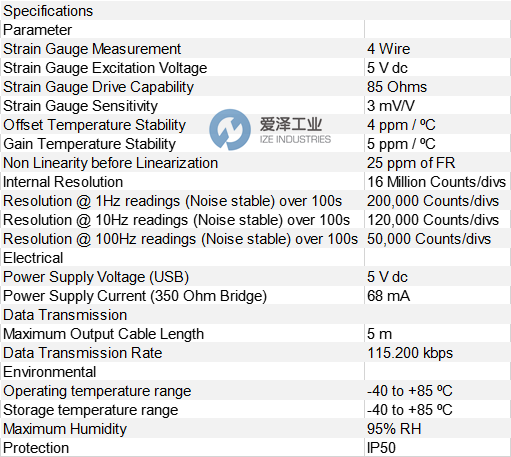

MANTRACOURT信号调节器DSCUSB技术参数

MANTRACOURT信号调节器DSCUSB产品介绍

DSCUSB 应变计到 USB 转换器是一款紧凑型高性能应变计数字信号调理器，具有 USB 连接功能，旨在满足需要高精度测量重复性的应用。

坚固的 ABS IP50 外壳使得该 USB 称重传感器转换器适用于各种环境。只需将 DSCUSB 插入 PC，数据即可从大多数应变计桥输入传感器中提取，并由软件获取，这些软件支持数据处理，无需使用放大器、滤波器和万用表。该设备无需额外电源，电源直接由 USB 总线提供。

应变计到 USB 转换器 (DSCUSB) 适用于一对一接口，但您可以通过合适的集线器将多个 DSCUSB 连接到同一个 PC/笔记本电脑。

该设备非常适合所有基于应变计桥的传感器，包括负载、重量、力、扭矩、压力和位移，简单地插入 PC，即可通过附带软件获取和处理数据。

DSCUSB USB 称重传感器信号转换器的典型应用包括需要简易传感器连接的桌面环境，如测试与测量、研发和实验室环境。

可选的温度传感器模块 (DTEMP) 可用于对测量进行先进的 5 点温度补偿。

USB 称重传感器信号转换器也可作为 OEM PCB 模块提供，更多信息请参阅产品说明书。此外，还有 4.5mV/V 版本的设备可供选择。

The DSCUSB strain gauge to USB converter is a compact, high performance strain gauge digital signal conditioner with USB connectivity aimed at applications which require high-accuracy measurement repeatability.

A rugged ABS IP50 enclosure makes this USB load cell converter suitable for all environments. Simply by plugging the DSCUSB into a PC, data can be extracted from most strain gauge bridge input sensors and acquired by software which allows data manipulation removing the need for amplifiers, filters & multimeters. No additional power supply is required as the power is drawn from the USB bus.

The strain gauge to USB converter (DSCUSB) is ideal for one to one interface, however you can connect multiple DSCUSB's to the same PC/Laptop via a suitable hub

Ideal for all strain gauge bridge based sensors including load, weight, force, torque, pressure & displacement, the device simply plugs into your PC where data can be acquired and manipulated by accompanying software.

Typical applications for the DSCUSB USB load cell signal converter will be those requiring simple sensor connectivity in desk top settings such as test & measurement, R&D and laboratory environments.

An optional temperature sensor module (DTEMP) is available which will enable an advanced 5-point temperature compensation of measurements.

The USB load cell signal converter is also available as OEM pcb modules - please see product sheet for more information. A 4.5mV/V version of this device is also available.

MANTRACOURT信号调节器其他常用型号：

MANTRACOURT DSCUSB

MANTRACOURT DSCUSBOEM1

MANTRACOURT DSCUSBOEM

MANTRACOURT DSCUSB-A .

MANTRACOURT DSCUSBOEM1-A

MANTRACOURT DSCUSBOEM-A

MANTRACOURT DSCUSB-UL

MANTRACOURT DSCUSB-DIN

MANTRACOURT DTEMP

MANTRACOURT Signal Conditioner NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于MANTRACOURT信号调节器DSCUSB的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。

If you have any question for MANTRACOURT products, please feel free to dial 0086-21-3100 6702/ send request email to / browse our website:www.ize-industries.com.

MANTRACOURT信号调节器DSCUSB技术参数及介绍
