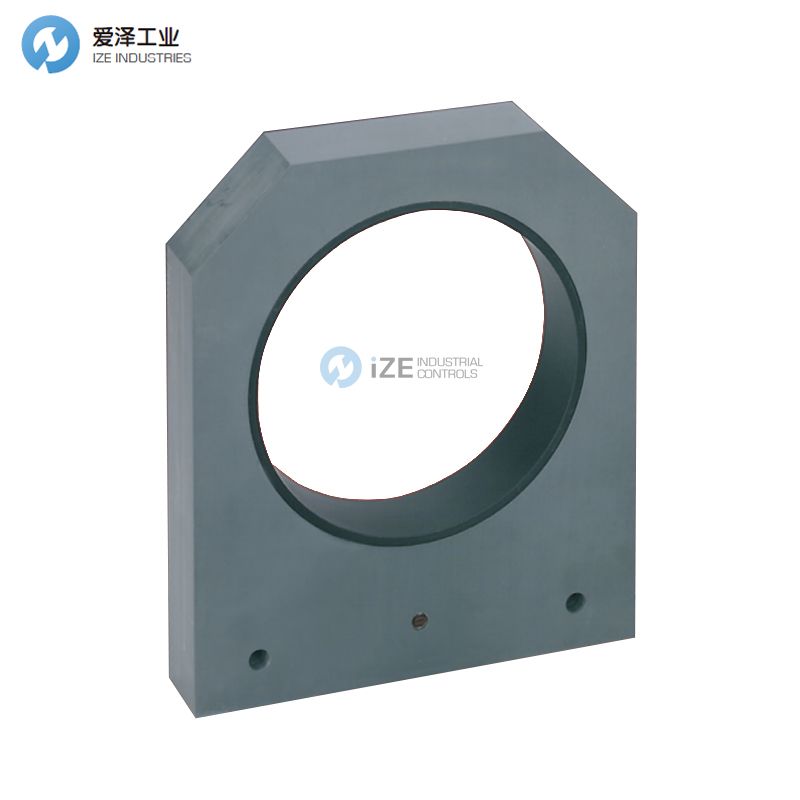

AECO传感器SIA100-CE

AECO成立于1987年意大利，AECO更多的专注于高质量的产品，产品也遍布意大利各个地区和全球50多个国家。

主要经营产品有：

AECO位置传感器

AECO电平控制

AECO接近开关

AECO传感器SIA100-CE产品参数

AECO传感器SIA100-CE产品介绍

感应环传感器可以检测通过位于环内感应场的金属物体，包括非铁磁性金属。它们特别适合检测小金属部件、检查断线、供应管道中的堵塞和生产过程中的弹射，在计件、监控及金属物体的计量中应用广泛。

传感器的输出信号可用于控制、监控、报告和处理各种操作。

传感器提供的内环直径有5-12-15-22-25-30-44-63和100毫米可选，并具有检测直径1到12毫米球体（目标）*小的能力。所有NPN和PNP放大环传感器都配有标准的100毫秒脉冲保持时间，可检测快速通过感应环敏感区域的金属物体。非放大的Namur型号没有这个时间，但可以与Aeco ALTP可编程定时放大器结合使用，延时时间可调从30毫秒至500秒。

环形传感器的外壳由塑料制成，电气连接根据型号不同可选配电缆或M8和M12连接器。

Inductive ring sensors detect the presence of metal objects, including non-ferromagnetic metals, which pass through the sensing field located inside the ring. They are particularly suitable for detecting small metal parts, checking for broken wire, clogging in supply pipes and ejection during production, counting pieces, and monitoring and dosing metal objects.

The output signal of the ring sensors can be used to control, monitor, report and process various operations.

The sensors are available with an internal ring diameter measuring 5-12-15-22-25-30-44-63 and 100mm and feature a detection capacity for spheres (targets) measuring 1 to 12mm minimum. All NPN and PNP amplified ring sensors are provided with a standard impulse retention time of 100ms that detects metal objects passing rapidly through the sensitive area of the inductive ring. The non-amplified Namur models are not provided with this time, but can be combined with an Aeco ALTP programmable timed amplifier with an adjustable delay between 30ms and 500sec.

The ring sensor's housing is made of plastic and the electrical attachments are available with a cable or with M8 and M12 connectors, depending on the models.

AECO传感器其他常见型号：

AECO SIA100-CE

AECO SIA100-NE

AECO SIA100-NE H

AECO SIA100-CE NPN NO+NC R

AECO SIA100-CE NPN NO+NC H R

AECO SIA100-CE PNP NO+NC R

AECO SIA100-CE PNP NO+NC H R

AECO SIA100-NE LC5

AECO SIA100-NE LC10

AECO SIA100-CE NPN NO+NC R LC5

AECO SIA100-CE NPN NO+NC R LC10

AECO SIA100-CE PNP NO+NC R LC5

AECO SIA100-CE PNP NO+NC R LC10

AECO RECTANGULAR INDUCTIVE SENSORS NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于AECO传感器SIA100-CE的疑问，请随时与我们沟通（ ）。我们将尽全力解决您的问题。
